ELA100 Rev0604
34
GMAC Harness Connections
Interface Information
An adapter and cable assembly is needed to interface the ELA109 with GMAC
engines. There are two available:
ET-902-HA for 2002 and Earlier Model Engines
ET-902-HB for 2003 Engines
10 Pin
Packard
Connectors
+12 (24)
VDC
Ignition Key
GMAC Adapter and
Cable Assembly
RED
BLK
YEL
12
12
12
12
12
+12 (24) VDC
Pump Engaged
Interlock
GND
To Cab
Foot
Throttle
To Engine
ECM

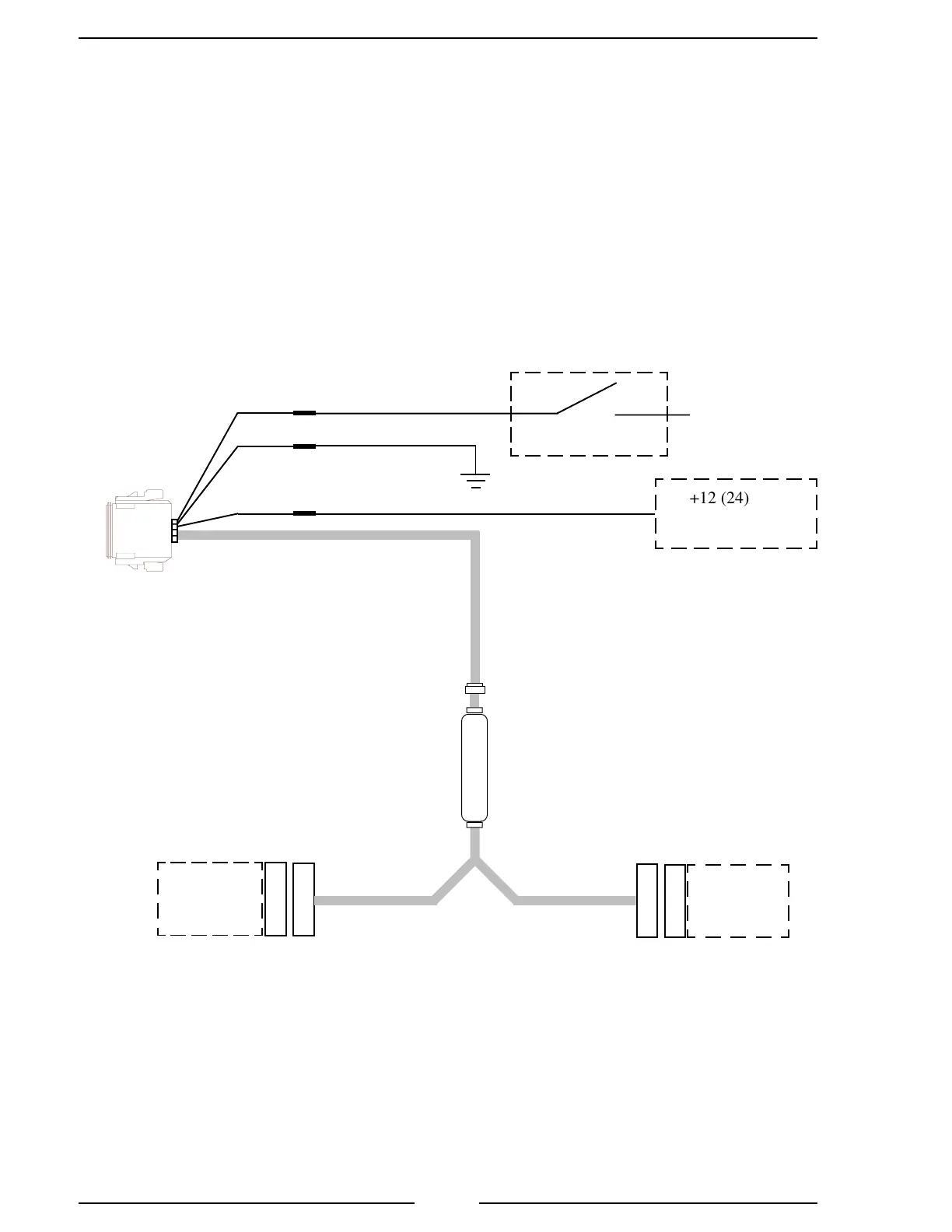

Figure 13. GMAC ELA109 Wiring
(Sheet 1 of 2)
Do not mount in the
engine compartment
