ELA100 Rev0604
27
+12 (24)
VDC
Ignition Key
GND
8-Pin Cable
(Refer to
Figure 3 )
RED
BLK
ORG
WHT
GRN
YEL
BLU
BRN
12
12
12
12
12
+12 (24) VDC
Pump Engaged
Interlock
Cab Foot
Throttle
Cab Foot
Throttle
Connector
To Engine
ECM
Engine Control Signal
(0.6 to 2.7 volts)
Signal Return
5 V Reference
Idle Validation
Note: Use a plug and receptacle on the
Engine Control Signal wire so the ends
can be reconnected if the Throttlexcel is
removed.

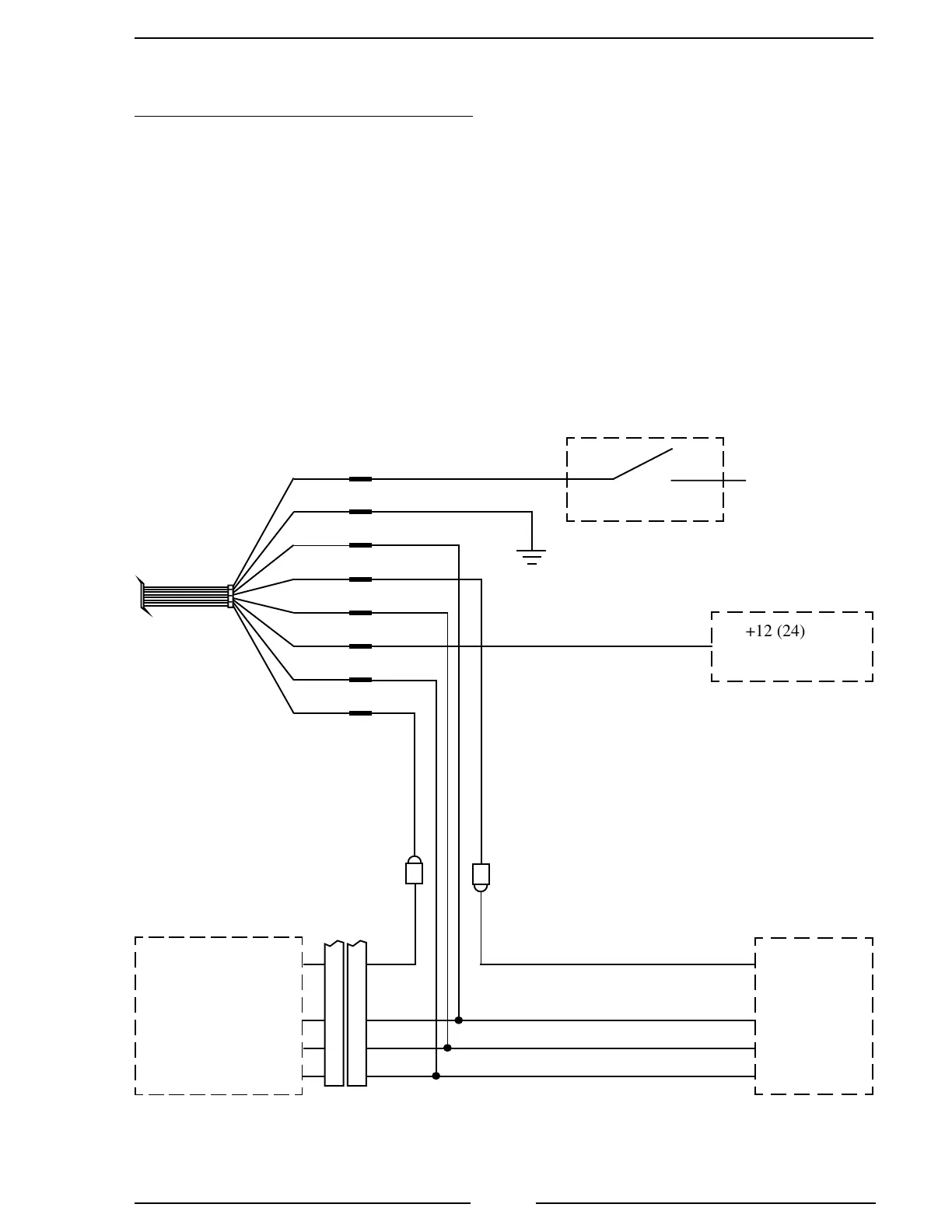

Figure 9. Ford 7.3L ELA106-A Wiring
Ford Harness Connections
7.3 L Power Stroke Engine Interface
The 8-Pin cable needs to be wired to the cab foot throttle harness. Use a voltmeter
to determine which pins are 5 V Reference, Idle Validation, and Engine Control Signal.
Idle Validation will be at ground. When the foot pedal is pressed it will rise to
12 VDC.
Engine Control Signal will be 0.6 volts at idle and rise to approximately 2.7
volts as the foot pedal is pressed.
