3. Connect the other end of the cable to the Remote Control
Panel or LINK instrument.
Refer to the Remote Control Panel or LINK instrument
Owner’s Manual for more information and operation instruc-
tions.
Step 7: Install the Temperature Sensitive
Charging (TSC) sensor, if you are using it

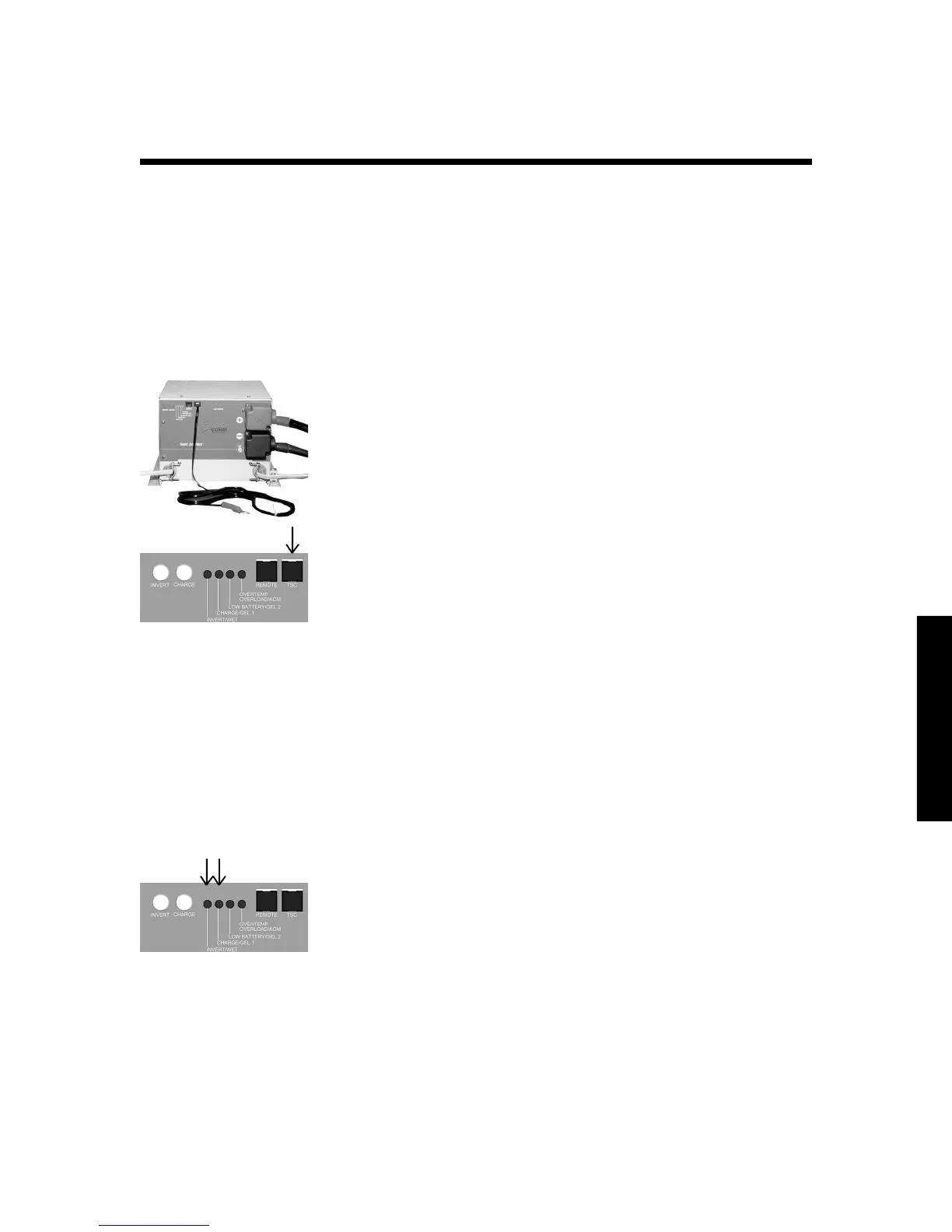

The TSC sensor if a black, 15 foot cable. It has a modular
phone plug on one end (RJ11) and an insulated, ring terminal
on the other end.
1. Connect the ring terminal end of the cable to the a battery
post in the Freedom Inverter/Charger’s battery bank.
2. Route the TSC sensor cable to the Freedom Inverter/
Charger.
3. Plug the end of the RJ11 cable into the TSC jack on the
front of the unit.
Step 8: Check over your unit to make sure it is
properly installed
Make sure all wiring conforms to local and the NEC regula-
tions. If you have any doubts, consult a qualified electrician.
Do not apply shore power or generator power without per-
forming the following steps:
Check the Freedom Inverter/Charger
1. Check to make sure that both the inverter and the charger
are off, i.e., the INVERT and the CHARGE LEDs should
not be illuminated. If you are using a remote control, check
the panel to make sure both are off.
Check your batteries
1. Check battery polarity. If the unit has been connected to
the battery with reverse polarity, it is damaged.
2. Check the battery voltage and ensure it is within proper
voltage range, 10.5 to 15.5 volts DC.
