Installation
48
AC Output 2
AC Output 1
AC Input 1
12 VDC Battery Bank
Class T
Fuse

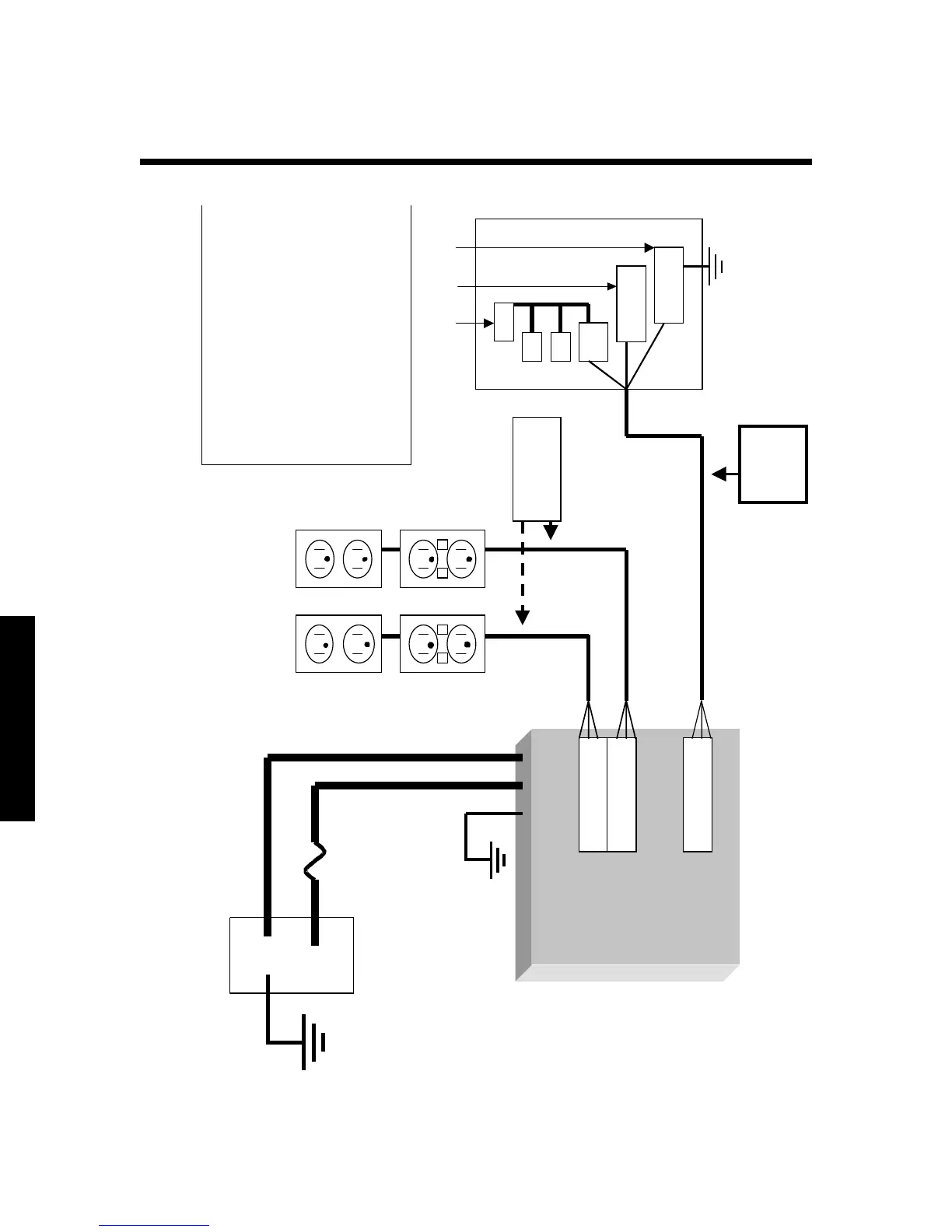

Freedom 458 Installation Option 5
Freedom 458 Model 15 S/D, 20 S/D
Sin
le Input/ Dual Output
30 Amp Transfer that Power Share
with the Charger.
15 or 20 S/D Models available with
15/15, 15/20 or 20/20 Amp branch
rated circuit breakers.
**Always consult Local and National
Electrical Codes for proper wire size prior
to installation
Freedom 458
Inverter/Char
er
10/3
AWG
Wire**
-
+
+
-
Neutral Bus
Ground Bus
30
From Shore or Generator
L1 Neu Gnd
Main AC Panel
15 or 20 Amp
Branch Circuit Outlets
15 A = min 14/3 AWG wire**
20 A = min 12/3 AWG wire**
12 or 14
AWG Wire**
AC Wire Colors
Hot = Black
Neutral = White
Ground = Green/bare
GFCI *
GFCI *
* Always consult National Electrical Codes
GFCI installation requirements.
Main
To Next Page
