Section 2
5
Model 9002
Instrument Description
Section 2
Instrument Description
2.1 - Front and Rear Panel Controls
Control and system I/O is accomplished on the front panel of the system. In the remote mode, control is transferred
to an interconnected controller. Figures 2.1a and 2.1b show the front and rear panels, respectively.

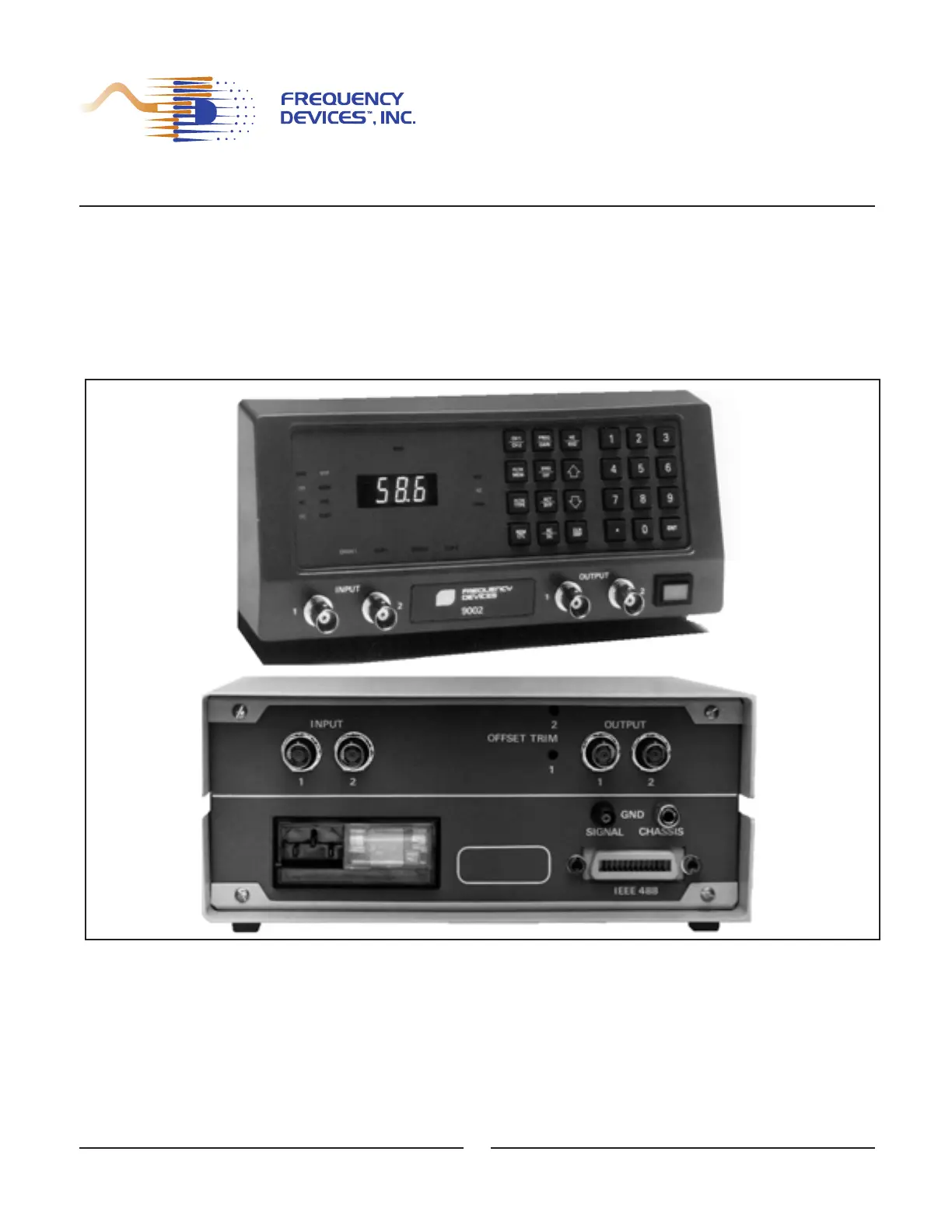

Upper Figure 2.1a Front Panel Lower Figure 2.1b Rear Panel
2.2 - Input/Output Characteristics
The Model 9002 is contained in a single electronic chassis and is designed to interface directly with a remote
controller fitted with an IEEE-488 interface card. Connection to the controller is via an IEEE connector on the rear
panel as shown in Figure 2.1b. A standard IEEE connector with appropriate callouts is shown in Figure 2.2.
