FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 CS (APR 08)
COMMUNICATIONS SETUP Page 29

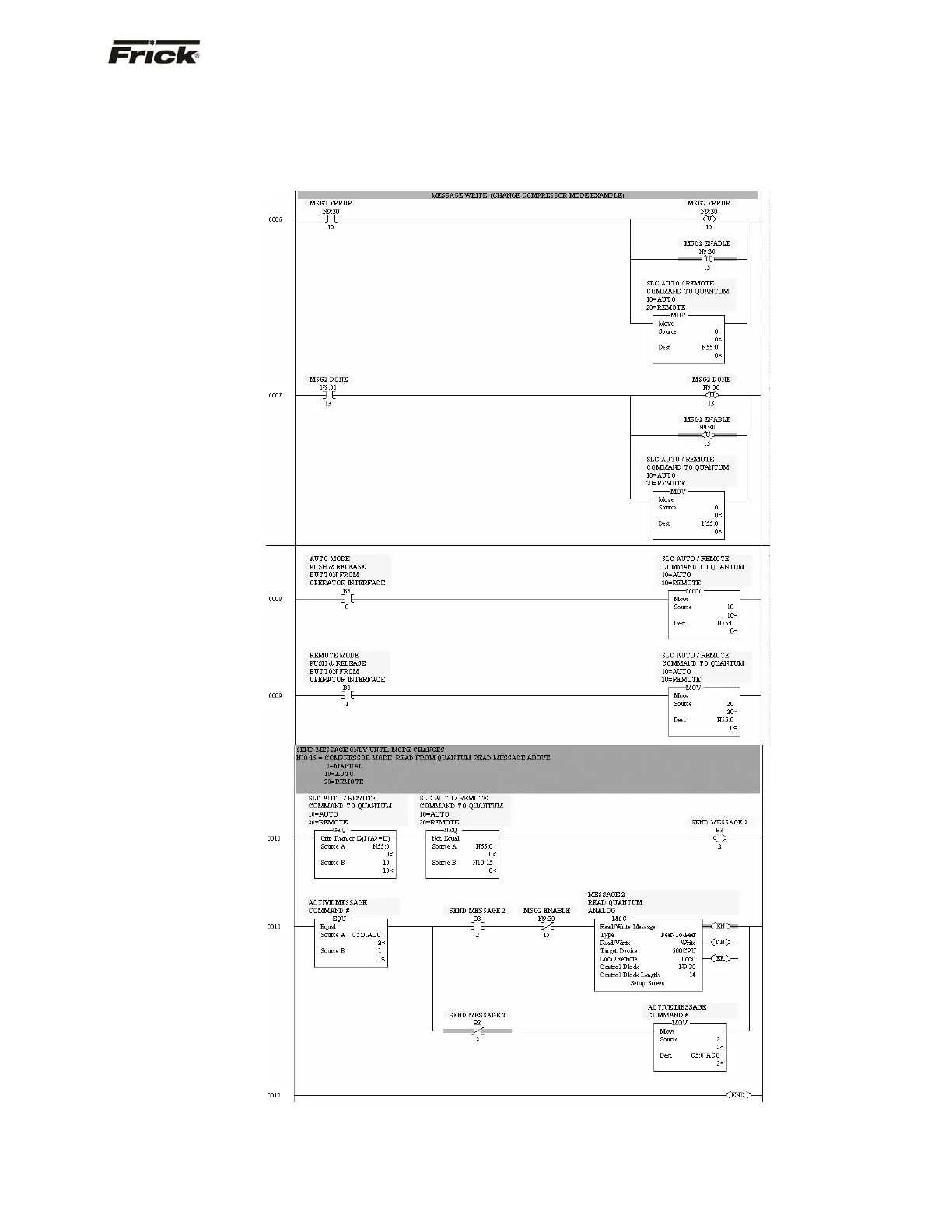

Message Write Logic
Use the following logic to write data from the Quantum™
panel. To write more data or to write data to several
compressors, copy / paste these rungs as needed then
modify the control block and setup screen parameters
accordingly.
