S90-010 CS (APR 08) FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL
Page 30 COMMUNICATIONS SETUP

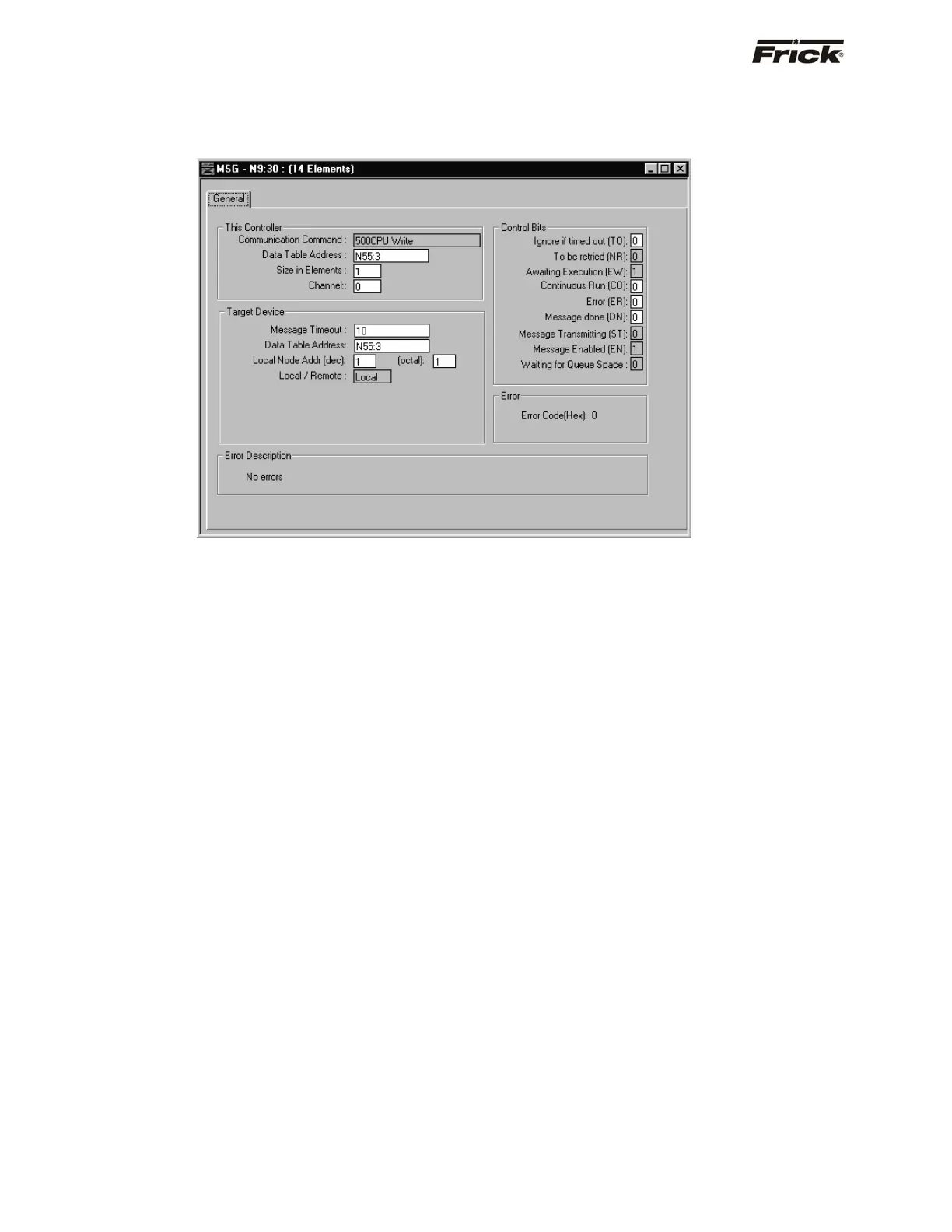

Message Write Setup Screen
The following setup screen is programmed to write the
compressor mode to the Quantum™ (ID#1) N55:3 data file
from the SLC500’s N55:3 data file.
• This Controller: SLC500
• Data Table Address: Data file location in the
SLC500
• Size in Elements: # of data file to read
• Channel: Port location on the SLC processor
(Channel 0 is the RS232 port)
• Target Device: Quantum™ Panel
• Data Table Address: Data file location in the
Quantum™ controller.
• Local Node: Quantum™ ID# (Octal)
