VRP
®

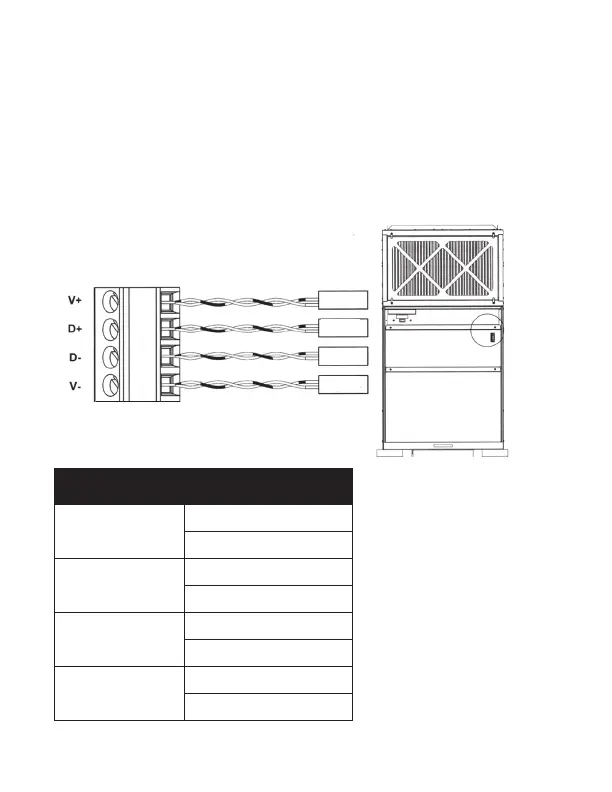

Wiring Installation (Cat6 to VRP
®
)
• Strip 2” o󰀨 outer sheath of each end of Cat6 Wire (not supplied);
• Twist the exposed wires as indicated below;
• Connect one end of Cat6 Wire to the appropriate VRP
®
terminals as shown
in wiring table below.
Blue
White/Brown
White/Orange
White/Green
Green
Orange
White/Blue
Brown
Blue
White/Brown
Orange
Green
White/Orange
White/Green
White/Blue
Brown
VRP
Terminal
Cat6 Wire Color
V+
Blue
White/Brown
D+
White/Orange
White/Green
D-
Green
Orange
V-
White/Blue
Brown
Wall Controller Wiring Installation
