Safety
Page 20
B0600008_US v
2
2.4 Safety devices
5

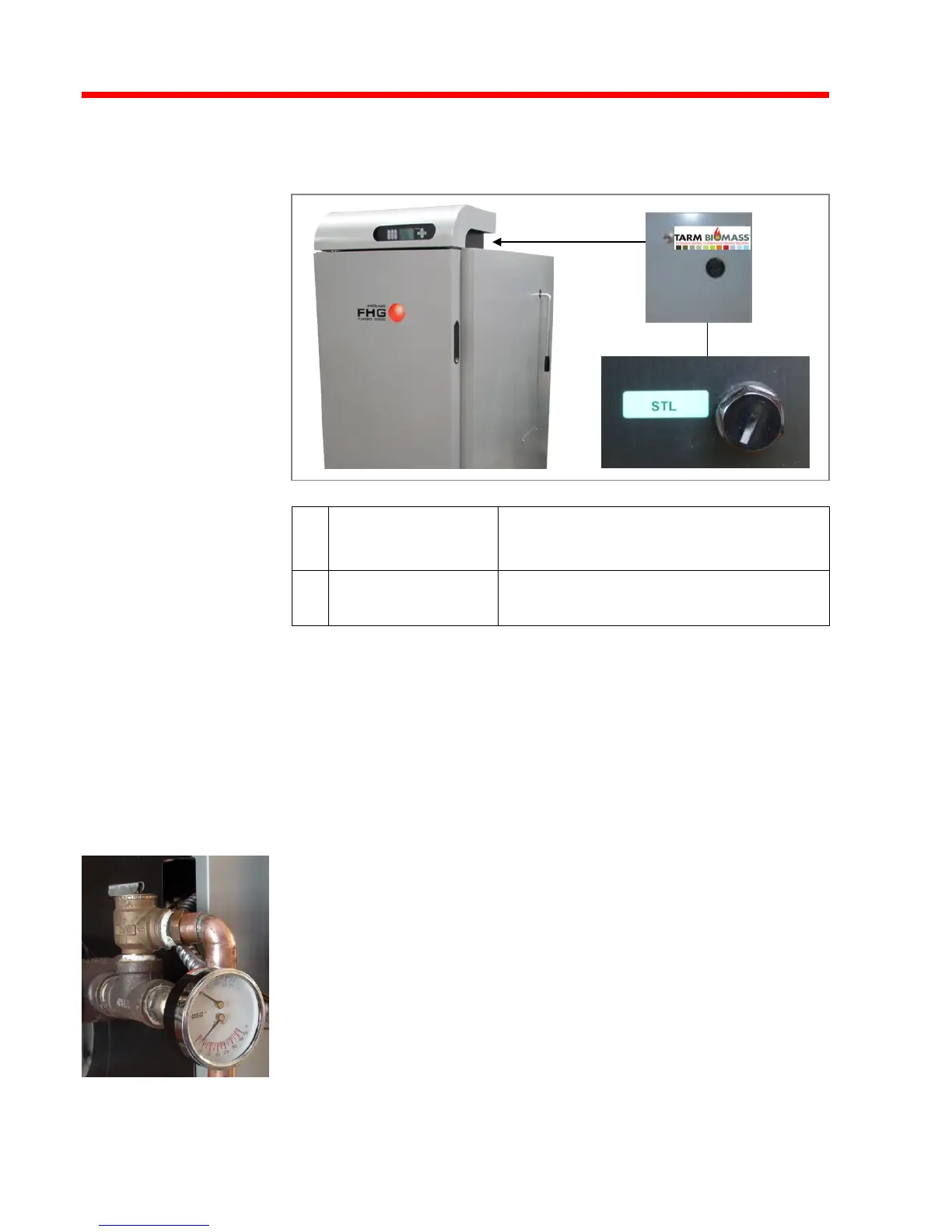

Main switch
For shutting down the entire system
 All components are switched off and
powered down
6
Overheat Thermostat
(Safety Temperature
Limit Switch – STL)
 See below
2.4.1 Devices for Preventing the Boiler from overheating
The FHG comes with safety systems to prevent the
following:
• Pressure in the boiler exceeding 30 psi (over pressure)
• Boiler water temperature exceeding 212ºF (100º C)
Pressure Relief Valve
Protection against over-heating/ excessive pressure:
When the system pressure reaches a maximum of 30 psi (2 bar), the
Pressure Relief Valve opens and the heating water is released in the form
of steam.
