www.froling.com B0600008_US
4
4 Boiler Control System Lambdatronic S 3200
This chapter contains information about use, control parameters,
troubleshooting and the electrical connections of the Boiler Control
System Lambdatronic S 3200. All parameters, which are visible at
the service technician operator level, are shown.
The parameters at Owner’s level are shown with a grey background!
4.1 Overview of the Basic Functions

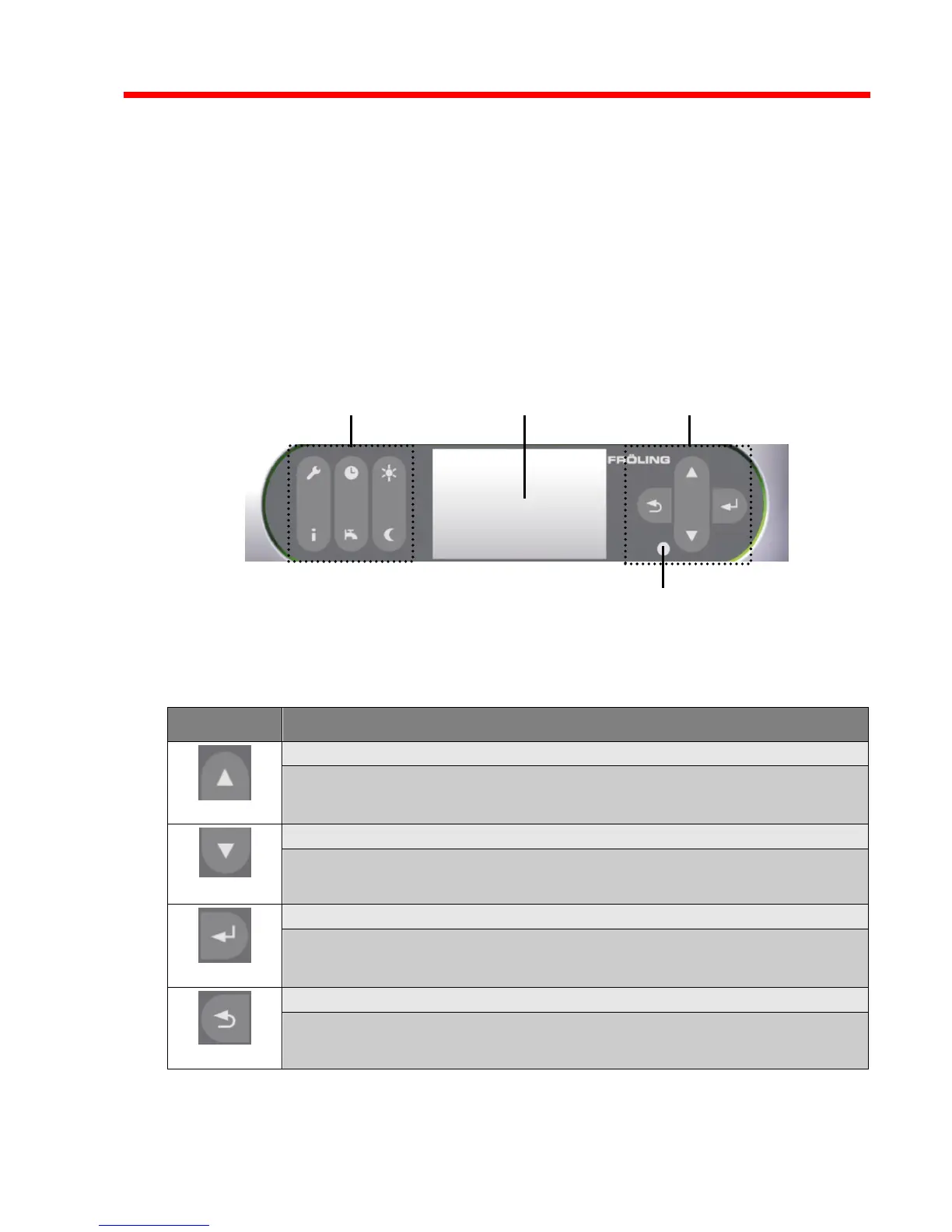

4.1.1 Control keys and Display
Function Keys
Graphical Display
Navigation Keys
Status LED
Navigation Keys
The navigation keys are for scrolling in the menu and changing
parameter values
Key
Function for ..
UP arrow
Navigation: Move up in the menu
Parameter change: Short keystroke: Increase value
Long keystroke: Increase value in steps of 10
Long keystroke (> 10 sec): Increase value in steps of 100
DOWN arrow
Navigation: Move down in the menu
Parameter change: Short keystroke: Decrease value
Long keystroke: Decrease value in steps of 10
Long keystroke (> 10 sec): Decrease value in steps of 100
Enter key
Navigation: Go to selected menu
Parameter change: Short keystroke: Unlock parameter for editing or
save parameter value
Back key
Navigation: Go back to higher menu
Parameter change: Short keystroke: Do not save parameter value
Long keystroke: Back to Basic Display without saving
