Product overview
Page 8
B0600008_US v
1

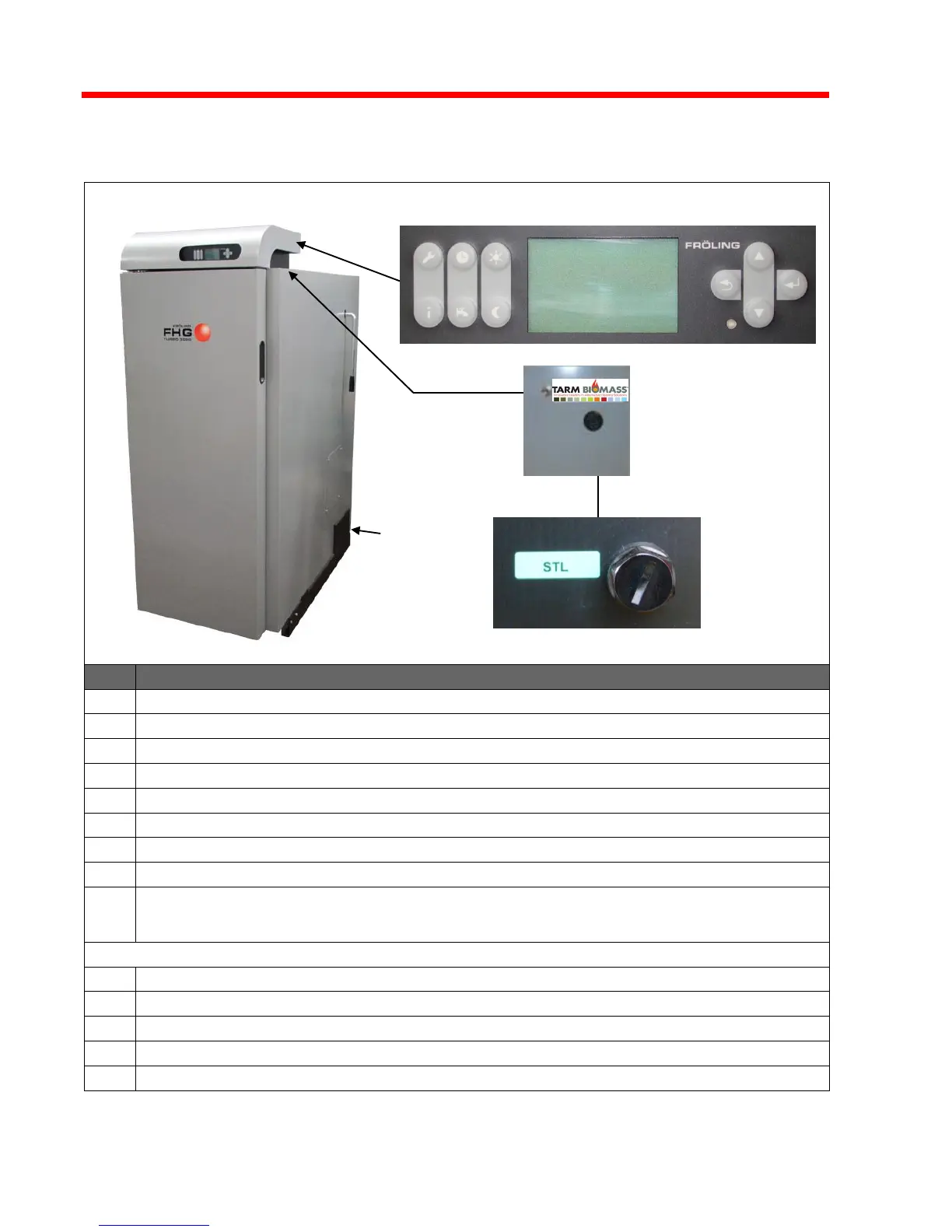

1 Product overview
Pos.
Component
1
FHG Wood-Fired Central Heating Boiler
2
Boiler Control System Lambdatronic S3200
3
Ash-Pit Cover
4
Lever for Heat Exchanger Cleaning System
5
Main Switch (Located on side box)
6
Overheat Thermostat (Safety Temperature Limit Switch - STL)
7
Control Panel of Boiler Control System Lambdatronic S 3200
7.1
Large graphical display to show operating modes, states of components and parameters
7.2
Status LED (operating status): - green light flashing slowly: boiler activated
- green light flashing quickly: boiler deactivated
- red light flashing: error
Navigation keys for navigation within the menus and to set parameter values:
7.3
UP arrow
7.4
DOWN arrow
7.5
Enter key
7.6
Back key
7.7
Function keys for selection of individual boiler functions or heating modes directly
1
2
7
4
3
5
6
7.1
7.2
7.6
7.5
7.4
7.3
7.7
