Froling FHG User Manual

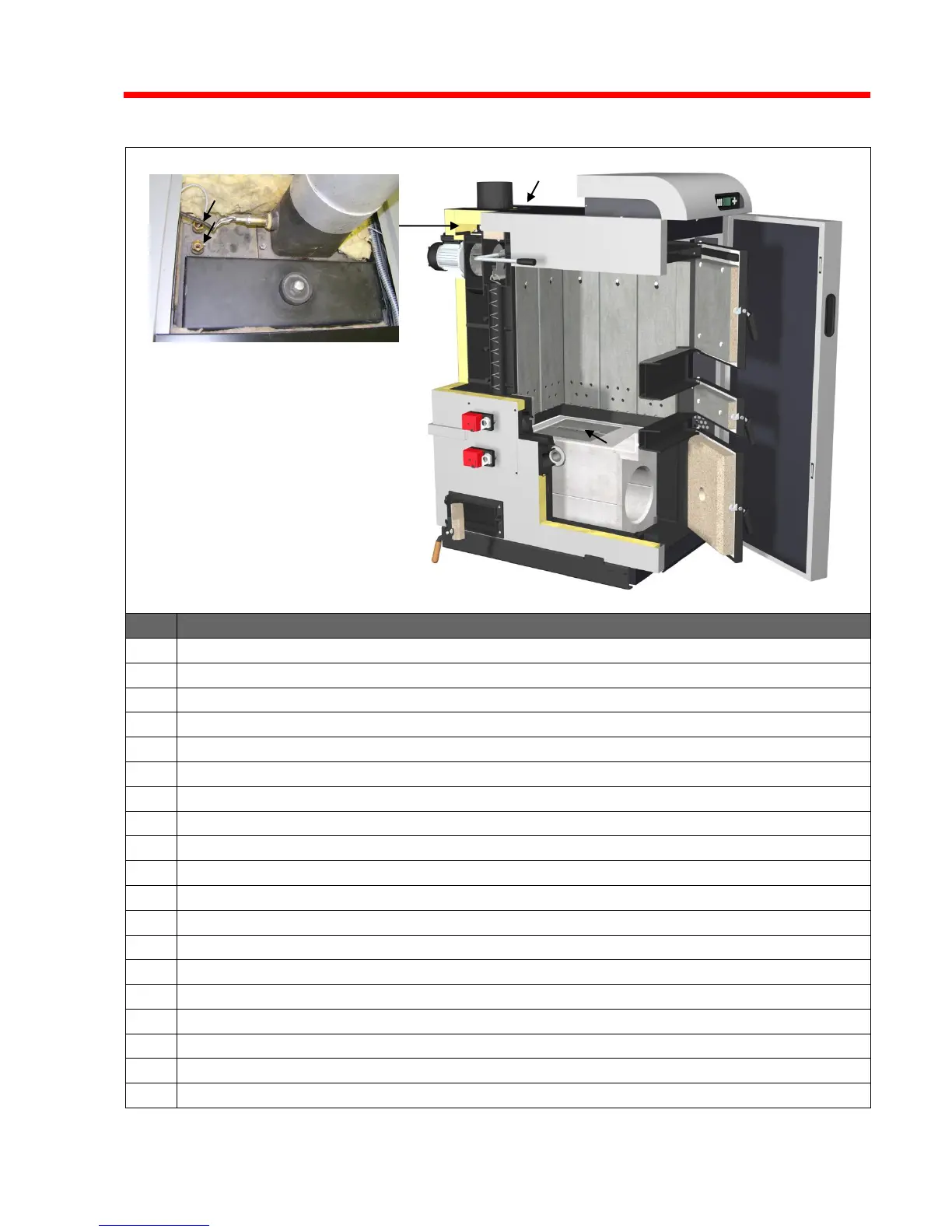

Product overview
Froling GmbH, Industriestraße 12, 4710 Grieskirchen, AUSTRIA Page 9
www.froling.com B0600008_US
1
Pos.
Component
8
Insulation Door
9
Fuel Loading Chamber Door
10
Ignition Door
11
Combustion Chamber Door
12
Ash-Pit Door
13
Heat Exchanger Insulation Cover
14
Heat Exchanger Cover
15
Fuel Loading Chamber
16
Combustion Chamber
17
Flame Slot
18
Smoke Extraction Duct
19
Primary Air Damper Actuator
20
Secondary Air Damper Actuator
21
Heat Exchanger
22
Induced Draft Fan (ID Fan)
23
Flue Gas Connector
24
Lambda Probe
25
Boiler Sensor and Sensor of Overheat Thermostat (position 6)
26
Overheat aquastat well
8
9
10
11
15
16
17
12
14
13
20
19
21
22
23
24
25
18
26

Froling FHG Specifications

General

Brand	Froling
Model	FHG
Category	Boiler
Language	English
