Froling FHG User Manual

Boiler Control System Lambdatronic S 3200
Page 32
B0600008_US v
4
Status LED
The status LED shows the operating status of the system:
- green light flashing slowly: boiler activated
- green light flashing quickly: boiler deactivated
- red light flashing: error

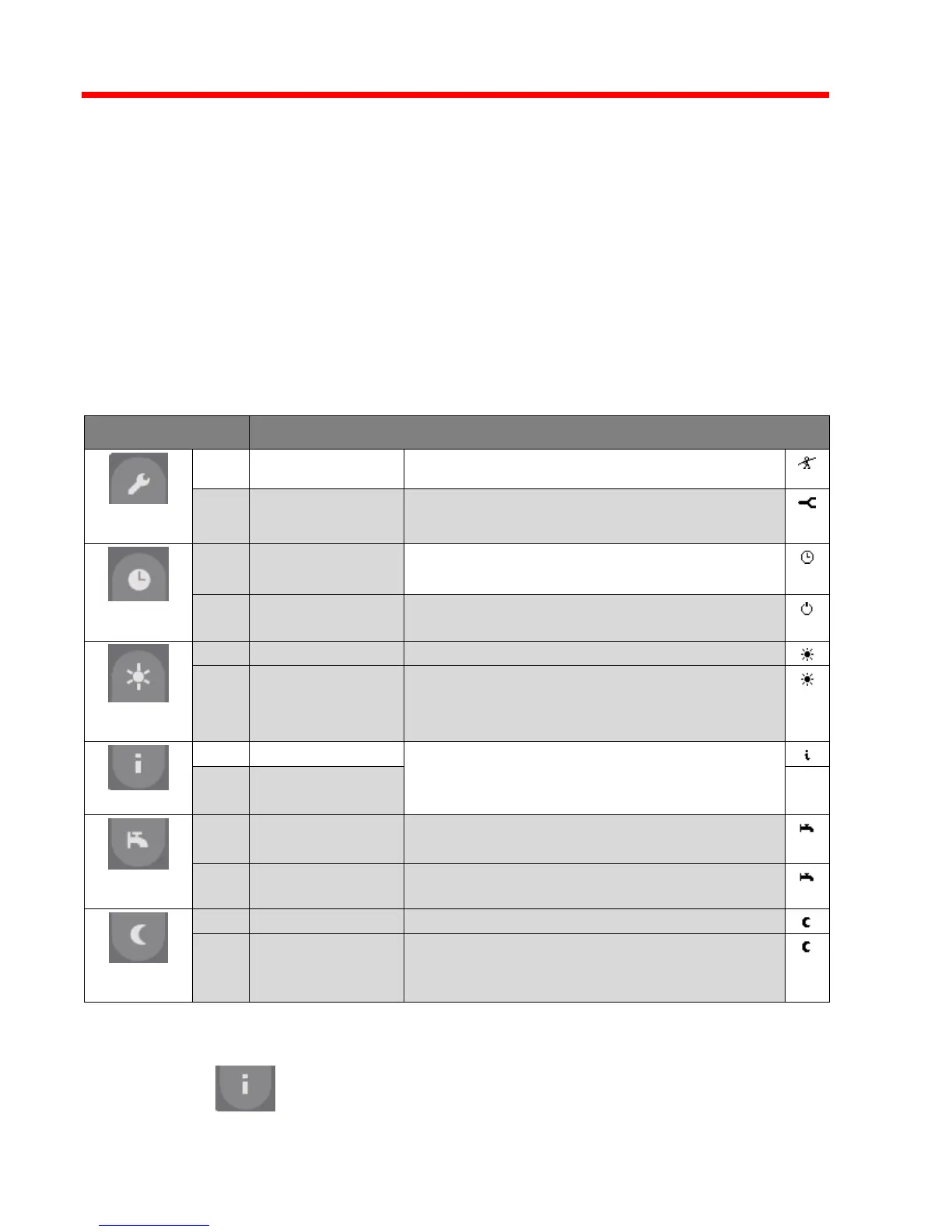

Function Keys
It should always be noted that most function keys of the Lambdatronic
have dual functions. Different functions can be called with long or short
keystrokes, using the following definitions of keystroke duration:
Short keystroke ........ < 1 sec
Long keystroke ........ > 4 sec
Keystroke
Function / Symbol in status line
Service
Program
Short
Chimney sweep
System is operated for 30 minutes with rated load
To exit this function: Use “Automatic Program” below
Long
Service operation
Function not used
Automatic
Program
Short
Automatic
(On)
Function not used (exit other functions only)
Long
Off
Function not used
Party
Program
Short
Party operation
Function not used
Long
Extra heating
Function not used
Info
Short
Display info text
Query / Information text on menu points or errors
To exit this function: Use “Back key” above
Long
No function
DHW tank-
Program
Short
Extra loading
Function not used
Long
Summer operation
Function not used
Drawdown
Program
Short
Drawdown
Function not used
Long
Continuous draw-
down
Function not used
Info Key
The info key can be pressed at any time and always shows a text win-
dow, with information about the current menu point or the currently
pending error. Error messages always have the highest priority.
