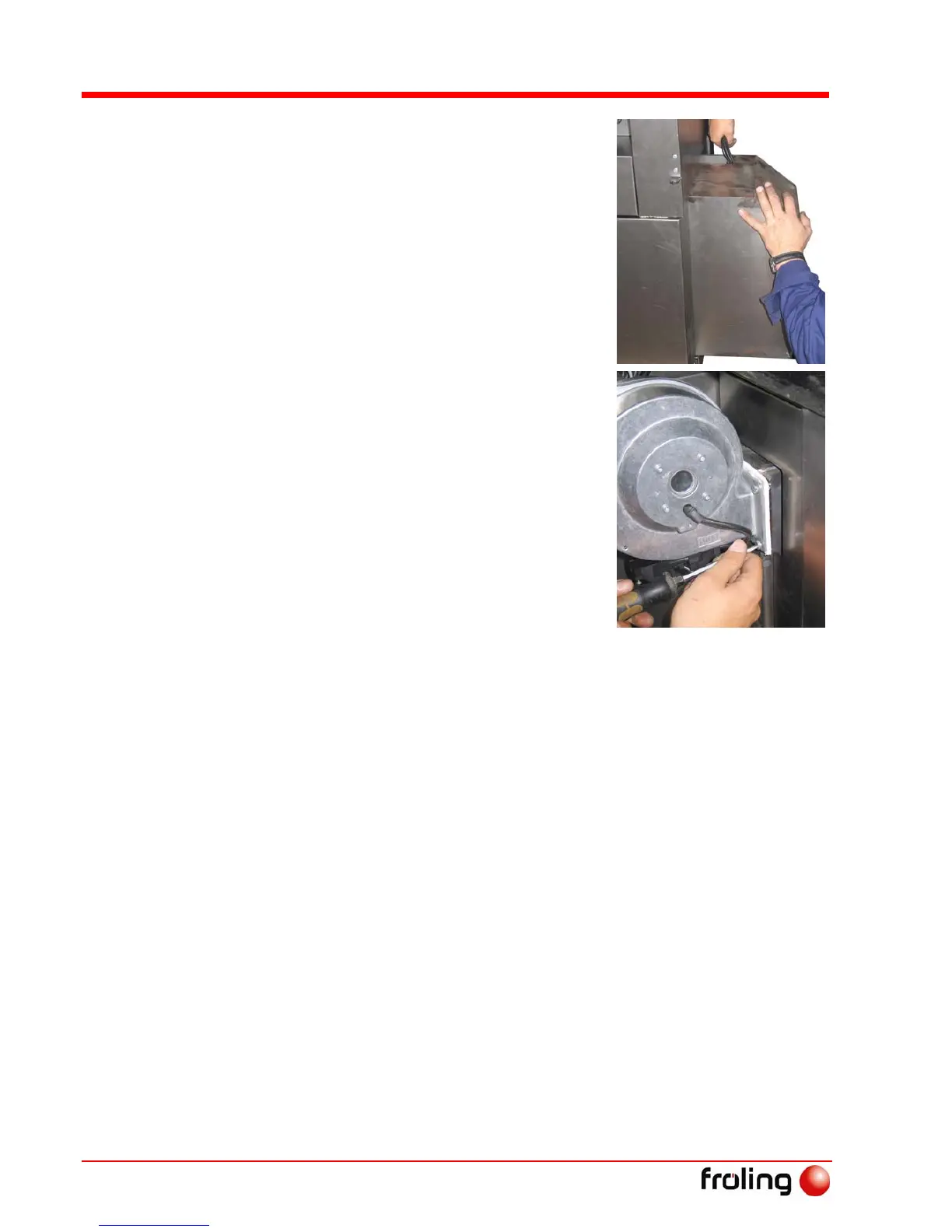

Installation
Assembly work
Page 18
M1010108_en
s
3
U
Attach the cover on the grate shaft
side
Bundle the motor cables and
thread them through the opening
in the cover
TIP: Tie the cables of the
individual units to
a cable harness
using cable ties
U
Fit combustion air blower fan with
seal to flange
17
19
Table of Contents
Default Chapter
4
Table of Contents
4
1 General Information
6
Notes on Standards
6
Design Information
7
Approval and Obligation to Report
7
Requirements for Central Heating Water
7
Ventilation of Boiler Room
7
Installing the Heating System / Standards
8
Combination with Storage Tank
8
Return Feed Lift
8
Chimney Connection/Chimney System
9
Draught Limiter
9
Boiler Data for Constructing the Flue Gas System
9
2 Technology
10
Turbomatic TMC 28-55 Dimensions
10
Components and Connections
11
Technical Specifications
12
Test Data for Operation with Wood Chips
12
Test Data for Operation with Pellets
13
3 Installation
14
Transport
14
Positioning
14
Temporary Storage
14
Setting up in the Boiler Room
14
Removing the Boiler from the Pallet
14
Moving the Boiler in the Boiler Room
14
Minimum Distances in the Boiler Room
15
General Information for Boiler Room
15
Assembly Work
16
Installing the Chamber in the Boiler
16
Installing the Stoker
19
Installing the Burn Back Flap Drive (Only with Burn Back Flap)
20
Installing the Induced Draught Fan
21
Installing the WOS Drive
22
Fitting the Automatic Heat Exchanger Ash Removal (Optional)
23
Conversion for Ashcan on Right
23
Assembly Work on Boiler
24
Installing the Combustion Chamber Overpressure Sensor
26
Fitting Switch Cabinet and Cable Ducts
26
Electrical Connection
28
Laying the Cable
28
Connecting the Thermal Discharge Safety Device
29
Thermal Discharge Safety Device Sensor
29
4 Initial Startup / Decommissioning
30
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Froling Turbomatic TMC 28-55 and is the answer not in the manual?
Ask a question
Froling Turbomatic TMC 28-55 Specifications
