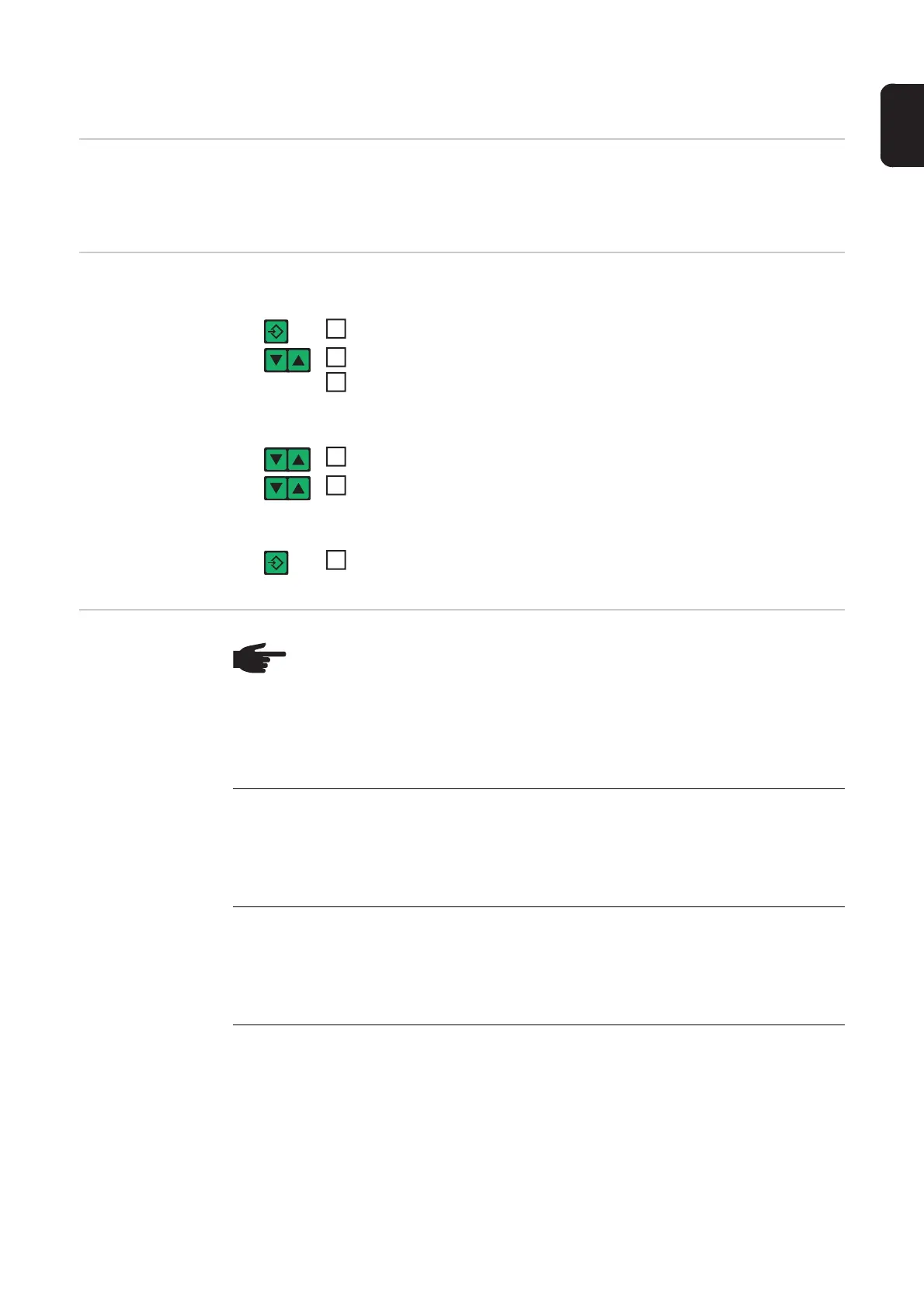

Setup menu for the standard control panel
General The Setup menu provides easy access to expert knowledge in the power source and to
additional functions. The Setup menu can be used to make simple adjustments of the weld-
ing parameters to suit the various job settings.
Setup menu for
the standard con-
trol panel
Opening the Protective gas shield setup menu
Press and hold the Store button
Press the Gas test button
Release the Store button
Changing welding parameters
Use the Material button to select the desired parameter
Alter the parameter value using the Mode button
Exiting the Setup menu
Press the Store button
Parameters in the
Setup menu for
the Standard con-
trol panel
"Minimum" and "maximum" are used for setting ranges that differ according to power
source, wire-feed unit, welding program, etc.
NOTE! The number of parameters available for the Standard control panel, and
the order in which they are arranged, is not the same as in the extended setup
menu structure found on the Comfort, US, TIME 5000 Digital and CMT control
panels.
GPr
Gas pre-flow time
Unit s
Setting range 0 - 9.9
Factory setting 0.1
GPo
Gas post-flow time
Unit s
Setting range 0 - 9.9
Factory setting 0.5
Fdc
Feeder creep - wire feeder creep speed (only available when a push-pull unit is connect-
ed and the SFI option has been enabled)
Unit m/min ipm
Setting range AUT, OFF or 0.5 - max. AUT, OFF or 19.69 - max.
Factory setting AUT AUT
