65
EN
Connections, switches and mechanical components
TPS 2700 power
source

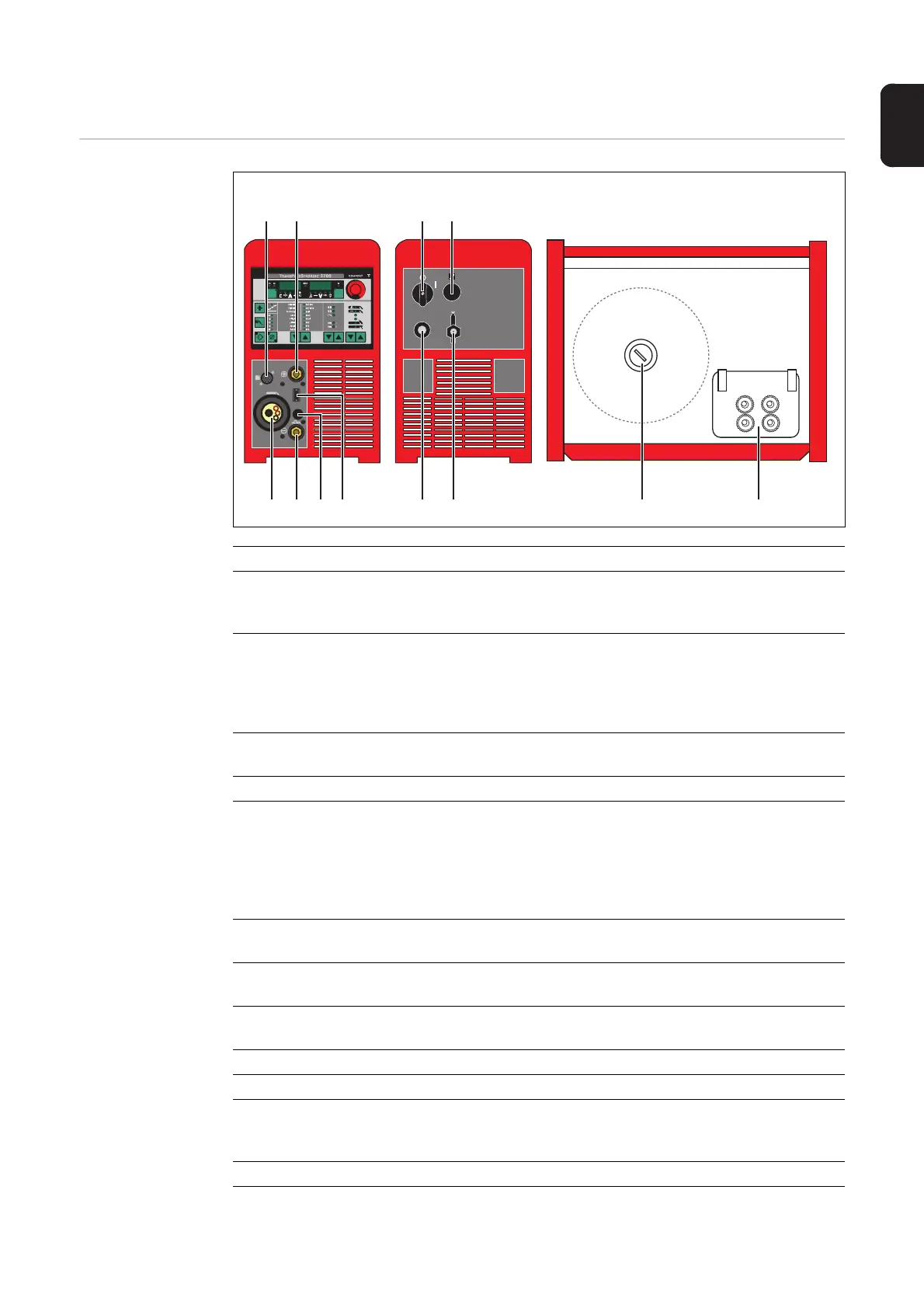

Front view Rear view Side view
No. Function
(1) LocalNet connection
Standardised connection socket for system add-ons (e.g. remote control, Job-
Master torch, etc.)
(2) (+) - Current socket with bayonet latch
for:
- connecting the grounding (earthing) cable during TIG welding
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(3) Welding torch control connection
for the welding torch control plug
(4) Blanking cover
(5) (-) - Current socket with bayonet latch
for:
- connecting the grounding (earthing) cable during MIG/MAG welding
- the current connection for the TIG welding torch
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(6) Welding torch connection
for connecting the welding torch
(7) Mains switch
for switching the power source on and off
(8) Blanking cover
reserved for a LocalNet connection
(9) Shielding gas connection
(10) Mains cable with strain relief device
(11) Wirespool holder with brake
for holding standard wirespools weighing up to 16 kg (35.27 lbs) and with a max.
diameter of 300 mm (11.81 in)
(12) 4 roller drive
(1) (2)
(3)(4)(5)(6)
(7) (8)
)9()01(
)21()11(
