Fronius CMT 4000 Advanced Operating Instructions & Spare Parts

78

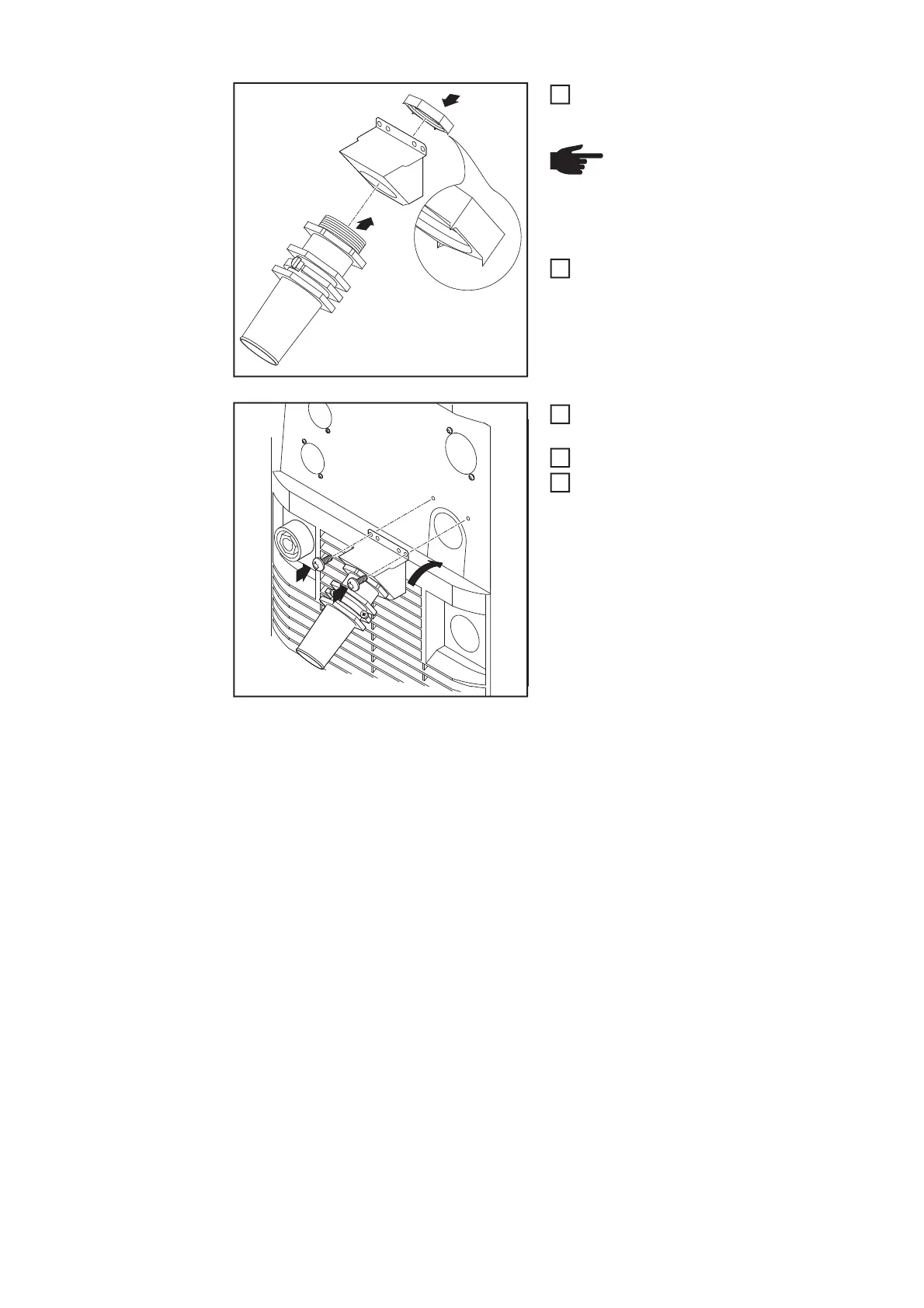

Insert the hexagon nut (size 50 mm)
into the holding plate
Screw the front of the large strain-relief
device into the hexagon nut (size 50
mm). The hexagon nut (size 50 mm)
now bites into the holding plate.
Slot the large strain-relief device into
the housing and fasten it with 2 screws
Connecting the mains cable
Replace the left side panel of the pow-
er source
NOTE! The points of the hexagon
nut must point towards the holding
plate for a reliable ground (earth)
connection to the power source
housing.
5
6
6
7
7
7
8
9
