Fronius KD 7000 - Configuration 2: Unalloyed;High-Alloy Steels (Push VR 1530;External)

21
EN
Configuration 2:
unalloyed/high-
alloy steels (Push
VR 1530/External)
Recommended for robots
- KD 7000 without wirespool and wire drive
- Wirespool on external wirespool holder on the robot
- Wire pushed by external 4 roller drive (VR 1530 KD)
- Length of the wirefeed hosepack: up to 3.5 m

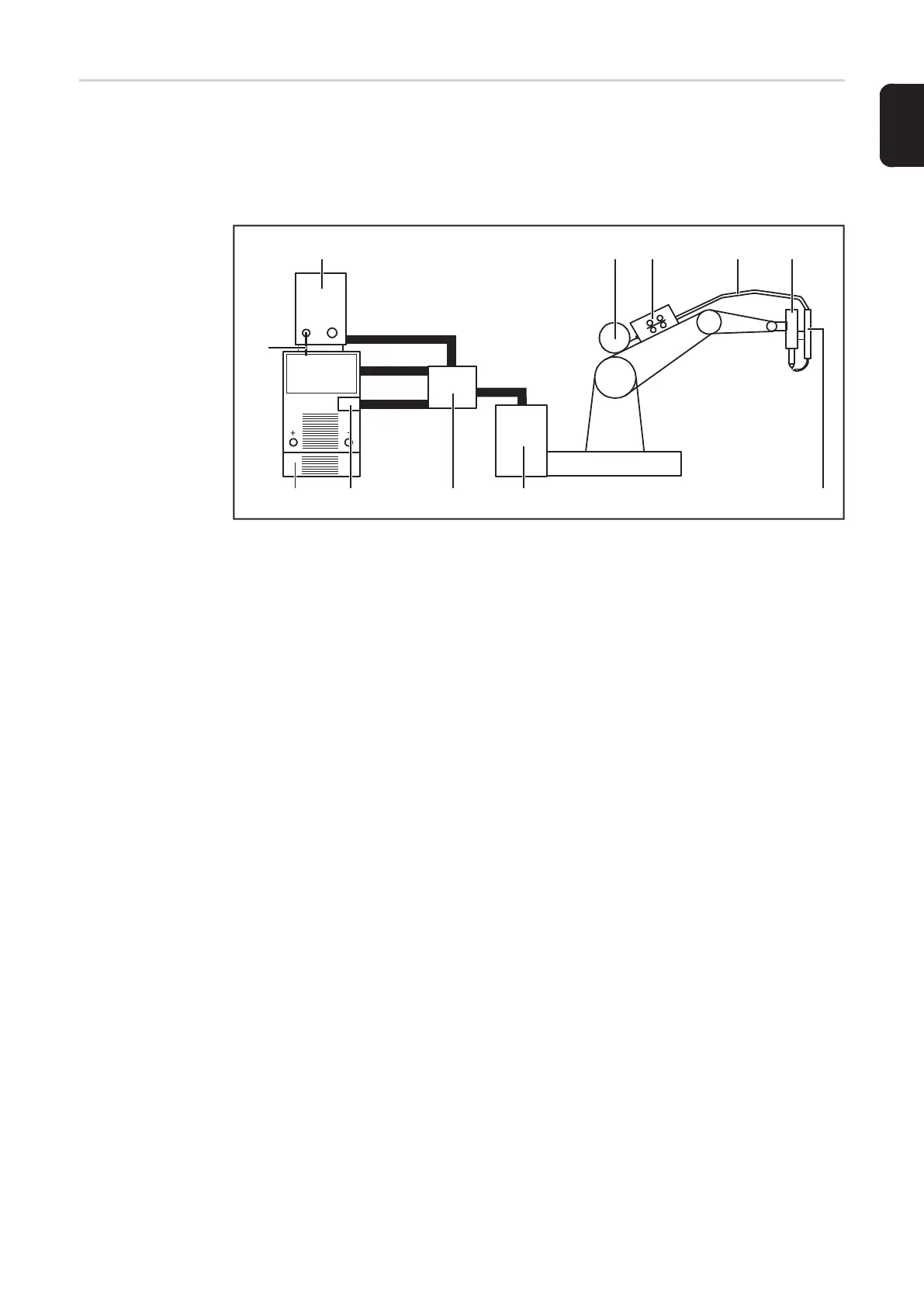

Configuration 2 - Wirespool and wire drive external, wire pushed
(1) KD 7000
(2) Wirespool holder and wirespool external
(3) 4 roller drive external VR 1530 KD
(4) Wirefeed hosepack
(5) Welding torch
(6) Wirefeed
(7) Robot control
(8) TIG-KD connection box
(9) Power source robot interface
(10) Power source
(11) Connection cable for external wire drive control (VR 1530 KD)
Limitation in the case of aluminium:
- Length of hosepack may not exceed 1 m
(1) (3) (5)
(6)(7)(8)(9)(10)
(2) (4)
(11)
