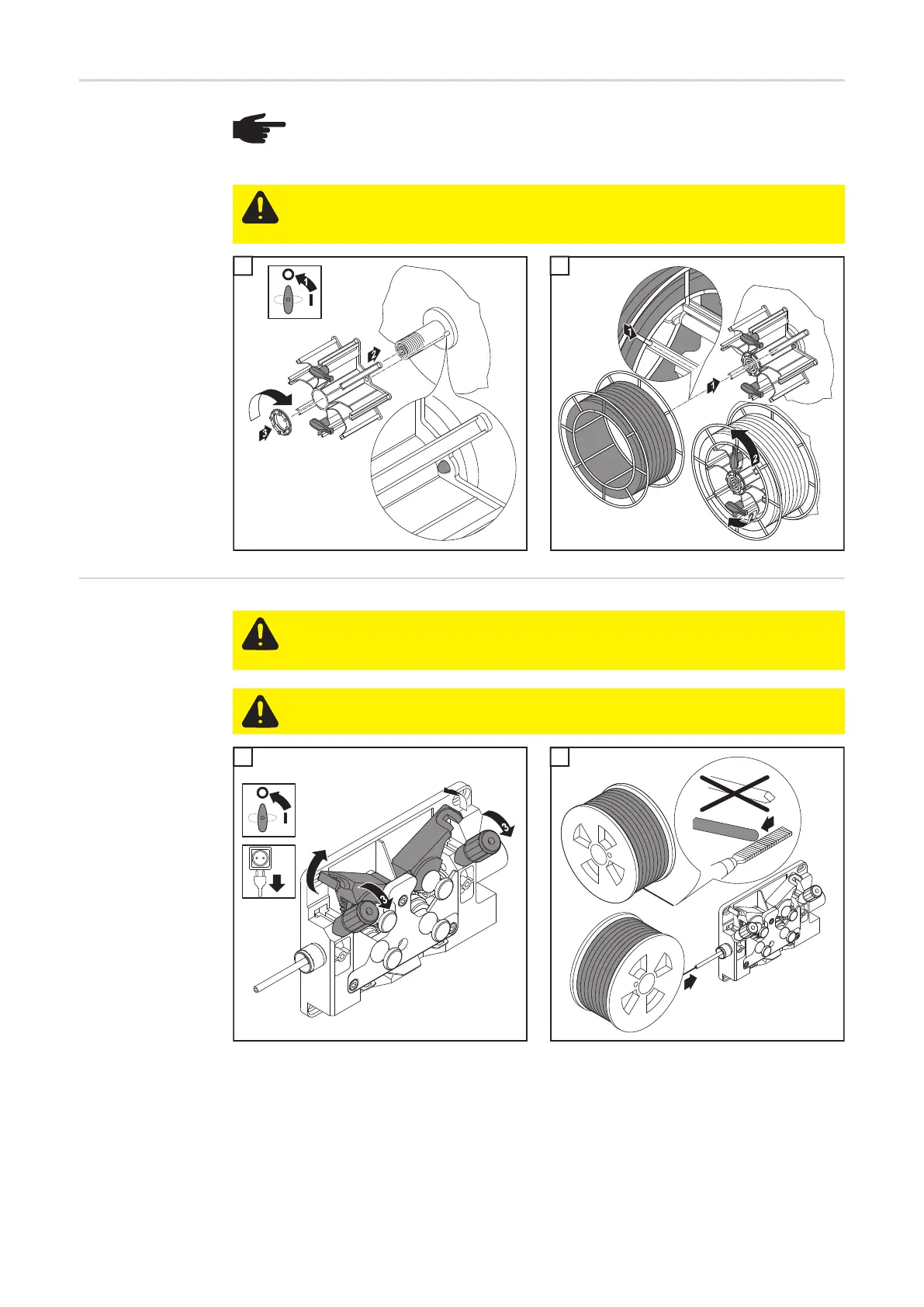

Inserting the bas-
ket-type spool
1 2
Feeding in the
welding wire
1 2
NOTE! When working with basket-type spools, use only the basket-type spool
adapter supplied with the wire-feed unit! USA wire-feed units are supplied without
basket-type spool adapters.
CAUTION! Risk of injury from falling basket-type spool. Place the basket-type
spool on the adapter provided in such a way that the bars on the spool are inside
the adapter guideways.
1
2
CAUTION! Risk of injury from springiness of spooled welding wire. While insert-
ing the welding wire into the 4 roller drive, hold the end of the wire firmly to avoid
injuries caused by the wire springing back.
CAUTION! Risk of damage to the welding torch from sharp end of welding wire.
Thoroughly deburr the end of the welding wire before threading.
4
4
1
2
1
1
2
2
