Configuration 3:
Aluminium (Pull/
Internal)
Recommended for welding machines
- KD 7000 with integrated wirespool, without wire drive
- Wire pulled through external 2-roller drive (Robacta Drive KD) during the welding pro-
cess itself
- Length of the Robacta Drive KD hosepack: up to 3.5 m

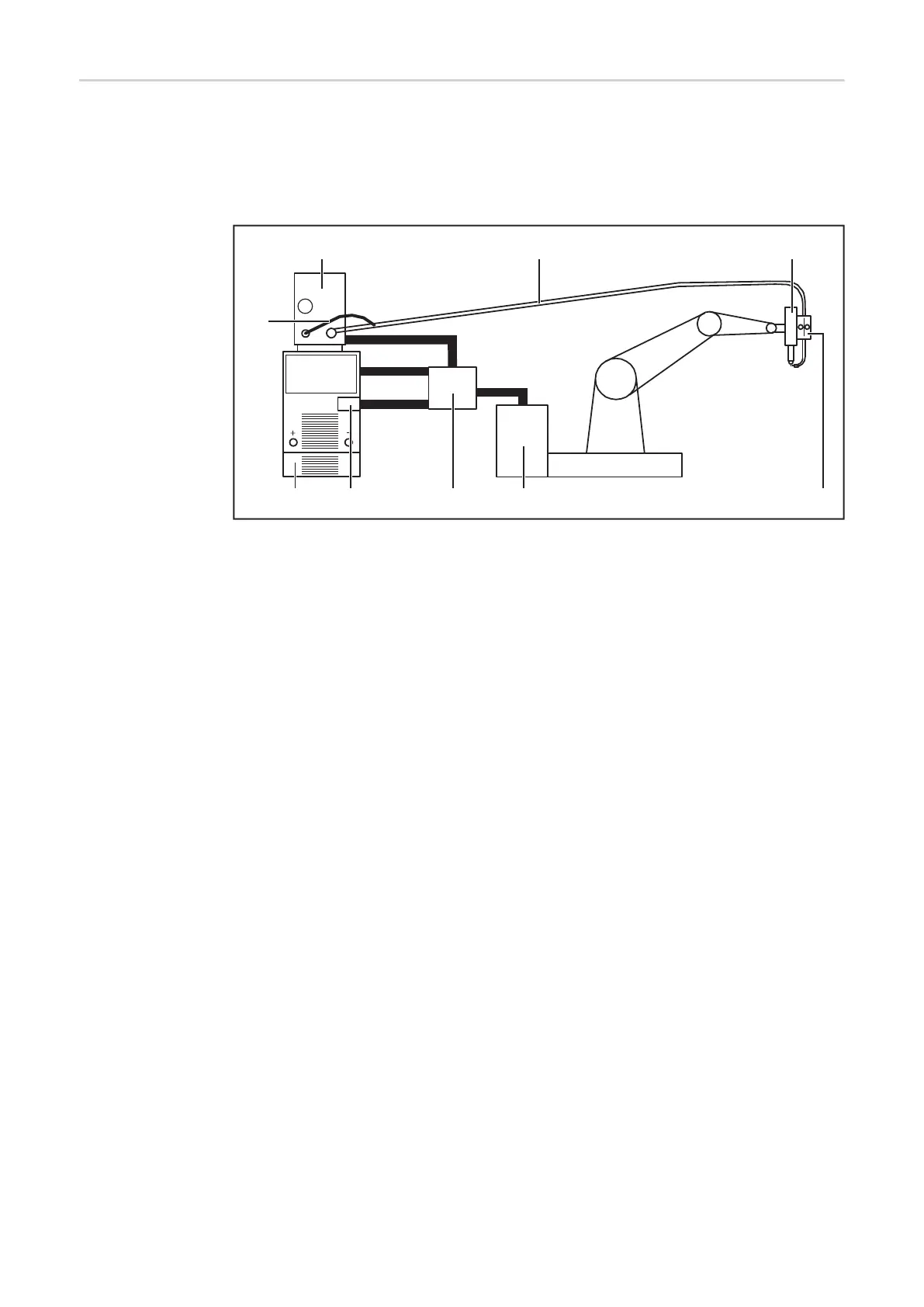

Configuration 3 - Wirespool in the KD 7000, wire pulled by external wire drive
(1) KD 7000 with wirespool holder
(2) Robacta Drive KD hosepack
(3) Welding torch
(4) 2 roller drive external Robacta Drive KD
(5) Robot control
(6) TIG-KD connection box
(7) Power source robot interface
(8) Power source
(9) Connection cable for external wire drive control (Robacta Drive KD)
Limitations in the case of unalloyed/low-alloy steels:
- Length of hosepack may not exceed 2 m
- Wire speed may not exceed 5 m/min
- The braking force of the wirespool brake should be reduced as much as possible so
that the wirespool does not continue unreeling at the end of welding
