Actual wire speed
TIG-KD connec-
tion box
For robot applications with the TIG cold-wire welding process, the TIG-KD connection box
acts as a central node to network the robot controller to the power source and the KD 7000.
IMPORTANT! If it is not necessary to control a power source via the robot controller, the
TIG KD connection box is not required (direct connection between robot controller and the
KD 7000). There is also the option of controlling the KD 7000 manually only.

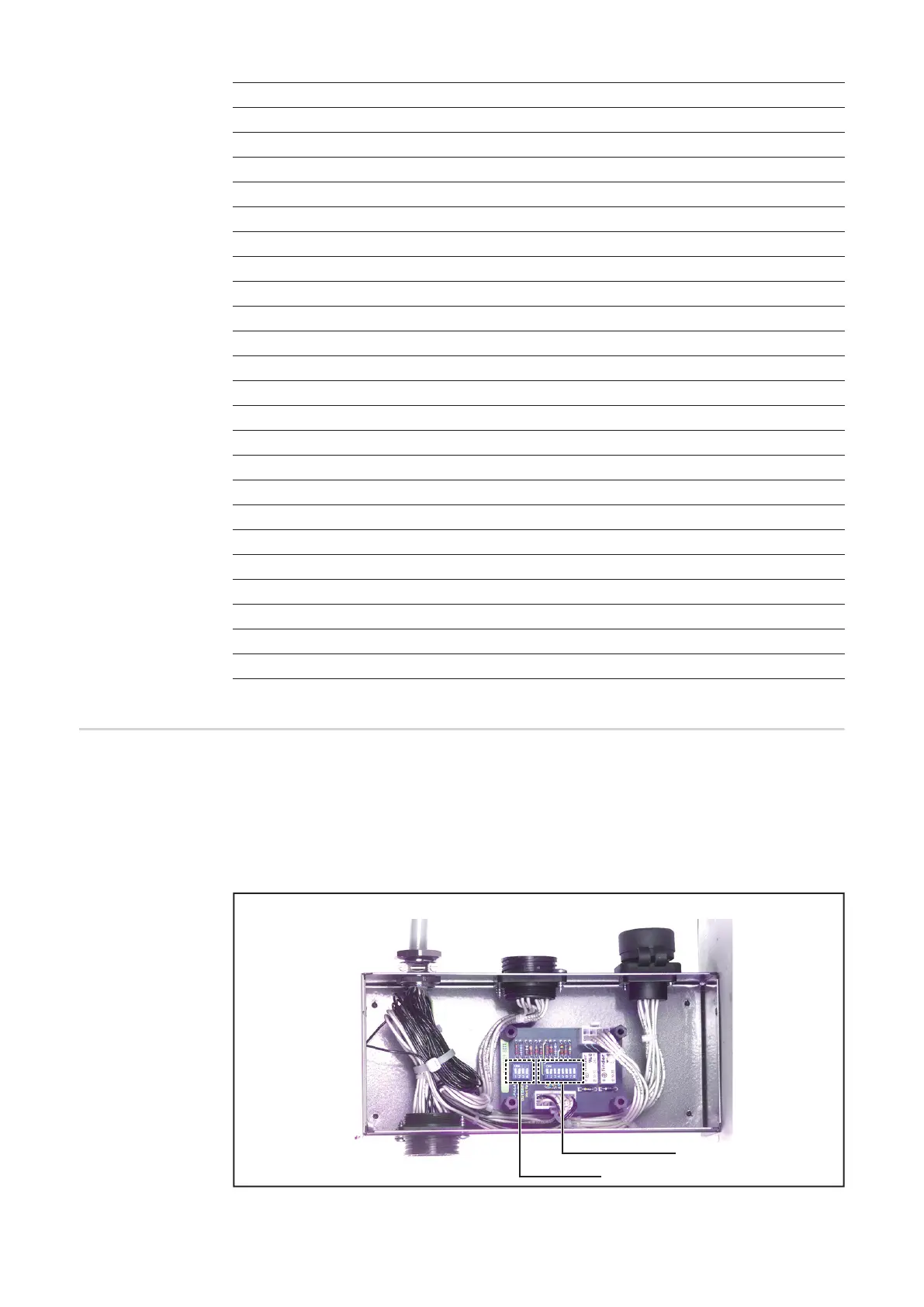

Inside the TIG-KD connection box
Wire drive 0 - 5 m/min 0 - 10 m/min 0 - 22 m/min
Wire speed (m/min) Set value
1 200 100 45
2 400 200 90
3 600 300 136
4 800 400 181
5 1000 500 227
6 - 600 272
7 - 700 318
8 - 800 363
9 - 900 409
10 - 1000 454
11 - - 500
12 - - 545
13 - - 591
14 - - 636
15 - - 682
16 - - 727
17 - - 773
18 - - 818
19 - - 864
20 - - 909
21 - - 955
22 - - 1000
X1
X2
X3
X4
Wire Mode
Remote Control
