Controls, connections and mechanical components
KD 7000

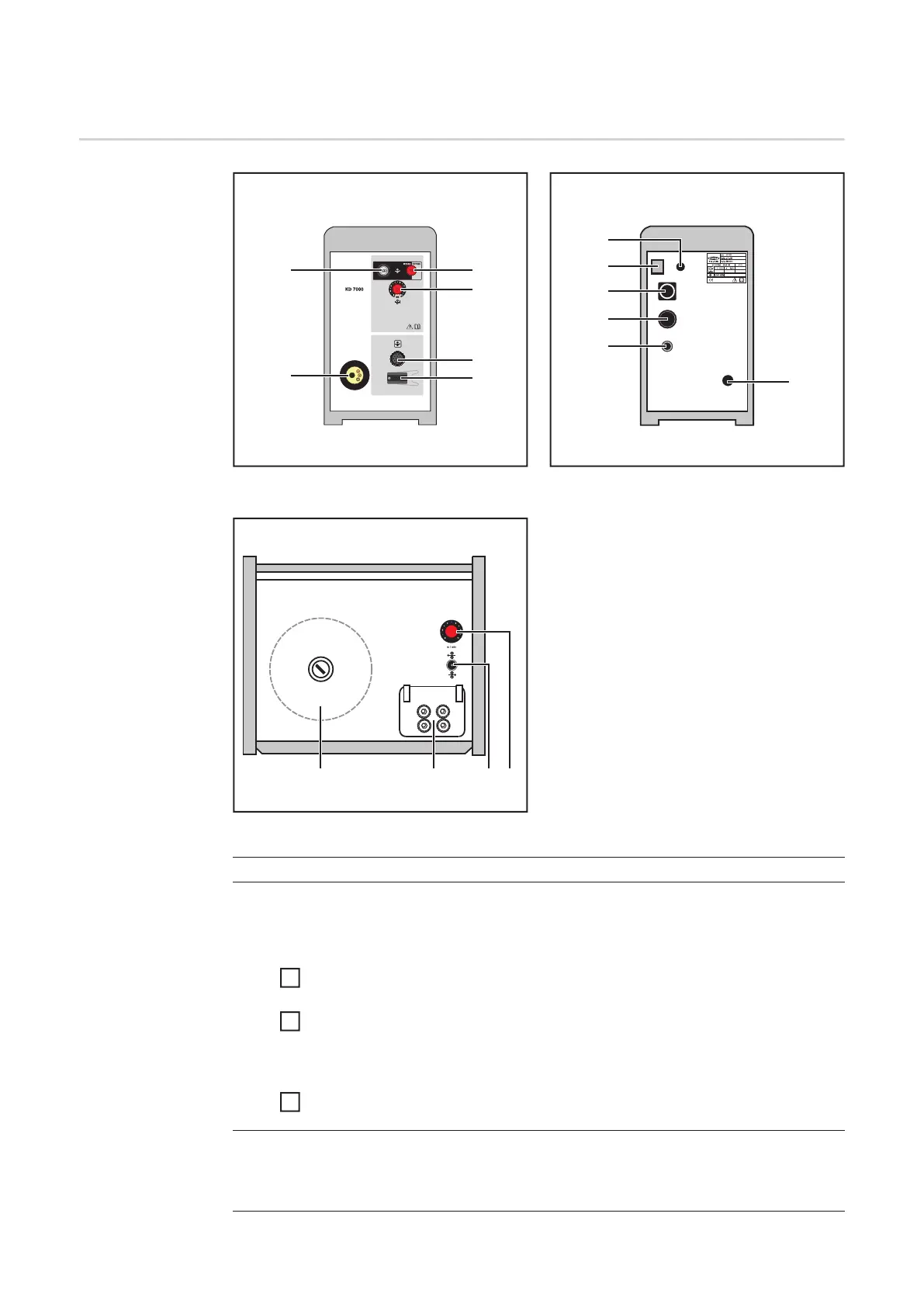

Front view Rear view
Side view
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(12)
(11)
(10)
(8)
(9)
(16)(15)(14)(13)
Item Designation
(1) Indication/wire speed adjustment dial
to display and set the wire speed
IMPORTANT! The actual wire speed will depend on the wire drive used.
Check the sticker on the KD 7000 for details of which wire drive is used (e.g.
wire drive "0 - 10 m/min")
Use the table below to determine the actual wire speed
e.g.:
"719" on the display means 7.19 m/min with the "0 - 10 m/min" wire drive
Adjustment range: 0.2 m/min up to maximum wire speed
If you want to keep the set wire speed:
set the Internal/External (2) selector switch to "Internal"
(2) Internal/External selector switch
to select internal/external wire speed
- on the KD 7000 ("Internal") or
- via a machine or robot controller ("External")
