Fronius Selectiva User Manual

Control elements and connections
General Please note:
as a result of firmware updates, you may find that there are functions available
on your device that are not described in these Operating Instructions, or vice
versa.
Certain illustrations may also differ slightly from the actual controls on your
device, but these controls function in exactly the same way.
WARNING!
Danger from incorrect operation.
This can result in severe personal injury and damage to property.
▶
Do not use the functions described here until you have read and completely
understood these operating instructions.
▶
Do not use the functions described here until you have fully read and under-
stood all of the Operating Instructions for the system components, in partic-
ular the safety rules.

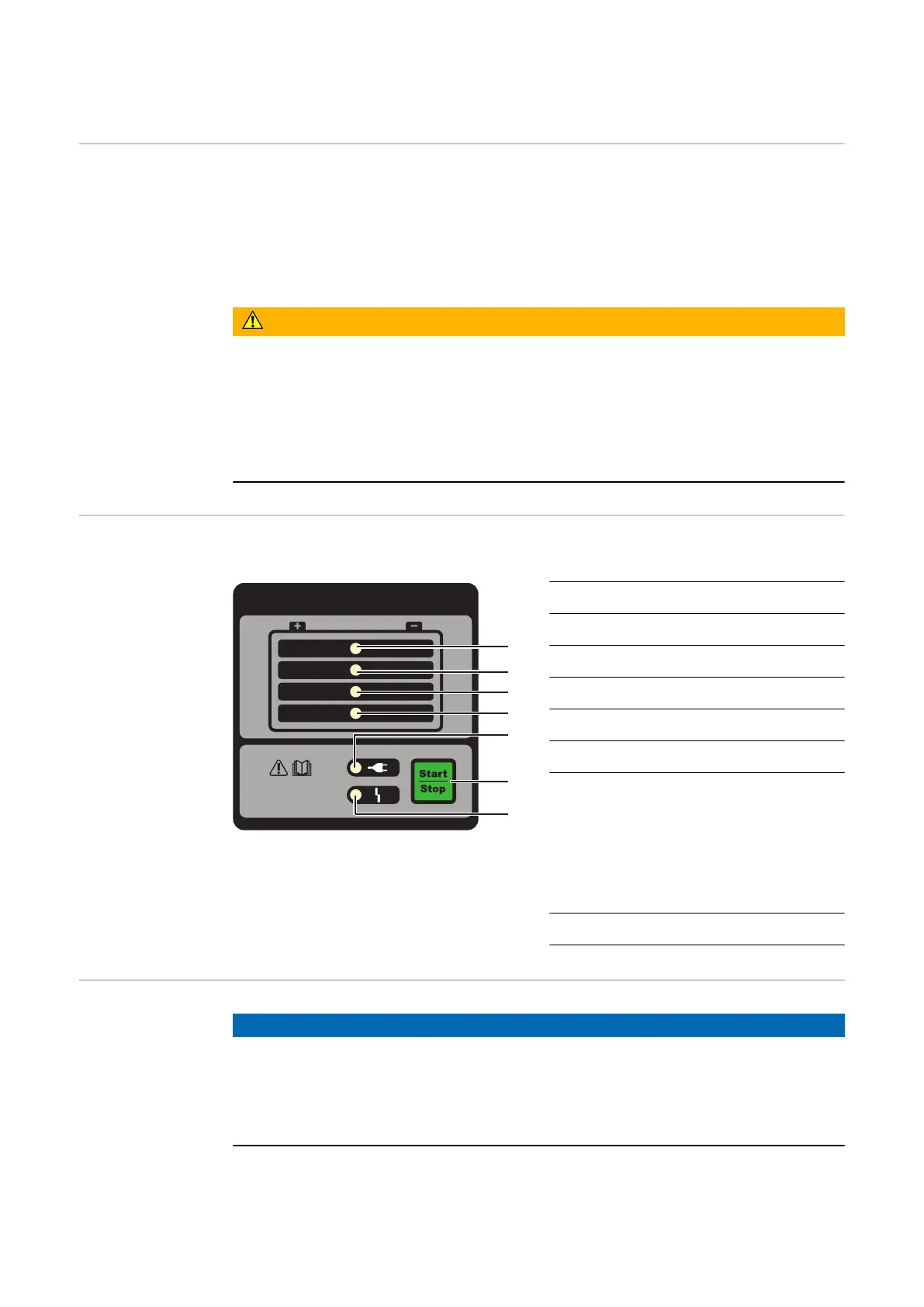

Control panel The control panel (LED version) is explained below.
(1)
(2)
(3)
(4)
(7)
(5)
(6)
(8)
(1) State of charge indicator 25%
(2) State of charge indicator 50%
(3) State of charge indicator 75%
(4) State of charge indicator 100%
(5) Ready indicator
(6) -
(7) Start/Stop and setup button
-
for interrupting and restart-
ing charging.
-
for selecting the character-
istic type (press and hold
for 10 s).
(8) Error indicator
Plugging in op-
tions
NOTE!
Danger from connecting options and accessories while the mains plug is
plugged in.
This can result in damage to the device and accessories.
▶
Only connect options and system add-ons when the mains plug is unplugged
and the charging leads are disconnected from the battery.
15

Fronius Selectiva Specifications

General

Efficiency	> 90%
Battery Types	Lead-acid, GEL, AGM
Protection Class	IP20
Protection Features	Overvoltage, Short-circuit, Reverse polarity
Output Voltage	12/24 V DC
