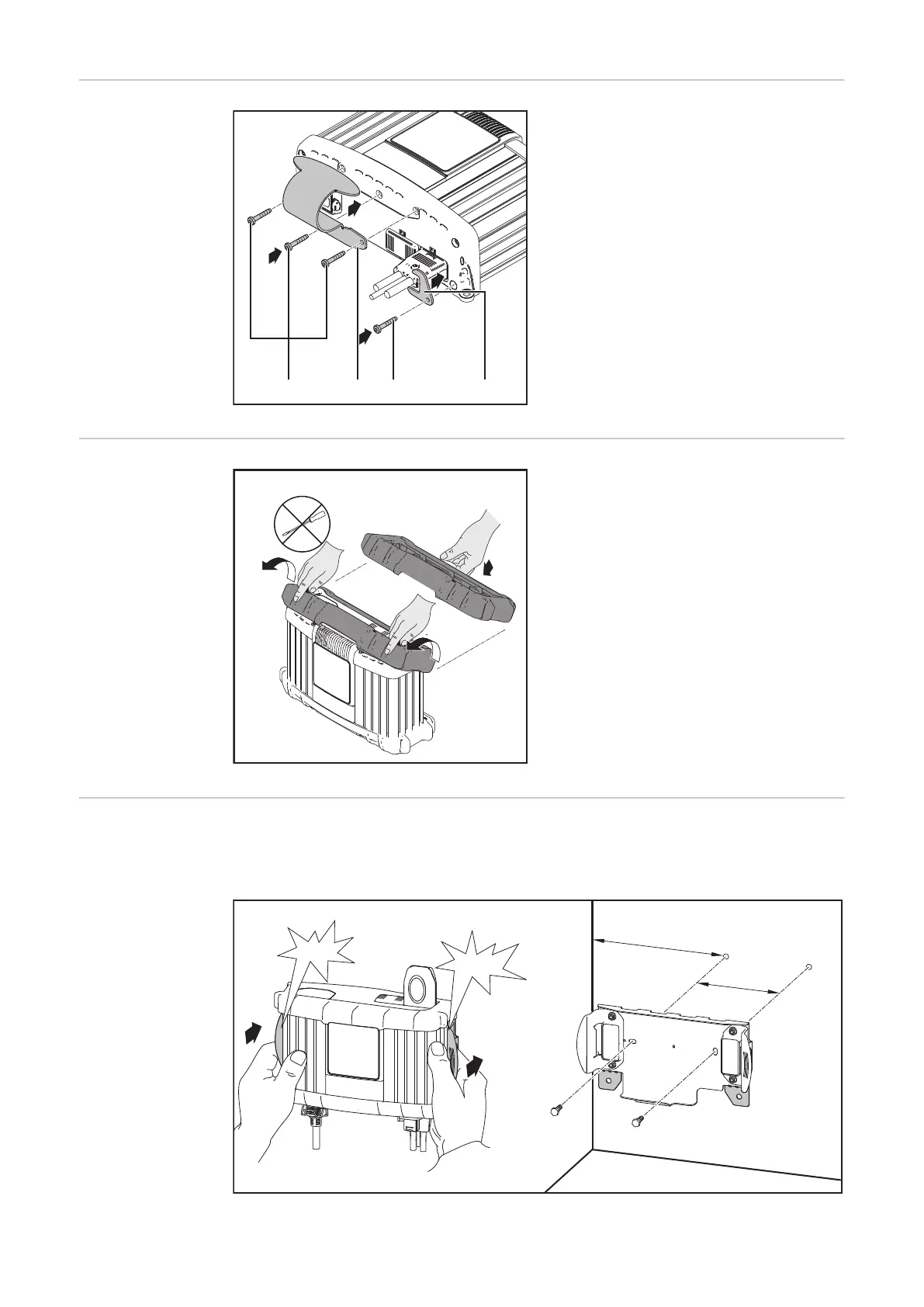

Fitting the op-
tional bracket
and strain-relief
device for the
charging lead
Please note:
the torque for all screws is 2.5 Nm
(1.84 ft. lb.).
To fit the bracket:
-
Undo the screws (1).
-
Fit bracket (2) using the previously
removed screws.
To fit the strain-relief device:
-
Undo screw (3).
-
Fit charging lead strain-relief
device (4) using the previously un-
done screw.
Edge guard op-
tion
The edge guard removal process is the
reverse of the fitting process.
The bracket cannot be fitted if the
edge guard is already in place.
Wall bracket op-
tion
Different wall plugs and screws will be required depending on the supporting sur-
face. Wall plugs and screws are therefore not included in the scope of supply.
The installer is responsible for selecting the right wall plugs and screws.
1
1
"click"
"click"
~ 120 mm
~ 4.72 inch
130 mm
5.12 inch
17
