Fronius Symo 10.0-3-M Installation Instructions

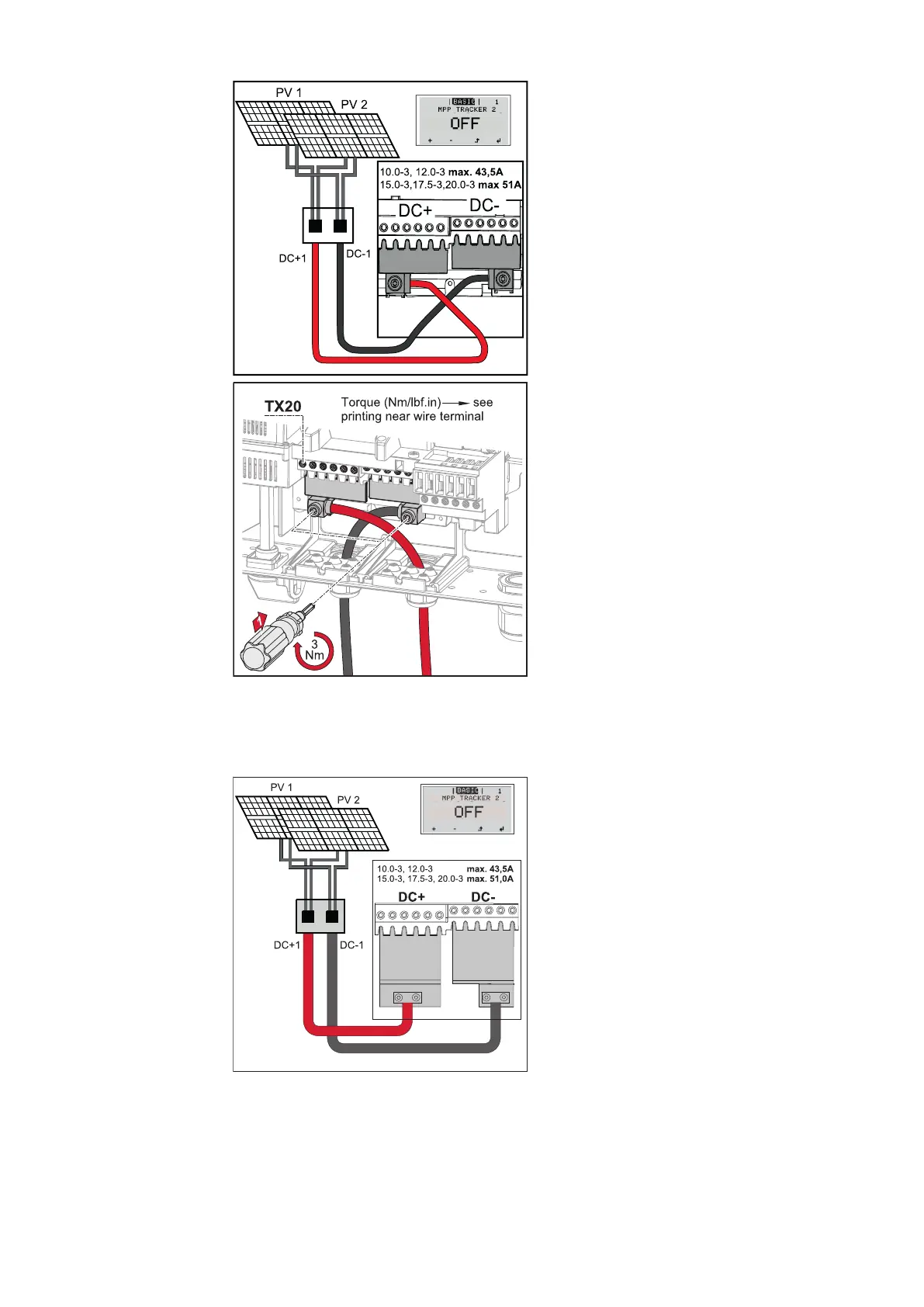

Set the MPP tracker 2 to "Off" during
initial commissioning. This can also be
done later in the Basic menu of the in-
verter. By using the DC Con Kit 25, the
DC strings of the connected DC lines
are divided equally between both in-
puts.
PV cable connection torque DC Con
Kit 25: 5.5 Nm / 50 lb-in
DC Con Kit 35
The Fronius DC Con Kit 35 (4,251,029) can be used to connect a PV string with a
cross-section of up to 35 mm² to the inverter.
Set the MPP tracker 2 to "Off" during
initial commissioning. This can also be
done subsequently in the Basic menu
of the inverter.
By using the DC Con Kit 35, the DC
strings of the connected DC lines are
divided equally between the two in-
puts.
24

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
