Fronius Symo 10.0-3-M Installation Instructions

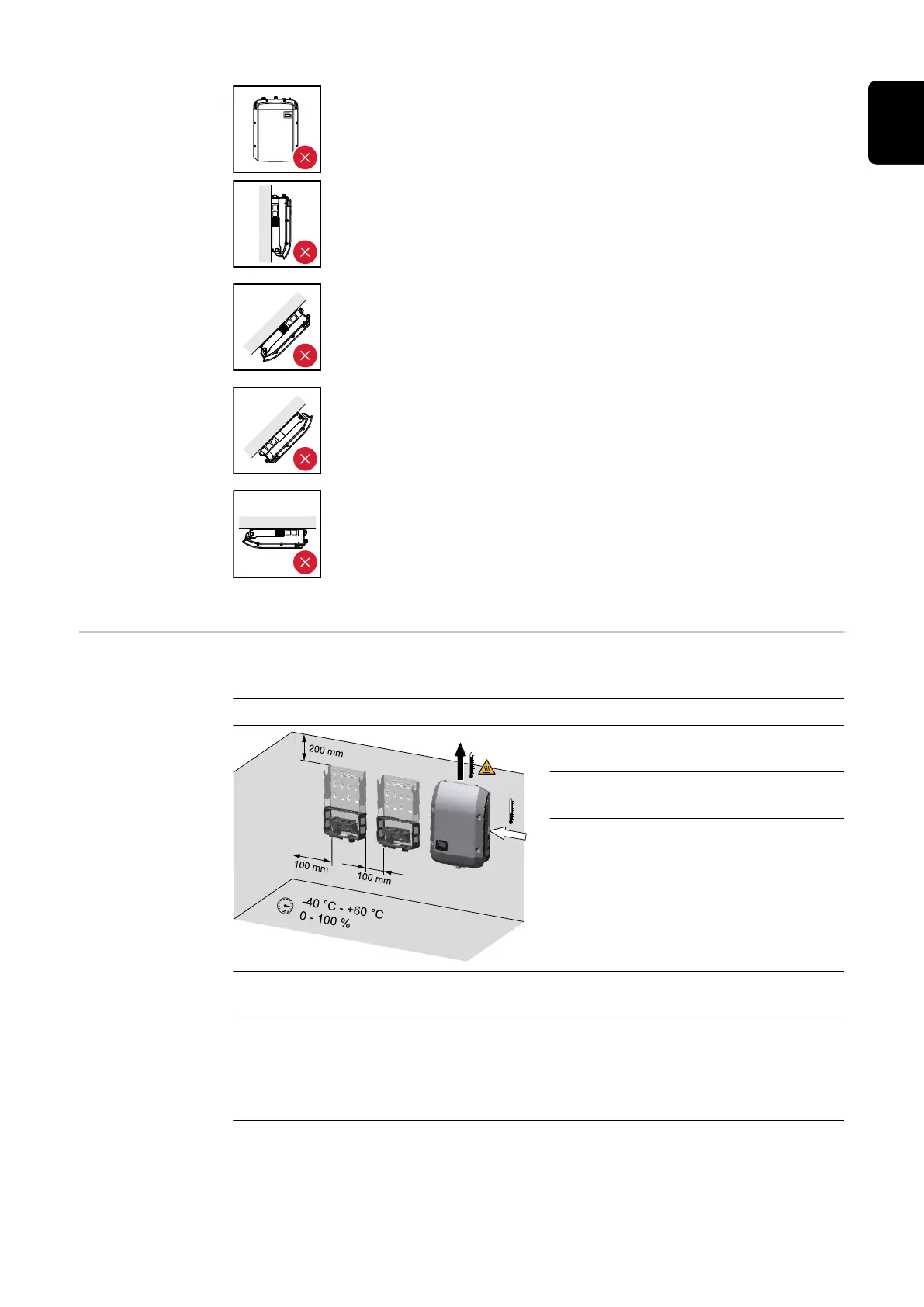

Do not install the inverter on a vertical wall or pillar with its con-
nection sockets facing upwards.
Do not install the inverter overhanging with the connection sock-
ets at the top.
Do not install the inverter overhanging with the connection sock-
ets at the bottom.
Do not install the inverter on the ceiling.
General com-
ments regarding
choice of loca-
tion
Please note the following criteria when choosing a location for the inverter:
Install only on a solid, non-flammable surface
Max. ambient temperatures:
-40 °C / +60 °C
Relative humidity:
0-100%
The airflow within the inverter is
from the right to the top (cold air
taken in from the right, hot air dis-
sipated out of the top).
The exhaust air can reach a temper-
ature of 70 °C.
If the inverter is installed in a switch cabinet or a similar sealed area, then
forced-air ventilation must be provided to ensure adequate heat dissipation.
If the inverter is to be installed on the outer wall of a cattle shed, maintain a
minimum all-round clearance of 2 m between the inverter and all ventilation
and other openings in the building.
The installation location must not be exposed to ammonia, corrosive vapours,
salts or acids.
9
EN

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
