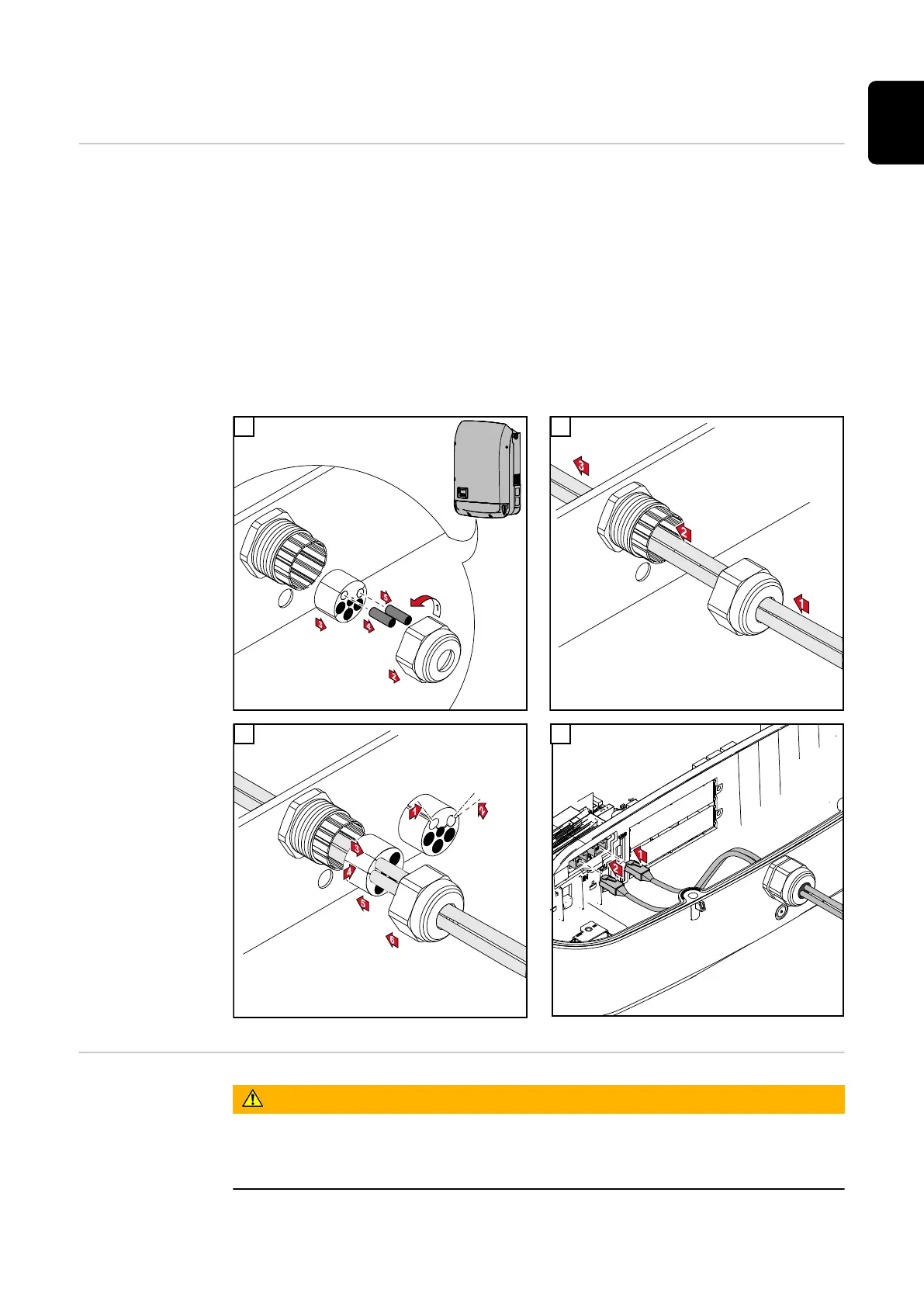

Data communication
Routing data
communication
cables
IMPORTANT! Operating the inverter with one option card and two broken-out
option card slots is not permitted.
To cater for this eventuality, a suitable blanking cover (item number
42,0405,2094) is available from Fronius as an option.
IMPORTANT! If data communication cables are wired into the inverter, observe
the following points:
-
Depending on the number and cross-section of the data communication
cables that are being introduced, take the relevant blanking plugs out of the
sealing insert and insert the data communication cables.
-
The relevant blanking plugs must be inserted into the free openings on the
sealing insert.
1 2
3 4
Installing the
Datamanager in
the inverter
WARNING!
Danger of residual voltage from capacitors.
This may result in an electric shock.
Wait for the capacitors to discharge. The discharge time is five minutes.
33
EN

Table of Contents

Other manuals for Fronius Symo 10.0-3-M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fronius Symo 10.0-3-M and is the answer not in the manual?

Fronius Symo 10.0-3-M Specifications

General IconGeneral
Max. output current16.7 A
Max. input voltage1000 V
MPP voltage range200 - 800 V
Number of MPP trackers2
Protection classIP 65
AC voltage range150 - 280 V
Frequency50 / 60 Hz
THD< 3 %
AC Nominal Power10000 W
MPPT Voltage Range200 - 800 V
AC Frequency50 / 60 Hz
AC nominal output10000 W
Max. apparent AC power10000 VA
DC input voltage range200-1000 V
Operating Temperature-25°C to +60°C
Dimensions (W x H x D)725 x 510 x 225 mm
AC nominal voltage3 x 230 / 400 V
