Fronius Symo 10.0-3-M Installation Instructions

Fronius Symo Fronius Eco

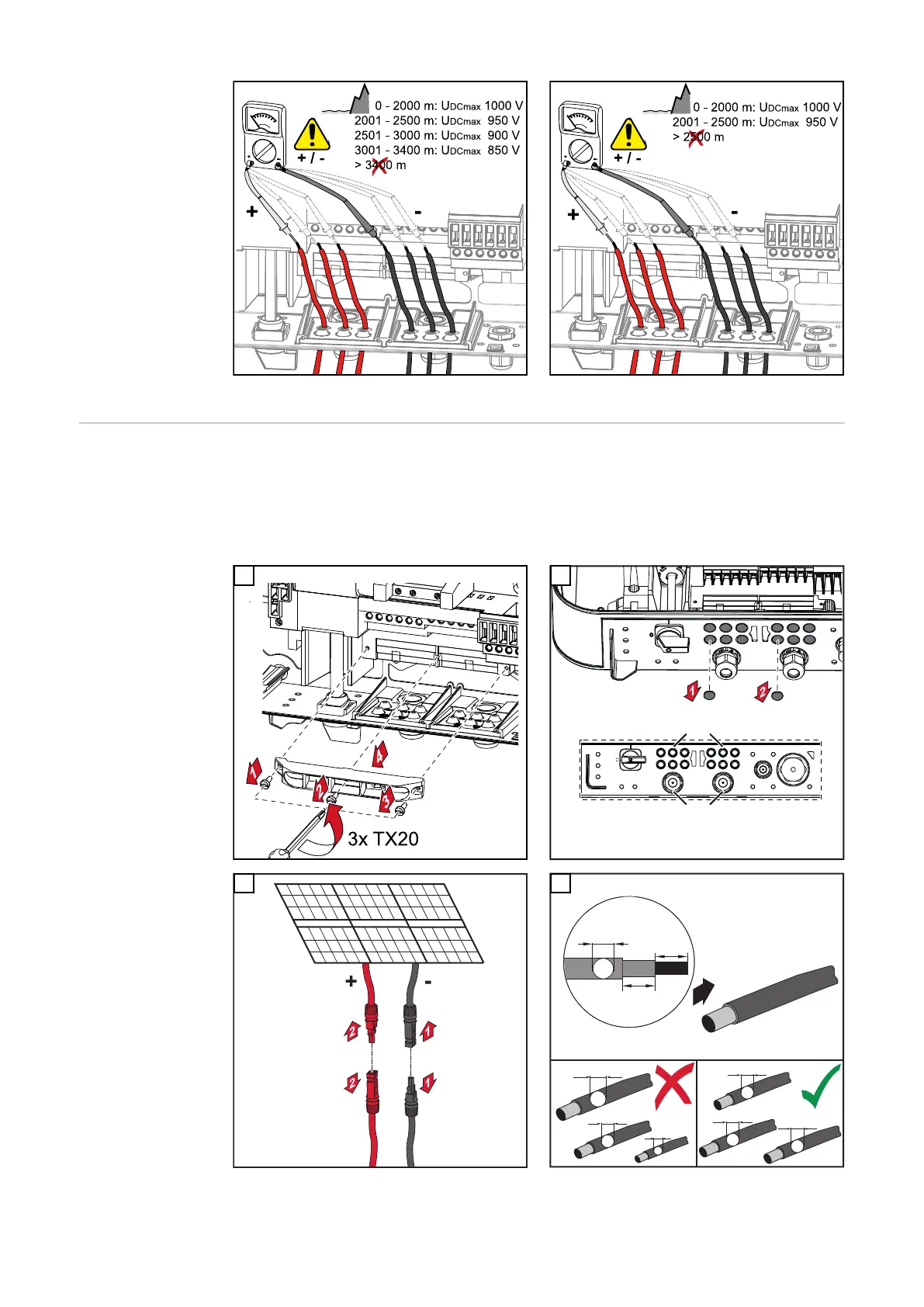

Connecting the
solar module
strings to the in-
verter
IMPORTANT! Only break out as many target break points as the number of
cables that are provided (e.g. if there are 2 DC cables, then break out 2 recesses).
IMPORTANT! Fronius Eco: check the string fuses used (type and rating) before
connecting the solar module strings to the inverter.
1
2.5 - 10 mm²
10 – 25* / 35* mm²
DC Con Kit 25 = 25 mm²
DC Con Kit 35 = 35 mm²
*
2
3
D1
D2
D3
D1
D1
D1
15 mm
70 mm
D > 6 mm
min. 70 °C / 167 °F
4
30

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
