Australian Conduits
Tightly sealing
the conduits

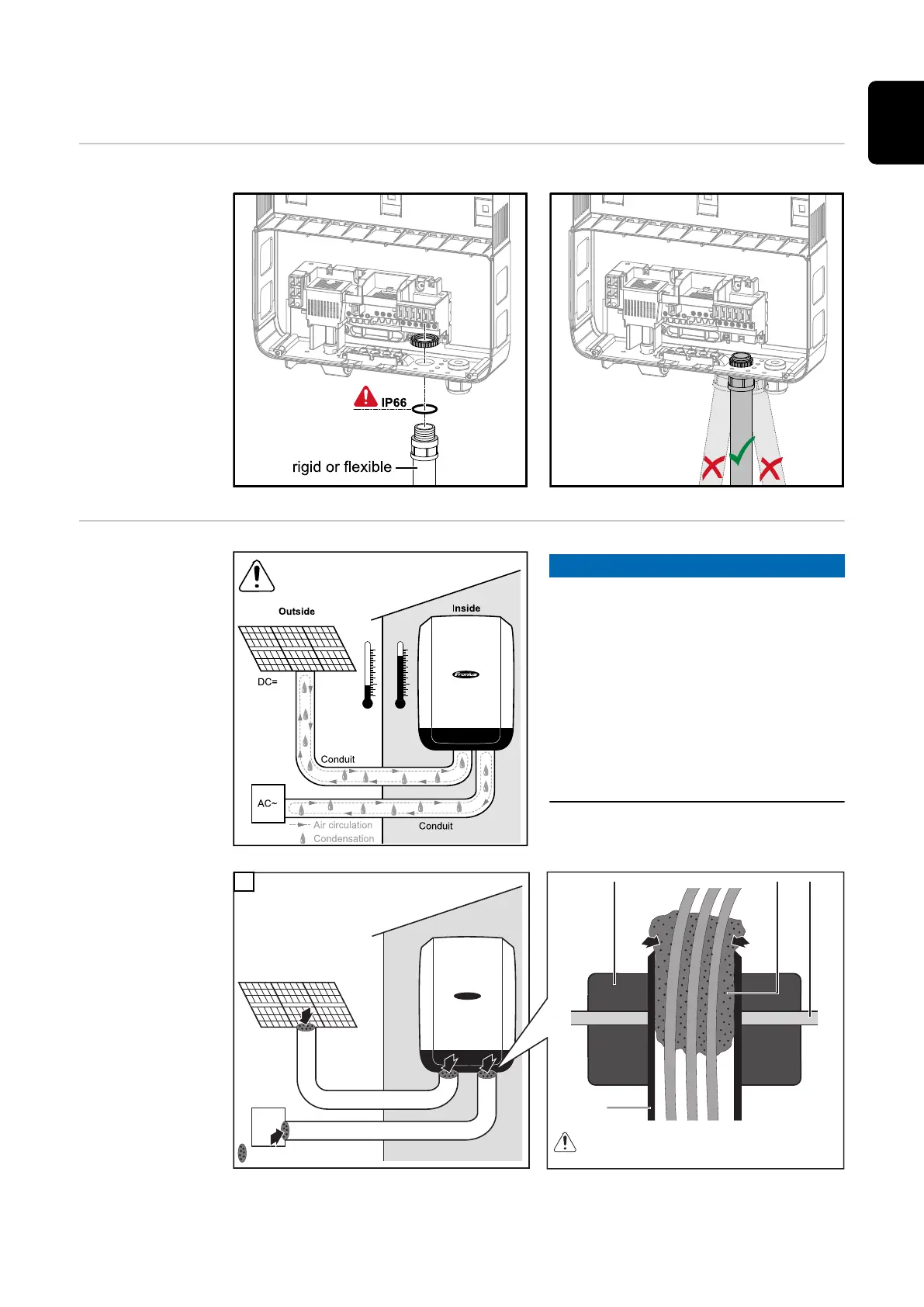

Ensure that the conduits are tightly sealed.
Seal conduits
NOTE!
Condensation within the conduits can
damage the inverter or components of
the photovoltaic systems.
To avoid undesirable air circulation and
condensation in the conduits:
Seal all conduits being used with a
permanently elastic sealant
Seal every incoming and outgoing
conduit
Seal both conduit ends.
Conduit
Conduit
AC~
Inside
Outside
DC=
4
3
2
Permanently elastic sealant
Seal all used conduits!
Seal every incoming and every outgoing conduit!
Seal both conduit ends!
1
Conduit
Inverter housing
Conduit fitting
Permanently elastic
sealant
1
1
1
49
