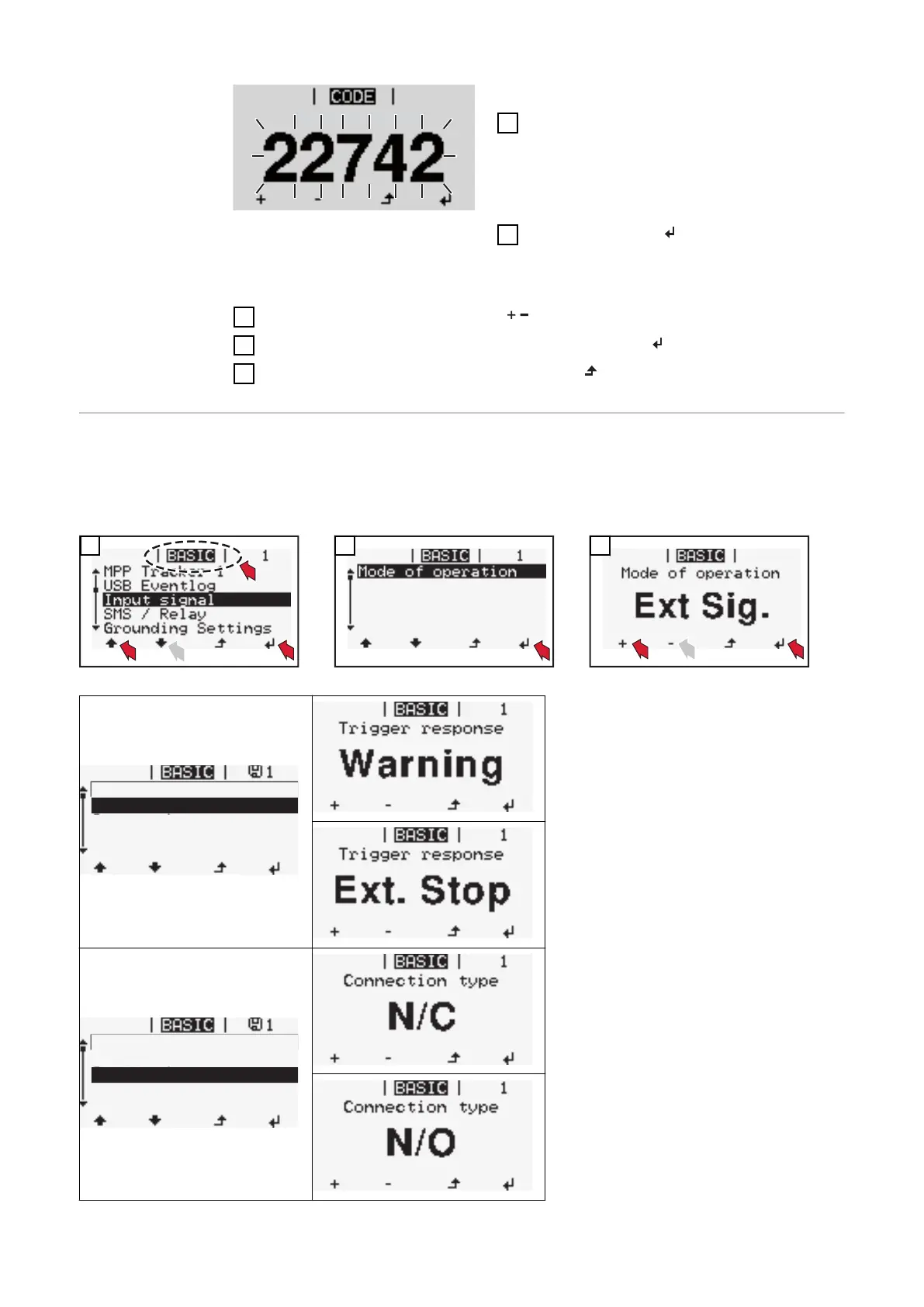

Access Code
The second digit flashes.
5
Repeat steps 3 and 4 for the second,
third, fourth and fifth digits of the access
code until...
the selected code starts flashing.
6
Press the "Enter" button
The Basic menu appears.
7
Use the "Plus" and "Minus" keys to select the desired entry
8
Edit the desired menu item by pressing the "Enter" button
9
Press the "Esc" key to exit the Basic menu
Settings in the
Basic menu
1
3
2
2
1
1
2
1
1
2
3
Mode of operation
Trigger response
Connection type
Warning is shown on the display
(STATE 568).
Inverter is switched off (STATE
668).
Mode of operation
Trigger response
Connection type
N/C (normally closed contact) *
N/O (normally open contact) *
58

Table of Contents

Other manuals for Fronius Symo 10.0-3-M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fronius Symo 10.0-3-M and is the answer not in the manual?

Fronius Symo 10.0-3-M Specifications

General IconGeneral
Max. output current16.7 A
Max. input voltage1000 V
MPP voltage range200 - 800 V
Number of MPP trackers2
Protection classIP 65
AC voltage range150 - 280 V
Frequency50 / 60 Hz
THD< 3 %
AC Nominal Power10000 W
MPPT Voltage Range200 - 800 V
AC Frequency50 / 60 Hz
AC nominal output10000 W
Max. apparent AC power10000 VA
DC input voltage range200-1000 V
Operating Temperature-25°C to +60°C
Dimensions (W x H x D)725 x 510 x 225 mm
AC nominal voltage3 x 230 / 400 V
