Fronius Symo 10.0-3-M Installation Instructions

DC SPD option
Overview of DC
SPD option

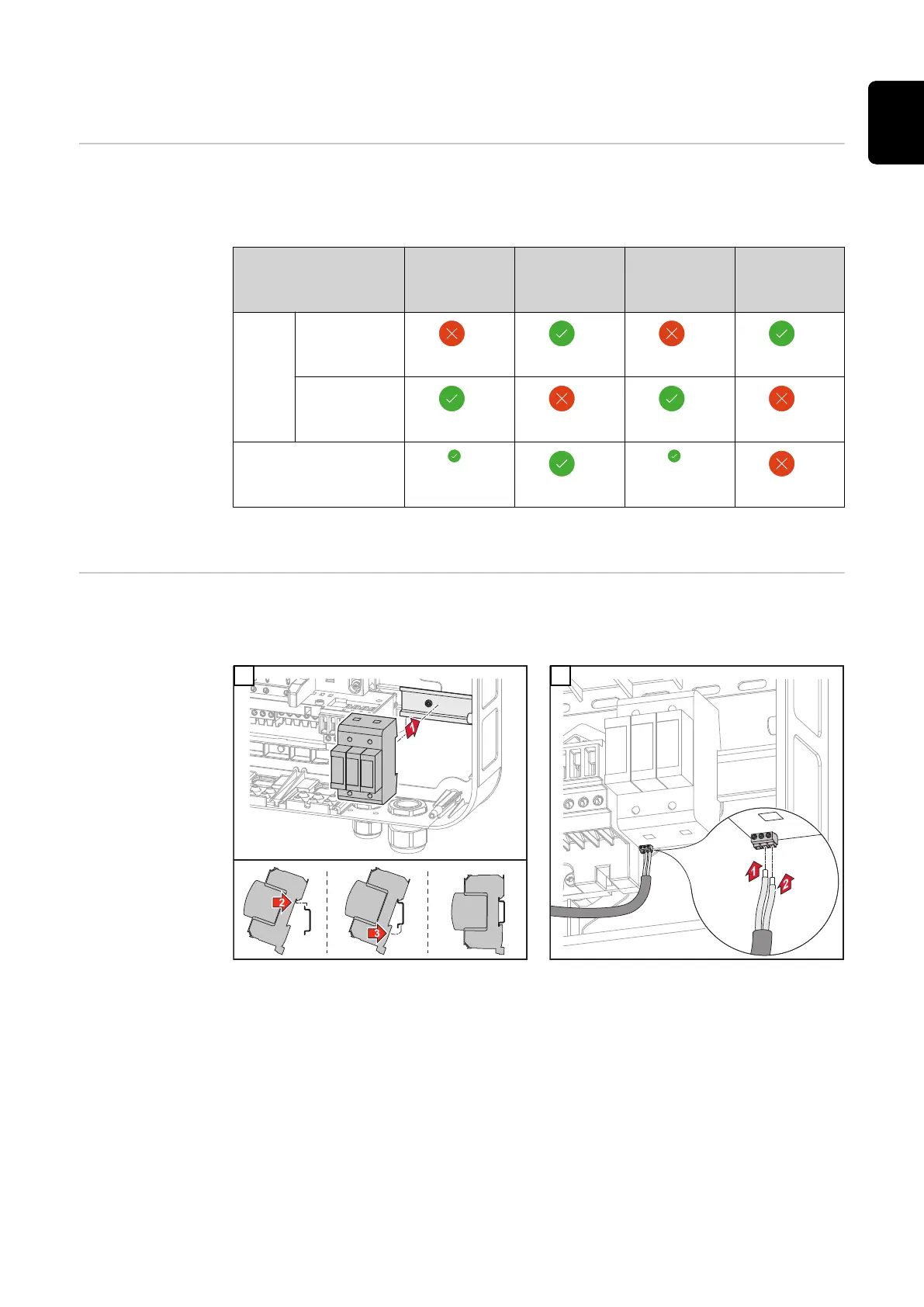

Surge protection (DC SPD option) can be ordered pre-installed or can be retro-
fitted to the inverter later. Depending on the device type and operating mode, a
suitable type must be installed:
TYPE 1+2 -
S
4,251,024
TYPE 1+2 -
M
4,251,025
TYPE 2 - S
4,251,019
TYPE 2 - M
4,251,020
Symo Multi MPP
Tracker
mode
Single MPP
Tracker
mode
ECO
* *
*Note: The PV current is displayed distorted by the hardware topology used.
Retrofitting the
DC SPD‑S option
to the Fronius
Symo
The DC cables can be connected to the DC terminals without ferrules.
To retrofit the DC SPD-S option to the inverter:
1 2
51
EN

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
