Fronius Symo 10.0-3-M Installation Instructions

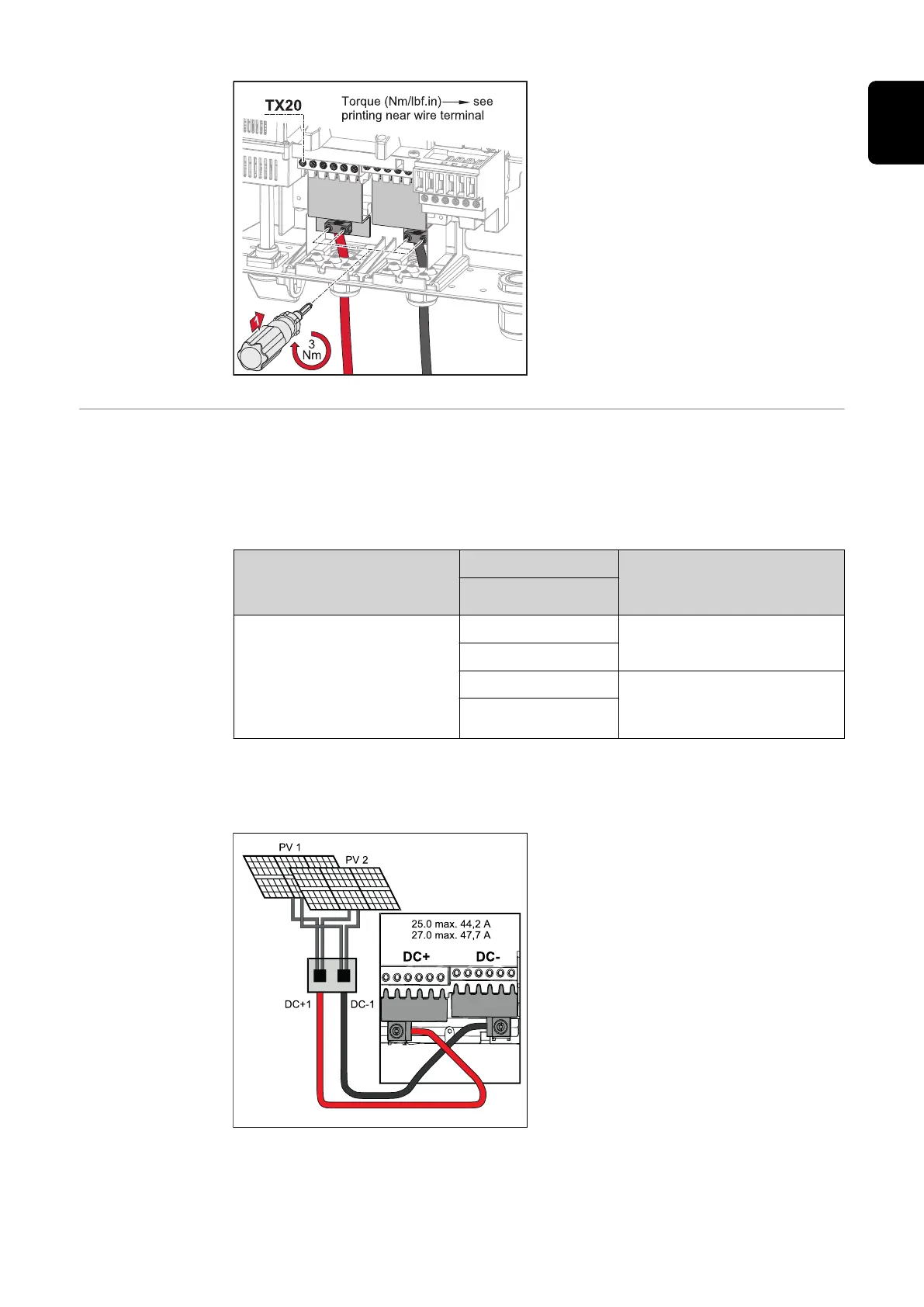

PV cable connection torque DC Con
Kit 35: 3 Nm
Single MPP
tracker - Fronius
Eco inverter
Single MPP tracker mode on the MPP tracker input
If the solar module strings are connected to a string combiner box (GAK for
short - generator connection box) and the distance to the inverter is bridged by
means of a DC string, this DC string can be connected to the inverter as follows.
Power categories MPP tracker Input current
DC input
Eco
20-27 kVA
MPP1 I
max
per terminal 15 A
DC+1
MPP1 I
max
per terminal 15 A
DC+2
DC Con Kit 25
The Fronius DC Con Kit 25 (4,251,015) can be used to connect a solar module
string with a cross-section of up to 25 mm² to the inverter.
Connecting multiple interconnected solar mod-
ule fields to an inverter with multiple MPP track-
ers using one lead
By using the DC Con Kit 25, the DC
strings of the connected DC lines are
equally distributed to both inputs.
25
EN

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
