Fronius Symo 10.0-3-M Installation Instructions

PV cable connection torque DC Con
Kit 25: 5.5 Nm / 50 lb-in

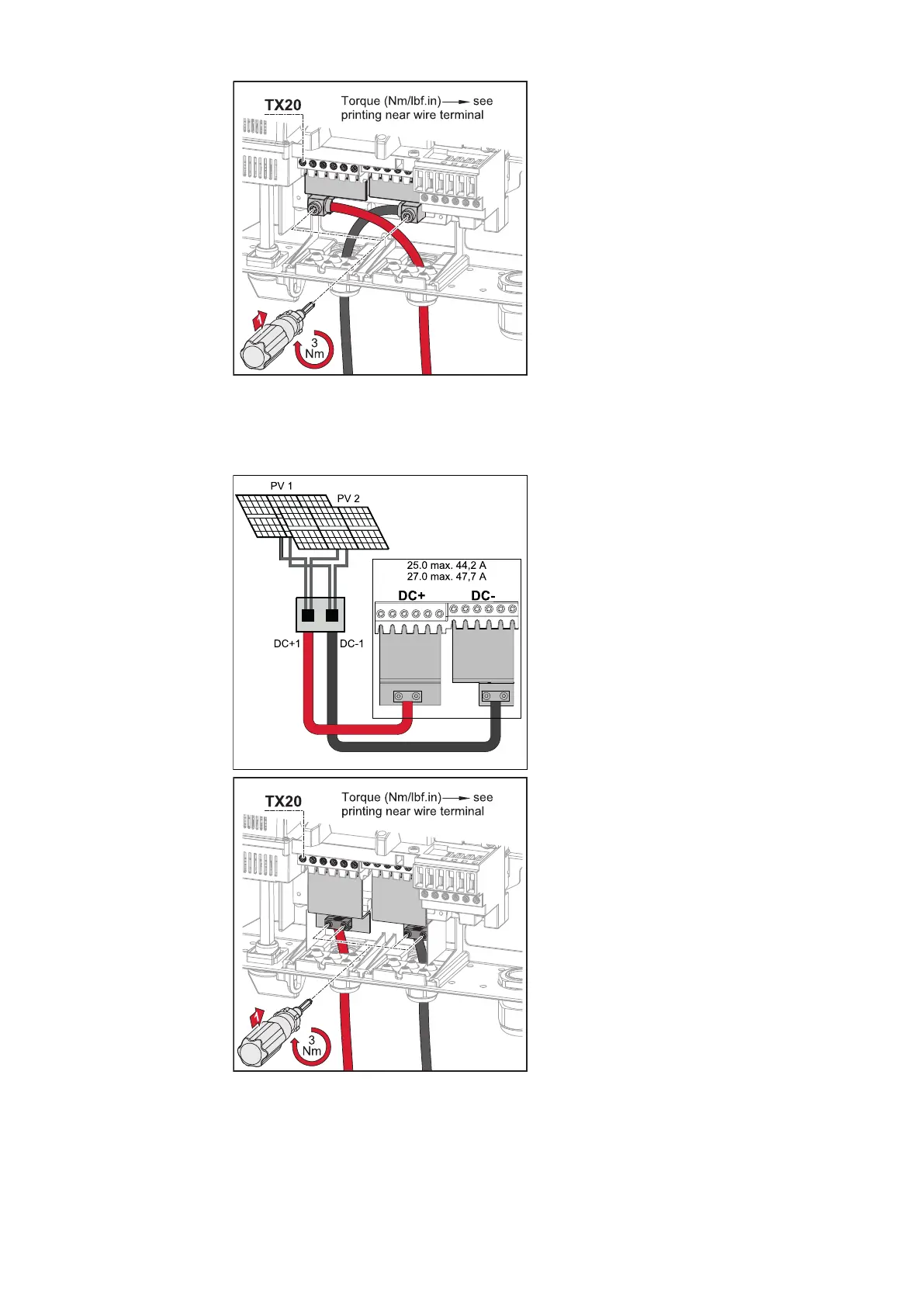

DC Con Kit 35
The Fronius DC Con Kit 35 (4,251,029) can be used to connect a solar module
string with a cross-section of up to 35 mm² to the inverter.
By using the DC Con Kit 35, the DC
strings of the connected DC lines are
divided equally between both inputs.
PV cable connection torque DC Con
Kit 35: 3 Nm
PV cable connection torque DC Con
Kit 35: 3 Nm
26

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
