Fronius SYMO Series Installation Instructions

15
EN-US
3

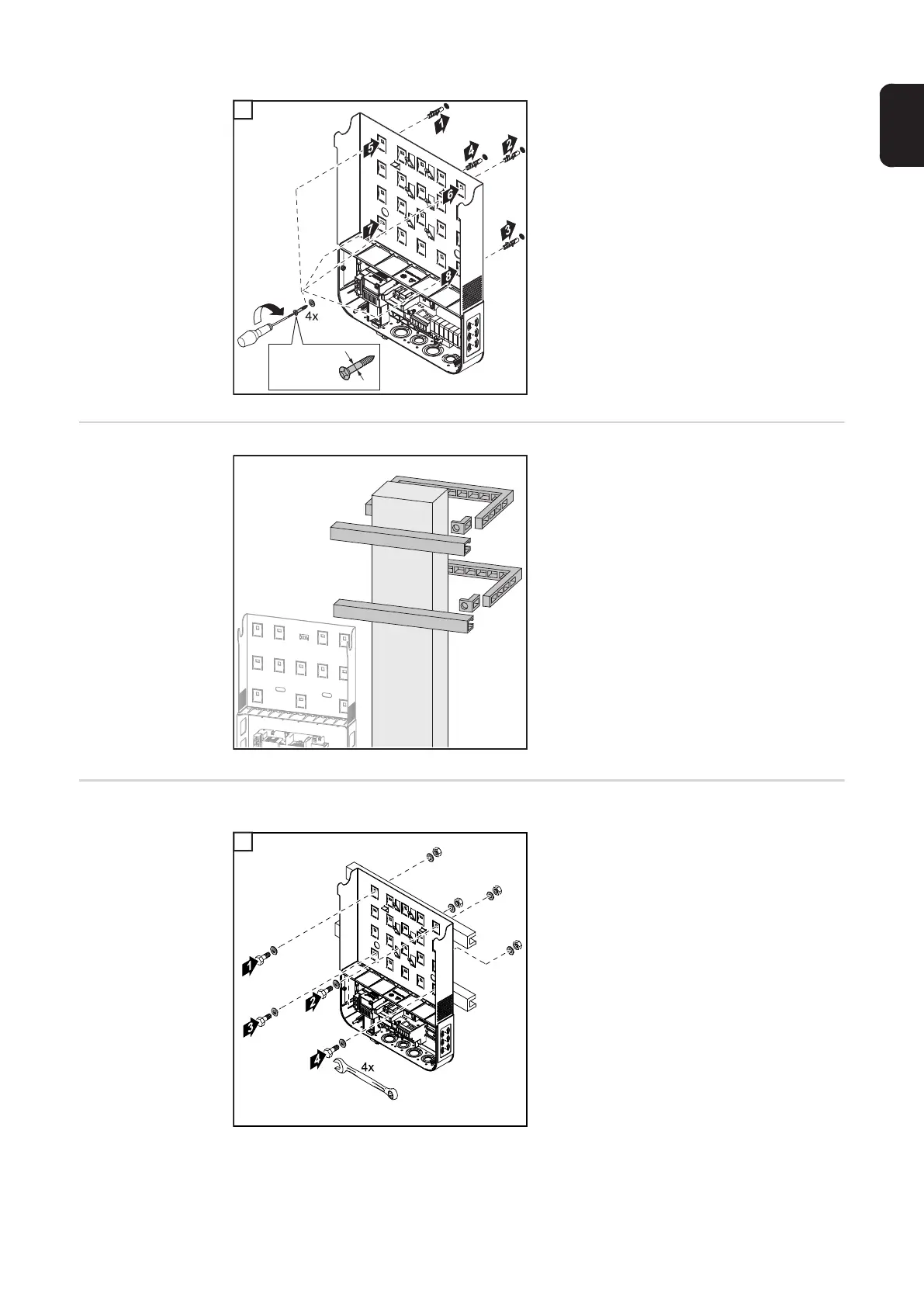

Installing the
Mounting Bracket
on a Mast or
Beam
For installation of the inverter on a mast or
beam, Fronius recommends using the "Po-
le clamp" (order no. SZ 2584.000) mast
mounting kit from Rittal GmbH.
The kit can be used to mount the inverter on
round or rectangular masts with the follo-
wing diameters: from 40 to 190 mm
(round mast),  from 50 to 150 mm (rectan-
gular mast)
Attaching the
mounting brack-
et to a metal carri-
er
The mounting bracket must be secured in at least four places.
1
Al / St
0.2 - 0.3 in.
(6 - 8 mm)
3
1

Fronius SYMO Series Specifications

General

MPPT Number	2
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Communication	WiFi, Ethernet, RS485
AC Nominal Voltage	3 x 230 V / 400 V
Output Voltage	3 x 230 V / 400 V
Warranty	5 years
