Fronius SYMO Series Installation Instructions

23
EN-US

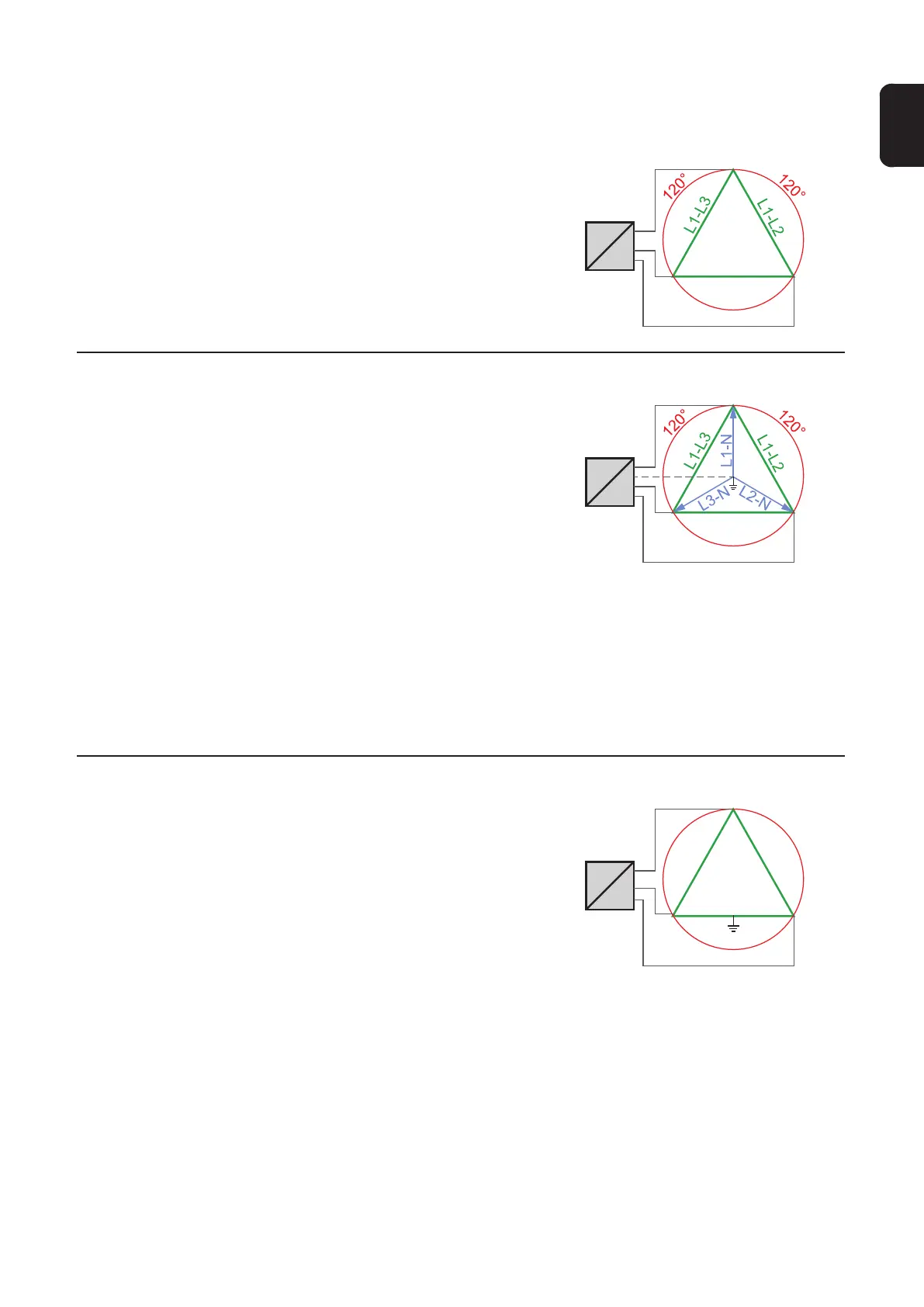

Suitable Grids
Delta
Setup:
208
240
220
BR
50 Hz
MG 3P
MG 1P
No neutral conductor
Nominal voltage:
208 V
240 V
220 V
220 V
50 Hz 208–240 V
Microgrid 208 V
Microgrid 240 V
Appropriate inverter:
Symo 10.0-3 208–240 /
12.0-3 208–240 / 15.0-3
208
WYE
Setup:
208 N
220 N
BR N
50 HN
HI2
480 N
440 N
50 HN
MG 3N
MG 2N
MG 5N
MG 6
CAL3
HI3
Neutral conductor required
Nominal voltage:
208 V
220 V
220 V
50 Hz 208–240 V
208 V
480 V
440 V
50 Hz 415 V
Microgrid 208 V
Microgrid 50 Hz 208–240 V
Microgrid 50 Hz 480 V
Microgrid 480 V
480 V
480 V
Appropriate inverter:
Symo 10.0-3 208–240 /
12.0-3 208–240 / 15.0-3
208
Symo 10.0-3 480 / 12.5-3
480 / 15.0-3 480 / 17.5-3
480 / 20.0-3 480 / 22.7-3
480 / 24.0-3 480
Hi-Leg Delta
Setup:
240 N
50 HN
MG 1N
MG 2N
HI1
Neutral conductor required
Nominal voltage:
240 V
50 Hz 208–240 V
Microgrid 240 V
Microgrid 50 Hz 208–240 V
208 V
Appropriate inverter:
Symo 10.0-3 208–240 /
12.0-3 208–240
=
~
L1
L2
L3
L2-L3
120°
=
~
L1
L2
L3
N
L2-L3
120°
=
~
L3
L1
L2
N
L1-NL2-N
L2-L3
L3-L1
90°
90°
180°

Fronius SYMO Series Specifications

General

MPPT Number	2
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Communication	WiFi, Ethernet, RS485
AC Nominal Voltage	3 x 230 V / 400 V
Output Voltage	3 x 230 V / 400 V
Warranty	5 years
