Fronius SYMO Series Installation Instructions

29
EN-US

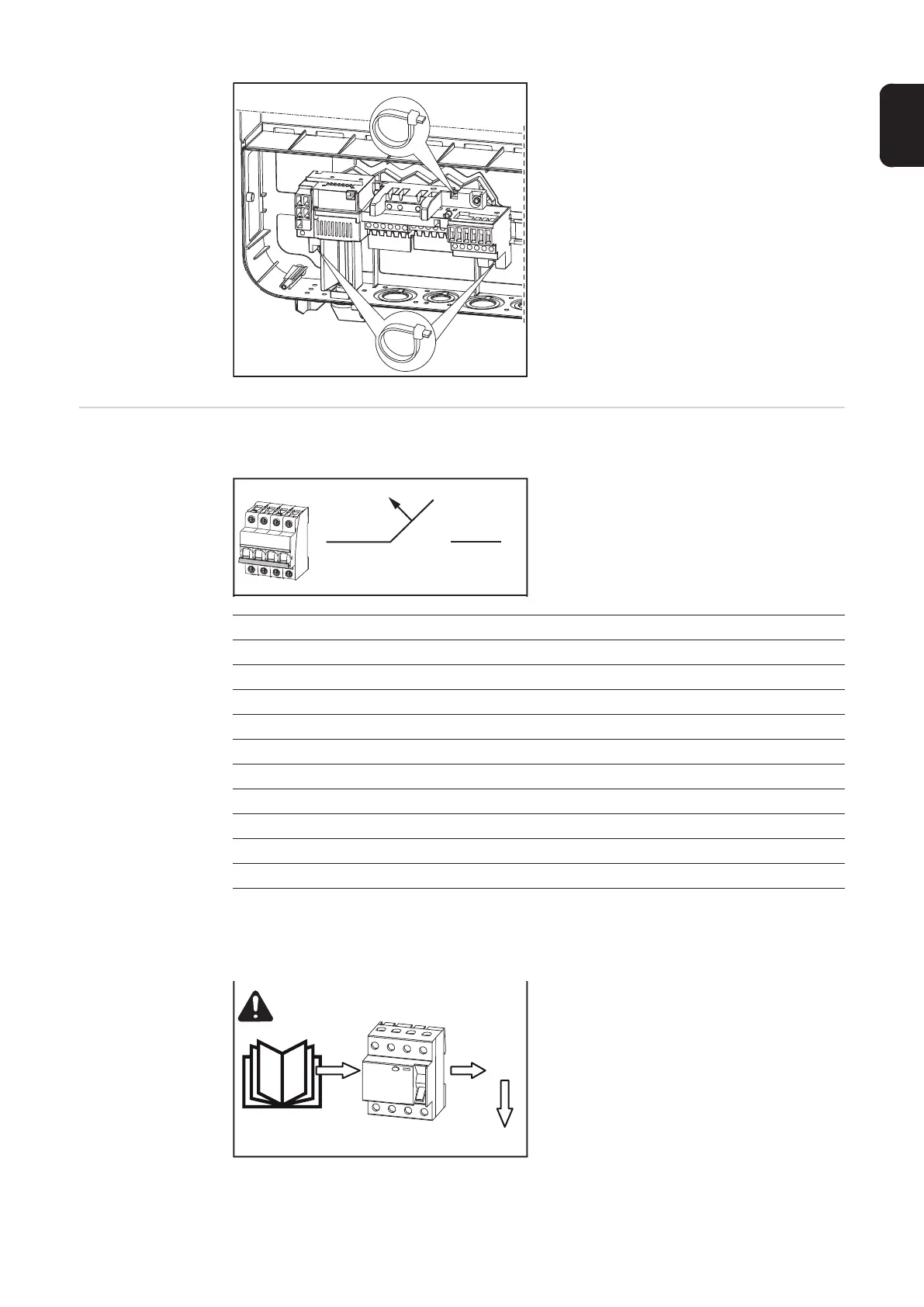

If excessively long AC or DC cables are laid
in loops in the connection area, fix the cab-
les to the designated eyelets at the top and
bottom of the connection block using cable
ties.
Maximum AC
fuse protection
Power circuit breaker
RCCB
Inverter Phases AC power Maximum fuse protection
Fronius Symo 10.0-3 208-240 3+N 10,000 W C 80 A
Fronius Symo 12.0-3 208-240 3+N 12,000 W C 80 A
Fronius Symo 10.0-3 480 3+N 10,000 W C 80 A
Fronius Symo 12.5-3 480 3+N 12,500 W C 80 A
Fronius Symo 15.0-3 480 3+N 15,000 W C 80 A
Fronius Symo 15.0-3 208 3+N 15,000 W C 80 A
Fronius Symo 17.5-3 480 3+N 17,500 W C 80 A
Fronius Symo 20.0-3 480 3+N 20,000 W C 80 A
Fronius Symo 22.7-3 480 3+N 22,700 W C 80 A
Fronius Symo 24.0-3 480 3+N 24,000 W C 80 A
max. 80 A
AC ~
RCD
National Standards
?
Type A
YES
I
ΔN
≥ 100 mA
§

Fronius SYMO Series Specifications

General

MPPT Number	2
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Communication	WiFi, Ethernet, RS485
AC Nominal Voltage	3 x 230 V / 400 V
Output Voltage	3 x 230 V / 400 V
Warranty	5 years
