Using for the first time
Using the Inverter
for the First Time
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in severe personal injury and damage to property.
► Only qualified staff are authorized to commission the inverter and only within the scope
of the respective technical regulations.
► Read the Installation Instructions and Operating Instructions before installation and
commissioning.

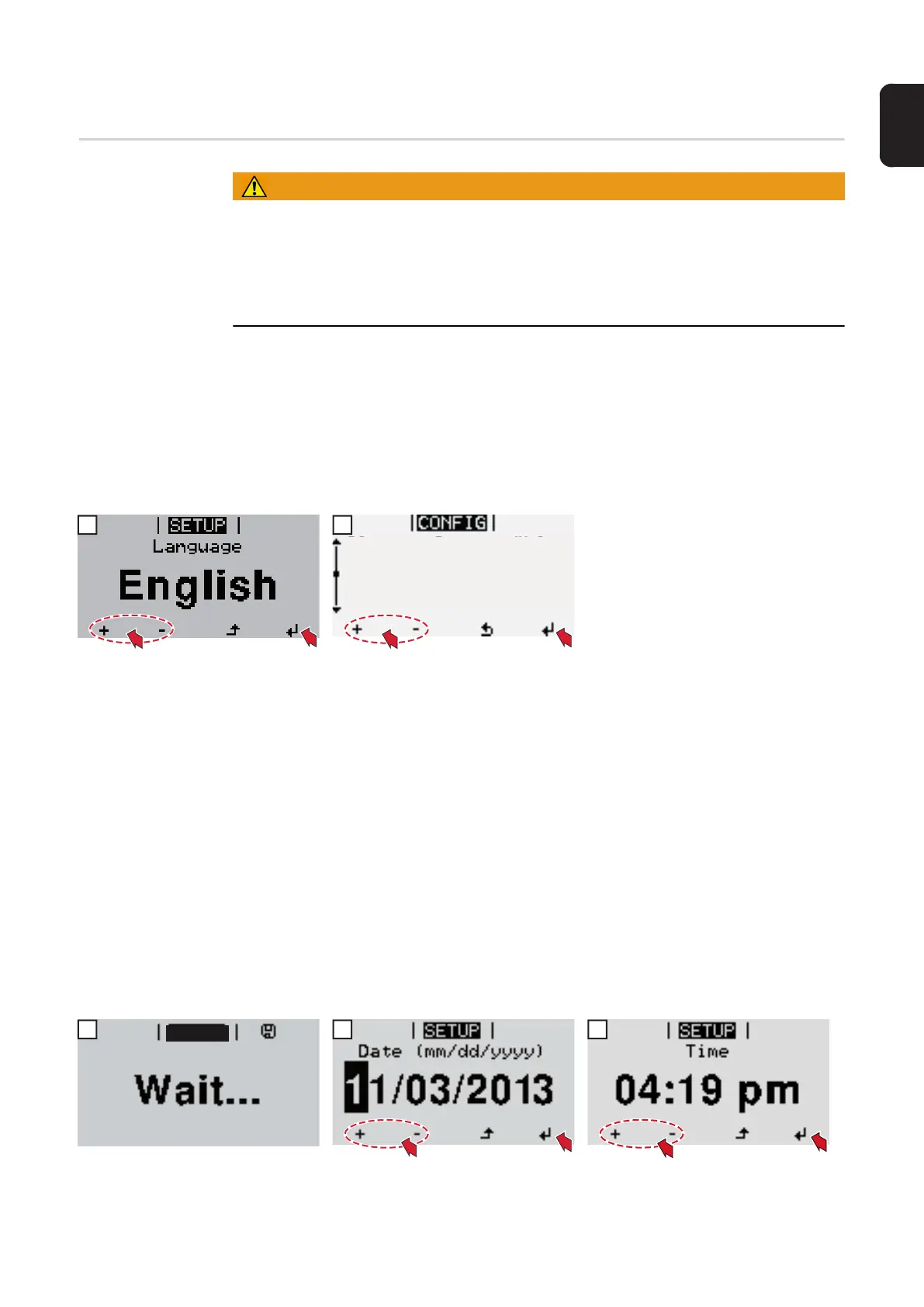

When starting up the inverter for the first time, various setup settings must be selected.
If setup is stopped before it is completed, it can be started again via an AC reset. An AC
reset can be carried out by switching the automatic circuit breaker off and on again.
The country setup can only be set when starting the inverter for the first time. If the country
setup needs to be changed at a later date, contact your technical support.
1 2
Setups:
Symo 208 – 240
240N (with NL-Mon)
240 (without NL-Mon)
208N (with NL-Mon)
208 (without NL-Mon)
220N (with NL-Mon)
220 (without NL-Mon)
50 HZ
50 HN (with NL-Mon)
BR N (Brazil 220 V with NL-Mon)
BR (Brazil 220 V without NL-Mon)
HI1 (Hawaii 240 V with NL-Mon)
HI2 (Hawaii 208 V with NL-Mon)
Symo 208 – 240
MG1N* (Microgrid 240V with NL-
Mon)
MG1P* (Microgrid 240 V without
NL-Mon)
MG2N* (Microgrid 220V without NL-
Mon)
MG3N* (Microgrid 208 V without
NL-Mon)
MG3P* (Microgrid 208 V without
NL-Mon)
Symo 480
480N (with NL-Mon)
440N (with NL-Mon)
50HN (with NL-Mon)
CAL3 (California 480 V with NL-
Mon)
HI3 (Hawaii with NL-Mon)
MG5N* (Microgrid 240 V with NL-
Mon)
MG6* (Microgrid)
* For more information about "Field Adjustable Trip Points" and "Special Purpose Utility-Interactive" see
www.fronius.com/QR-link/42042102339
3 4 5
1
2
1
S
e
l
e
c
t
C
o
u
n
t
r
y
1
2
50 Hz
International 50 Hz
2
CONFIG
Loading Country Setup
3
6x
7x
1
2
4
4x
5x
1
2
5
To Next Page
Loading...
