Frymaster 45 Series - Page 33

1-27

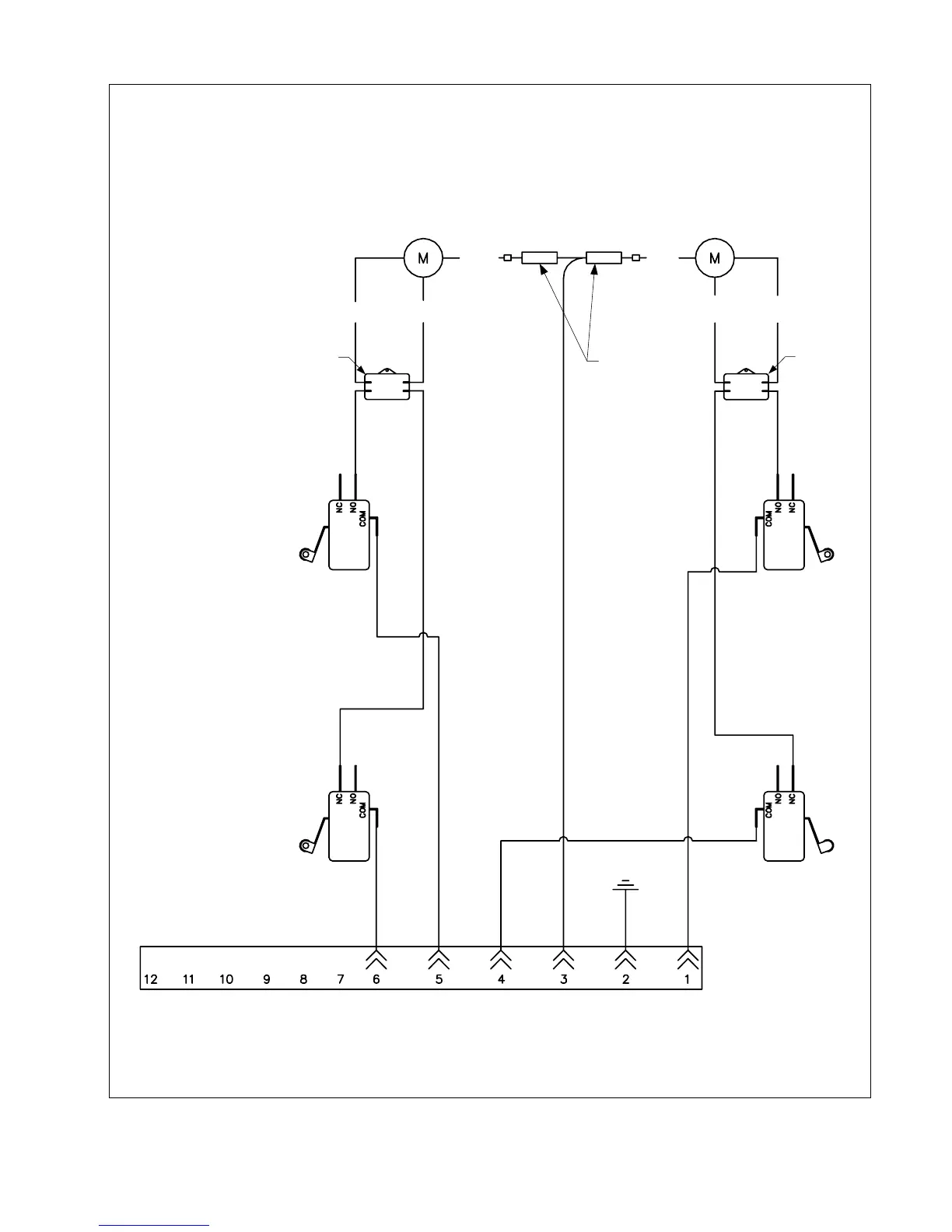

Modular Basket Lift Simplified Wiring Diagram
NOTE: References to right and left are from the rear of the fryer.
BLUE
ORANGE
RED
WHITE
GREEN
BLACK
BRN 1 RED 1
BLK
BRN 2 RED 2
UPPER
SWITCH
UPPER
SWITCH
LOWER
SWITCH
LOWER
SWITCH
BLK
LEFT SIDE
RIGHT SIDE
12.5 μ F
12.5 μ F
12.5 μ F
RESISTORS
(either 2 or 6
depending on
voltage and
date of
manufacture)
