2-8
CABINET ASSEMBLIES AND COMPONENT PARTS

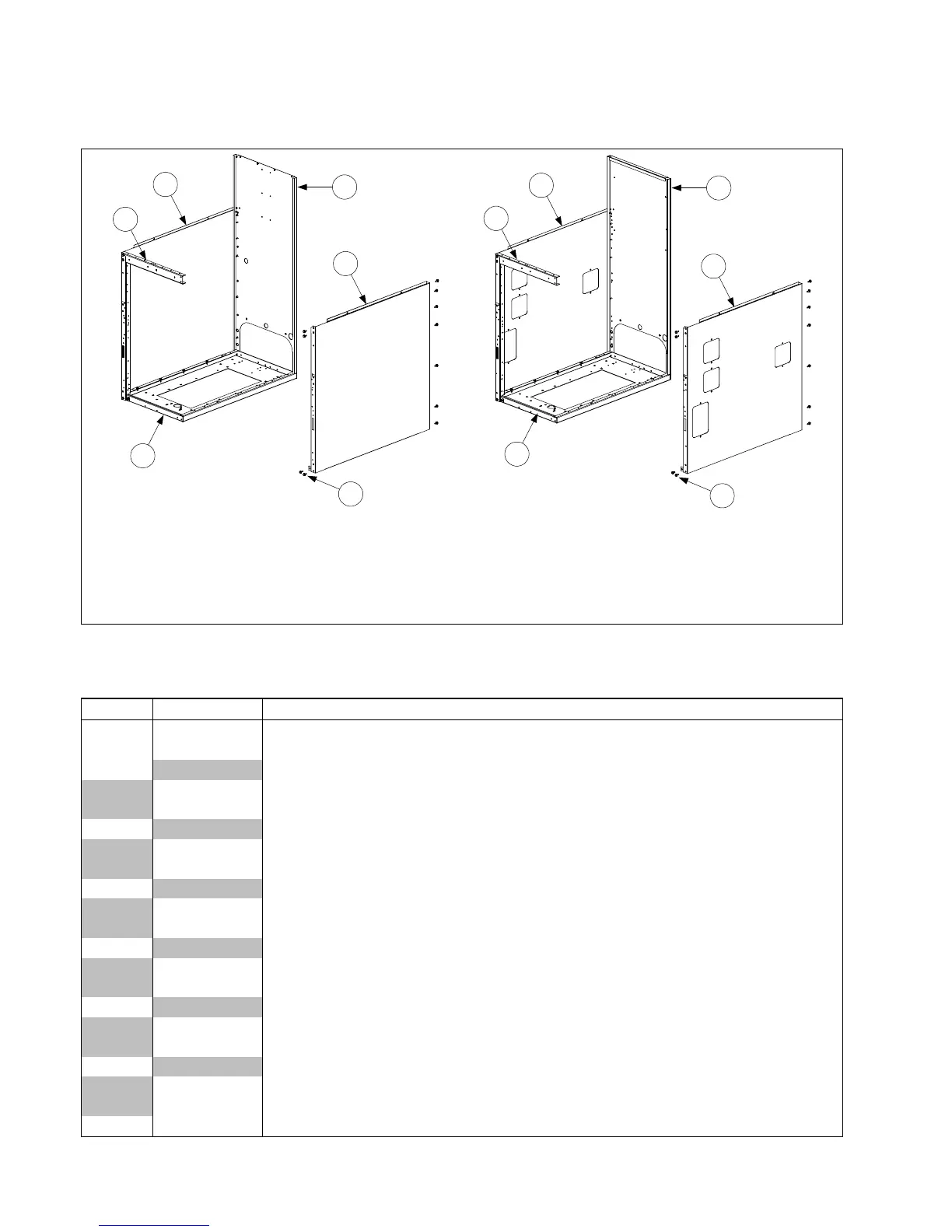

MJ145, F145 (Filter Ready), and Spreader Cabinet Assembly Components
3
4
1
1
2
2
5
7
8
6
9
9
NOTES: Fryer and spreader cabinet assemblies are identical except for the backs — spreader
backs do not have a formed edge at the top. Cabinet sides with access openings are used on
F145 units or on spreader cabinets placed in batteries of fryers equipped with built-in filtration
systems.
Spreader Cabinet
(Typical)
Fryer Cabinet
(Typical)
See Page 2-9 for
access opening covers.
NOTE: See Page 2-14 for casters, legs, and associated hardware, and Page 2-10 for holding station
pan components.
ITEM PART # COMPONENT
1 900-2568SP Base, Cabinet, One-Piece
2 900-4813SP Brace, Cabinet Top
3 Back, Spreader Cabinet
910-7213SP Stainless Steel
900-7213SP Aluminized Steel
4 Back, Fryer Cabinet
910-6983SP Stainless Steel
900-6983SP Aluminized Steel
5 Side, Left Cabinet w/o Access Openings
911-9323SP Stainless Steel
901-9323SP Enameled
6 Side, Right Cabinet w/o Access Openings
912-9323SP Stainless Steel
902-9323SP Enameled
7 Side, Left Cabinet w/Access Openings
911-9324SP Stainless Steel
901-9324SP Enameled
8 Side, Right Cabinet w/Access Openings
912-9324SP Stainless Steel
902-9324SP Enameled
9 826-1374 Screw, #10 X ½-inch Hex Washer Head (package of 25)
