Frymaster 45 Series - Frypot Assemblies and Component Parts

2-29

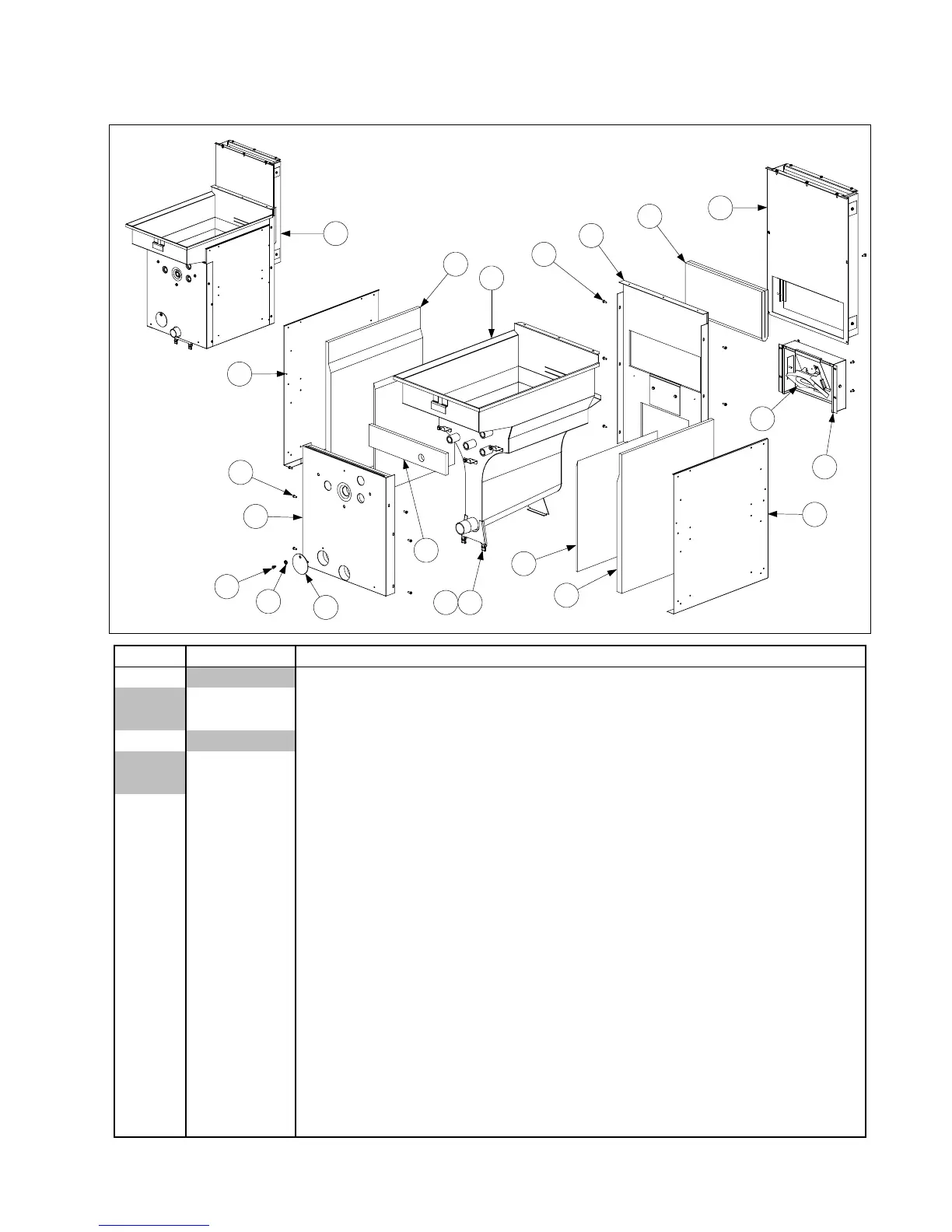

FRYPOT ASSEMBLIES AND COMPONENT PARTS
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
1817
ITEM PART # COMPONENT
1 Frypot Assemblies, Complete (Items 2, 3, 5, 6, and 10-18)
106-2549SP Stainless Steel
806-3810SP Cold Rolled Steel
2 Frypot Assembly, without Insulation
823-3887SP Stainless Steel (integral component of 106-2549SP)
823-0921SP Cold Rolled Steel (integral component of 806-3810SP)
3 806-5778SP Flue Deflector Box Assembly,
4 810-0424 Deflector, Rear Burner (integral component of Item 3)
5 806-5567SP Flue Assembly
6 806-1095SP Front Baffle Assembly
7 809-0409 Screw, Pilot Light Cover (integral component of Item 6)
8 810-0647 Holder, Pilot Light Cover Screw (integral component of Item 6)
9 900-1090 Cover, Pilot Light (integral component of Item 6)
10 806-5566SP Rear Combustion Chamber Panel Assembly
11 900-6441 Panel, Combustion Chamber Side
12 812-0249 Insulation, Frypot Side, Outer Layer
13 812-0248 Insulation, Frypot Side, Inner Layer
14 816-0602 Insulation, Kaowool Blanket, ½ X 14 X 4 (trim to fit)
15 812-0269 Insulation, Kaowool Blanket, ½ x 14 x 14
16 826-1374 Screw, #10 X ½-inch Washer Hex Head (Pkg. of 25)
17 809-0173 Clip, Tinnerman
18 809-0170 Screw, #14 X ¾-inch Slotted Pan Head
