Frymaster 45 Series - Page 37

1-31

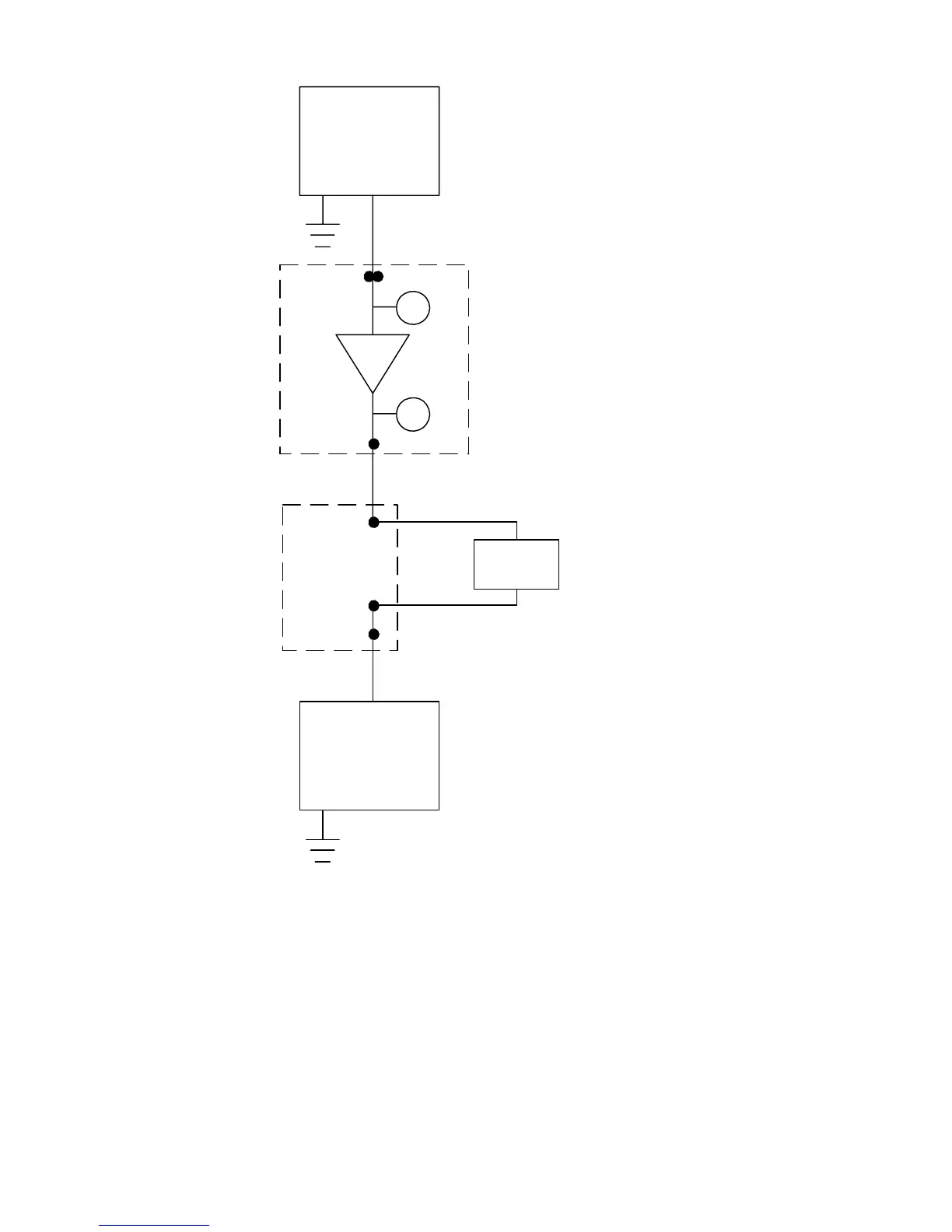

24 VOLT CIRCUIT
ON UNITS WITH INTERFACE BOARDS
24V
XFMR
K3
LED
24V
24V
INTERFACE
BOARD
J1-6
LED GV
20-PIN
TERMINAL
BLOCK
OPTIONAL
DSS
10
19
20
GAS
VALVE
NOTE: On units not equipped
with a drain safety switch, a
jumper connects pins 10 and 19.
