2.4.3.2 Element Tube Assemblies contd.
ITEM PART # COMPONENT
1 108-0297SP Tube Assembly RE Element, Full-Vat
2 108-0298SP Tube Assembly RE Element, Dual-Vat
3 810-3246 Bushing and Tube Assembly, Dual-Vat
4 108-0315 Bracket Assembly, LH Element Tube Support
5 108-0316 Bracket Assembly, RH Element Tube Support
6 220-0122 Plate, Element Tube Support Inner
7 220-0123 Plate, Element Tube Support Outer
8 106-7651 Bracket Assembly, LH Upper Spring (use 106-6569 for 17kW)
9 106-7652 Bracket Assembly, RH Upper Spring (use 106-6570 for 17kW)
10 810-2992 Tube, Full Vat Element Mounting
11 810-2993 Bushing, Tube End Teflon
* 826-2598 Kit, Tilt Switch
* 807-4742 Switch, Long Lever High Temp
* Not illustrated.

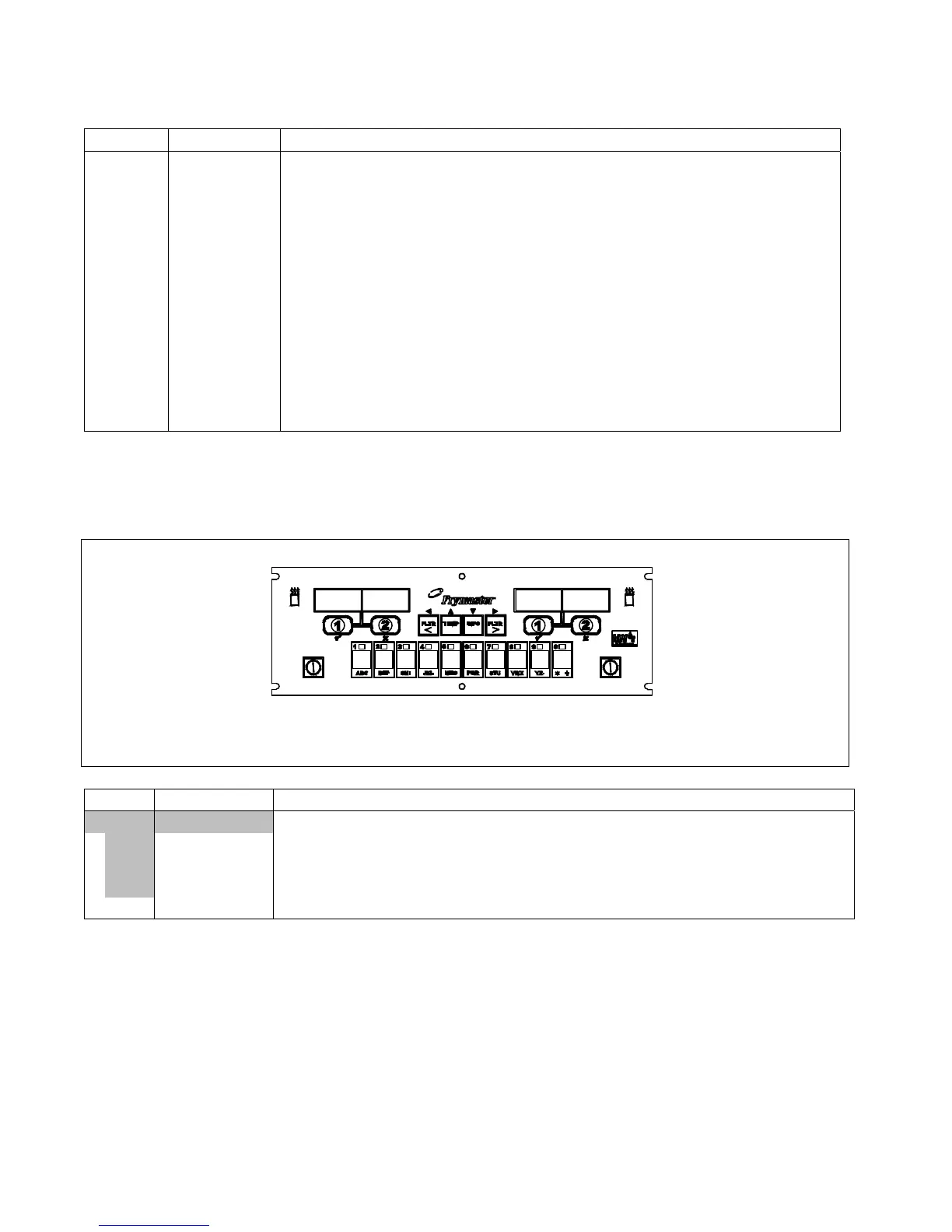

2.4.4 Computers
ITEM PART # COMPONENT
Replacement Computer
√ 108-1295 Non-CE Domestic M3000 (For use in US, Canada, Mexico and all
other non-CE countries)
√ 108-2970 CE M3000 (For use in European CE countries)
* 807-4403 M3000 Speaker SMT
* Not illustrated.
√ Recommended parts.
NOTE: See Page 2-16 for Interface Board to Computer Wiring Harness
