2.11 Wiring Connectors, Pin Terminals and Power Cords
ITEM PART # COMPONENT
Power Cords
* 807-0154 100/120V–15A 3-wire, w/grounded plug
* 807-4317 100/208/240V-16A 3-Wire with Plug LOV CE
* 807-1685 100/208/240V–18A 3-wire, w/o plug
* 807-4316 120V 5-wire, w/grounded plug LOV
* 807-3817 208/240V 3-Phase 4-wire w/grounded plug
*
807-5105 208/240V 3-Phase 4-wire w/grounded plug 105” CE 4 battery or
larger
Connectors and Tools

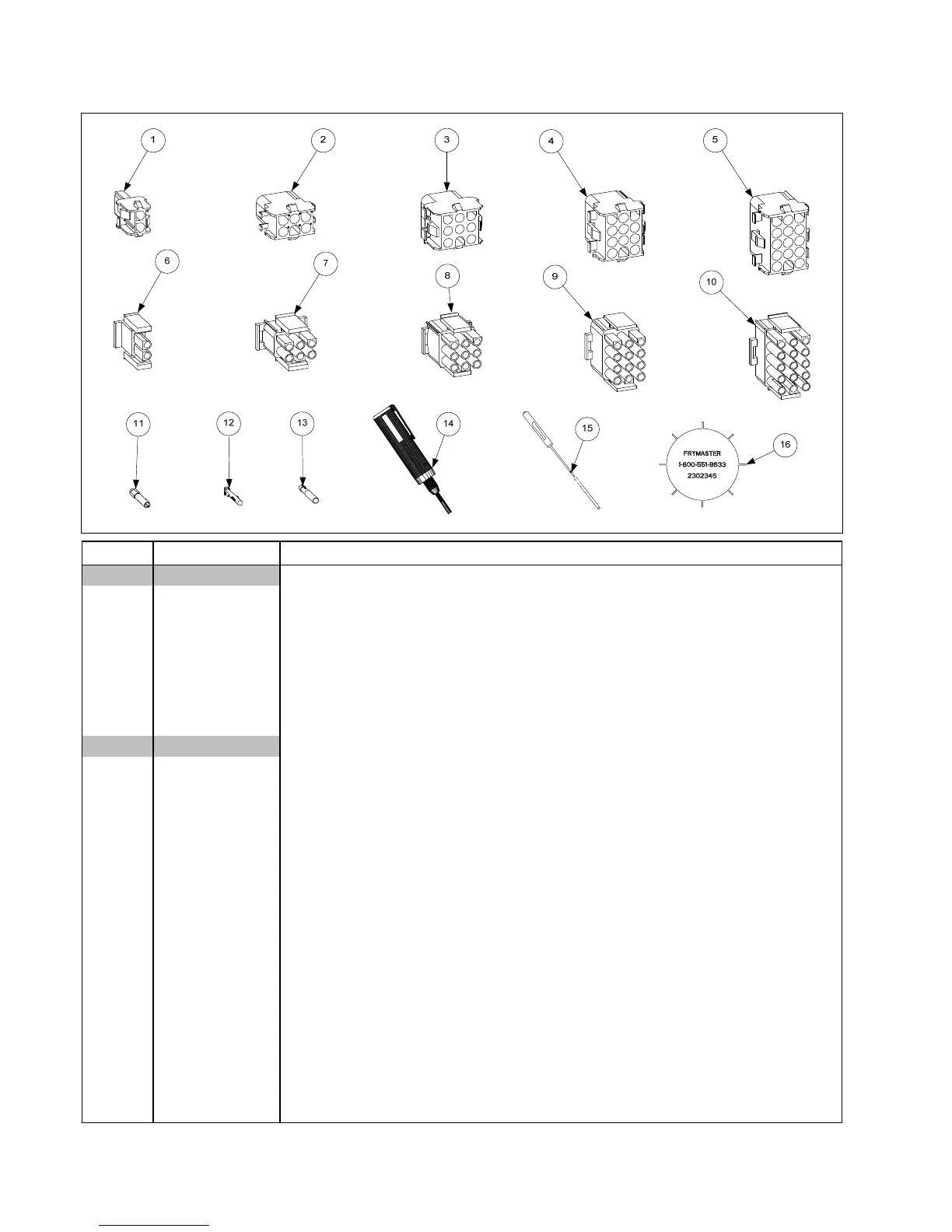

1 807-1068 2-Pin Female
2 807-0158 6-Pin Female
3 807-0156 9-Pin Female
5 807-0159 12-Pin Female
5 807-0875 15-Pin Female
6 807-1067 2-Pin Male
7 807-0157 6-Pin Male
8 807-0155 9-Pin Male
9 807-0160 12-Pin Male
10 807-0804 15-Pin Male
11 826-1341 Terminal, Female Split Pin (Pkg of 25)
12 826-1342 Terminal, Male Split Pin (Pkg of 25)
13 807-2518 Plug, Mate-N-Lock (Dummy Pin)
14 807-0928 Extract Tool Pin Pusher
15 806-4855 Pin Pusher Screwdriver Assembly
16 230-2345 SMT Pin Extractor
* 807-4660PK SMT Pin Service Repair Kit
* Not illustrated.
