Frymaster LOV BIELA14 - ATO Pump Assembly

2-27

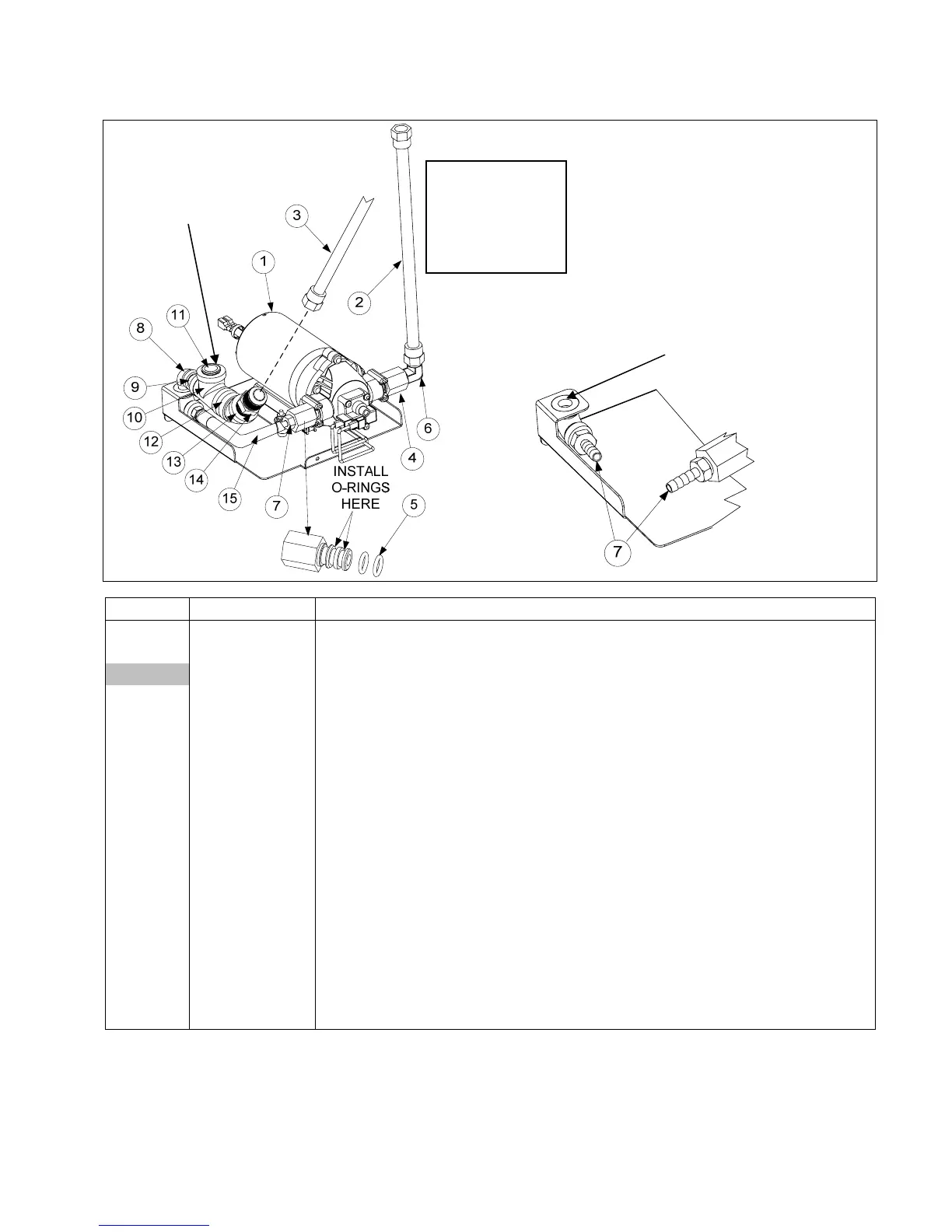

2.9.4 ATO Pump Assembly
ITEM PART # COMPONENT
√
1 108-0639 Pump, Shurflo 24VAC
2 810-3265 Flexline, ½” OD x 24-inch (Out to oil return manifold)
810-3591 Flexline, ½” OD x 8-inch (Out to oil return manifold two battery only)
* 810-0667 Check valve, ½ NPT 1 PSI
3 810-1069 Flexline, ⅝” OD x 29.5-inch (In from RTI fresh oil solenoid) Domestic
units only
4 810-3666 Fitting, Shurflow Pump
5 816-0782 O-Ring, Viton #111
6 813-0940 Elbow, ¼” NPT x ⅜ Flare
7 810-3770 Fitting, ¼” NPT Male Barb
8 813-0543 Elbow, ¼” NPT BM
9 813-0838 Nipple, ¼” NPT BM Close
10 813-0530 Tee, Reducing ½” x ¼” x ½”
11 813-0304 Bushing, ½” x ¼” BM Flush
12 813-0022 Nipple, ½” x Close NPY BM
13 813-0345 Elbow, ½” BM 45°
14 810-1668 Adaptor, Male ⅝” OD x ½”
15 812-2083 Hose LOV Fryer JIB (Cut and attach to item 7 with a ty wrap)
* 811-1166 Hose, Silicone Braided 18” (sold by the foot)
* Not illustrated.
√ Recommended parts.
Item 2 connects
to a check valve
before going
into the oil
return manifold.
Domestic Units
JIB hose
connects here.
International Units
JIB hose
connects here.
