Frymaster LOV BIELA14 - Automatic Top off Board Assembly

2-26
2.9.2 JIB Cap and Pick Up Assembly cont.
ITEM PART # COMPONENT
3 823-7738 Inlet, Oil Reservoir Tube
4 816-0870 Clamp

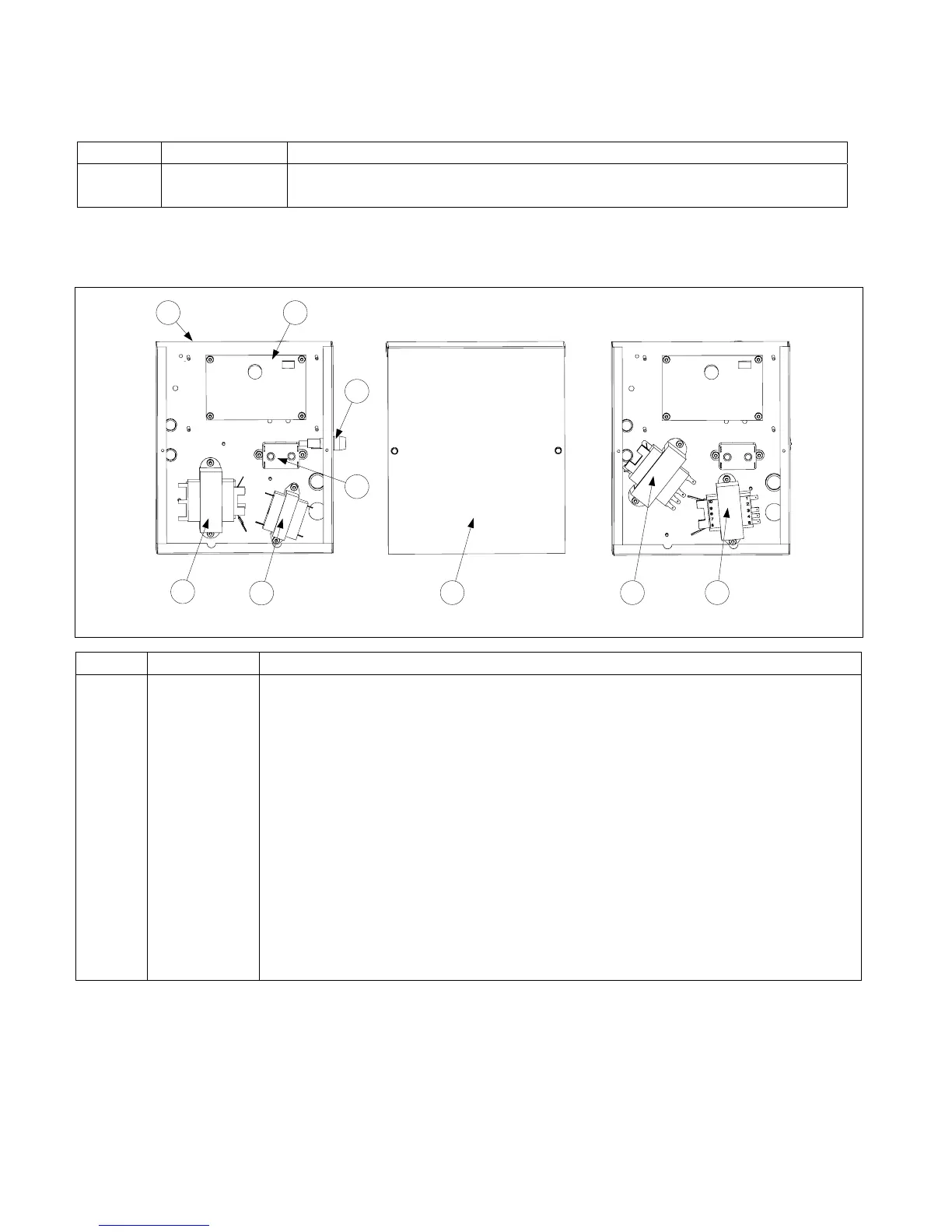

2.9.3 Automatic Top Off Board Assembly
5
31
4
6 7
8
9
2
ITEM PART # COMPONENT
1 108-0653 Box, Assembly Auto Top Off Board
2 220-5679 Cover, Top Off Board Box
√
3 108-1279 PCB Board, Automatic Top Off
* 108-1302
PCB Board, LON Works 120V (Must be pre-programmed before
shipping)
* 108-1303
PCB Board, LON Works 230-240-250V (Must be pre-programmed before
shipping)
√
4 807-2181 Transformer, 100-120V/24V 62VA
√
5 807-0855 Transformer, 120V 50/60-12V 20VA
√
6 807-2180 Transformer, 208-240V/24V 50VA
√
7 807-2191 Transformer, 208/230/240 -12V 30VA
8 807-1321 Holder, Fuse AGC Panel Mount ¼”
√
* 807-1597 Fuse, 3A Slow-Blow
√
9 807-0012 Relay, 18AMP 1/3 HP 24V Coil (Top off pump)
* Not illustrated.
√ Recommended parts.
NOTE: Top off boxes for vats 4 and 5 have either item 4 or item 6, both have item 3.
108-0507 208-240V Assy
108-0506SP 120V Assy
