Function Menu
3rd Generation Focus Assist

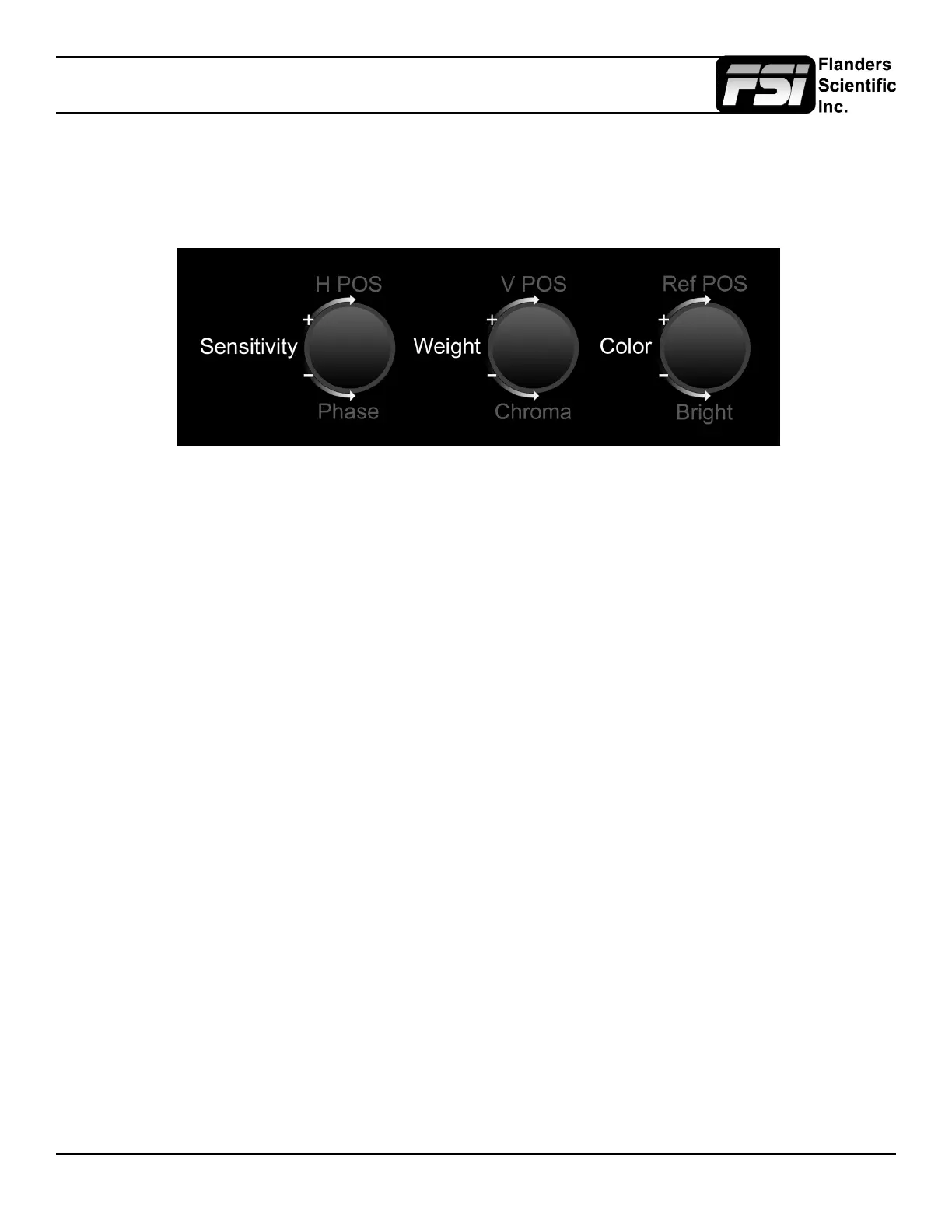

When activated this feature will highlight in focus areas with a trace color. The sensitivity of the focus assist feature can be
adjusted using the H POS rotary knob. The weight (transparency) of the focus assist feature can be adjusted using the V
POS Rotary knob. The color of the focus assist trace can be adjusted using the REF POS rotary knob. Select from White,
Black, Red, Green, Yellow, Blue, Magenta, and Cyan.
C-Log, S-Log, S-Log2, S-Log 3 and BMD-Log Modes (Also selectable via Video Menu)
These modes allow for easier on-set monitoring of uncorrected C-Log, S-Log, S-Log2, S-Log3, or BMD Cinema Camera
Film Mode Output by roughly normalizing the footage. For all Log modes there is both a Standard and Full selection. The
Standard selection is suitable for most applications, but does clip highlights to allow for a brighter overall image. The Full
mode is best used for scenes with extremely wide latitude or scenes that are just very bright overall. Full mode preserves
the entire native latitude of the signal (nothing is clipped), but this can result in a rather dark image in many applications.
We provide both for this reason and you can quickly toggle between them as needed for different applications by assigning
these modes to function keys. These modes should only be used to offer on set viewers a rough normalization of the footage
to give them an idea of what the content might look like as a starting point in post production. In other words, it provides you
with a helpful tool to show on set viewers something that does not look ‘at’. These modes are not a replacement for full 3D
LUT transforms and not a substitution for proper color correction in post production applications. For more advanced Log
mode normalization use a custom 3D DIT LUT.
On-Screen Tally
When activated this function will generate an on-screen box that mirrors the status of the physical tally on the monitor’s
bezel. This can be particularly useful in applications where the physical tally may be obscured.
Zoom
This function zooms in on the incoming source until the entire screen is lled. This is strictly a zooming function and does not
alter the native aspect ratio of the source to ll the screen. When viewing a 4:3 source in Zoom mode on a 16:9 display the
aspect ratio of the visible video will remain 4:3 though the entire 16:9 screen will be lled. Essentially the Zoom mode results
in viewing a 16:9 section of the 4:3 source and is most useful when viewing a letter-boxed SD source on a widescreen
display so that the letter-boxing is not shown and only the video within the letter-boxing is present.
DSLR Zoom
This function is designed to be used with many popular DSLR cameras that have preview/record monitoring output in 1080
& 480 resolutions. When DSLR Zoom is active the 16:9 area that will be recorded is scaled to ll the screen. On DSLR
cameras that switch from 1080 to 480 while recording the DSLR Zoom can be left on and the same correct aspect zoom will
be maintained regardless of whether the DSLR is in preview or recording mode. While DSLR Zoom is active the markers
may also be turned on and will be correct relative to the 16:9 video that will be captured to the camera’s memory card. Please
note it may be necessary to toggle the viewing mode preference (Info button on many DSLRs) to ll the screen correctly.
