Appendix C - Ethernet Connectivity (DM)
DM Series Monitors have unique capabilities when connected via ethernet including the ability to interface with Pomfort’s
Live Grade Pro software to manipulate LUTs in real time on the monitor without the use of additional hardware such as a
standalone LUT box. The ethernet connection can also be used for remote control.
Connecting to a Network
To connect a DM Series Monitor to a network connect an ethernet cable to the monitor’s LAN port.
DHCP Settings
DM Series Monitors are DHCP compatible and will obtain an IP address from your network’s DHCP server if available. You
can view the monitor’s IP address in the System Status menu. DHCP can be set to OFF in the System menu, allowing you
to assign a static IP address and subnet mask.
Note: When changing static IP addresses, you must power cycle the monitor to set the new IP address.
Direct Connection
DM Series Monitors can also be connected directly to your PC or Mac via ethernet connection. To directly connect you must
assign static IP addresses to your monitor and to your computer using the same subnet mask. The IP addresses must be
different for each device.
When connecting directly, you should disable other network connections (including WiFi) on your computer.
Suggested Settings:
Computer IP: 192.168.001.002
Subnet Mask on Computer and Monitor: 255.255.255.0
Monitor IP: 192.168.001.003
Gateway IP setting on monitor: 192.168.001.001
Note: When changing static IP addresses, you must power cycle the monitor to set the new IP address. If the
monitor fails to obtain an IP address or disconnects, try toggling DHCP On and Off to reset the network settings.

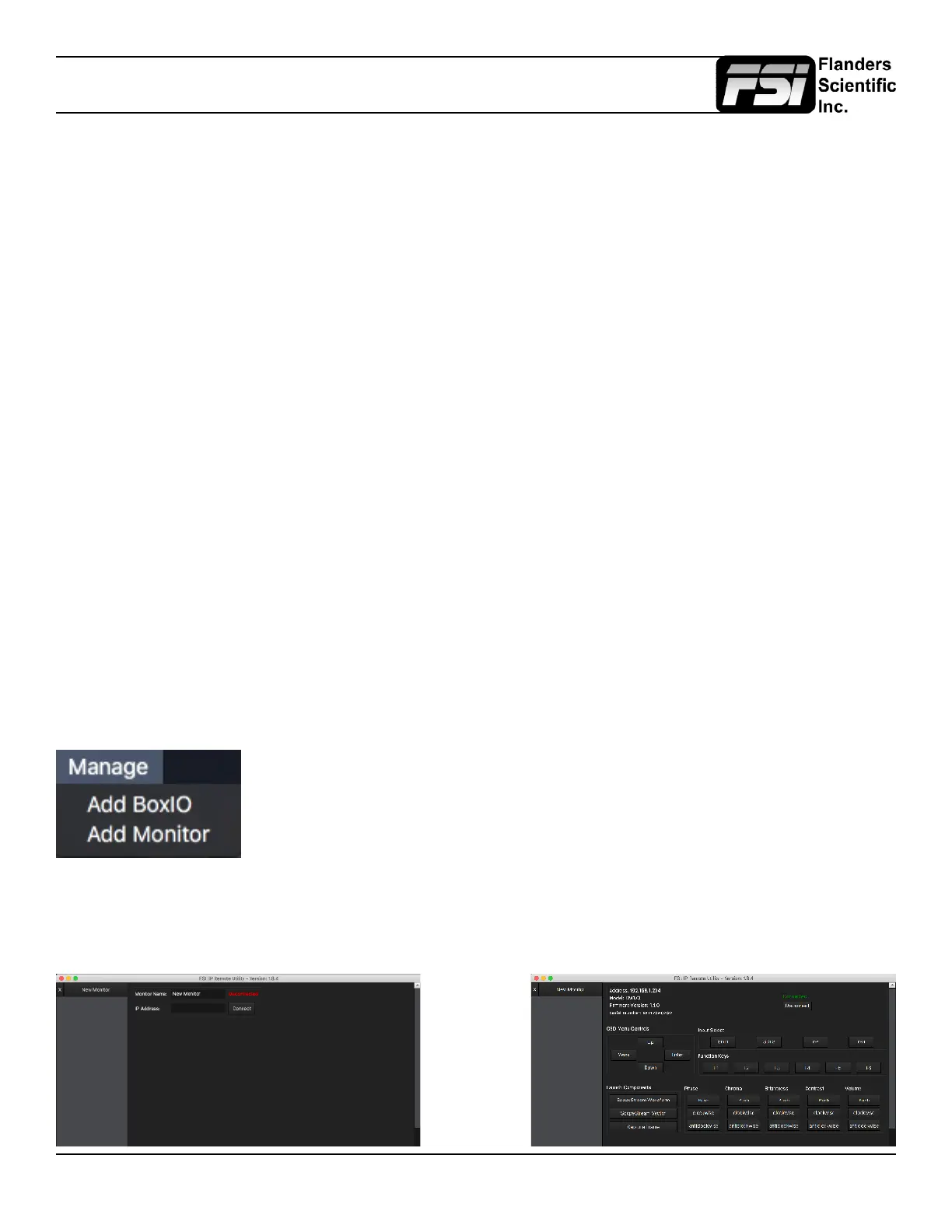

Remote Control
DM Series Monitors can be controlled remotely using FSI’s IP Remote Utility, available free at FlandersScientic.com.
From the Manage menu, select “Add Monitor” to add a monitor control tab to your IPRU
window.
Enter the IP address of the monitor you would like to control in the IP Address eld and
press connect.
You can control multiple monitors or BoxIO by adding additional tabs.
