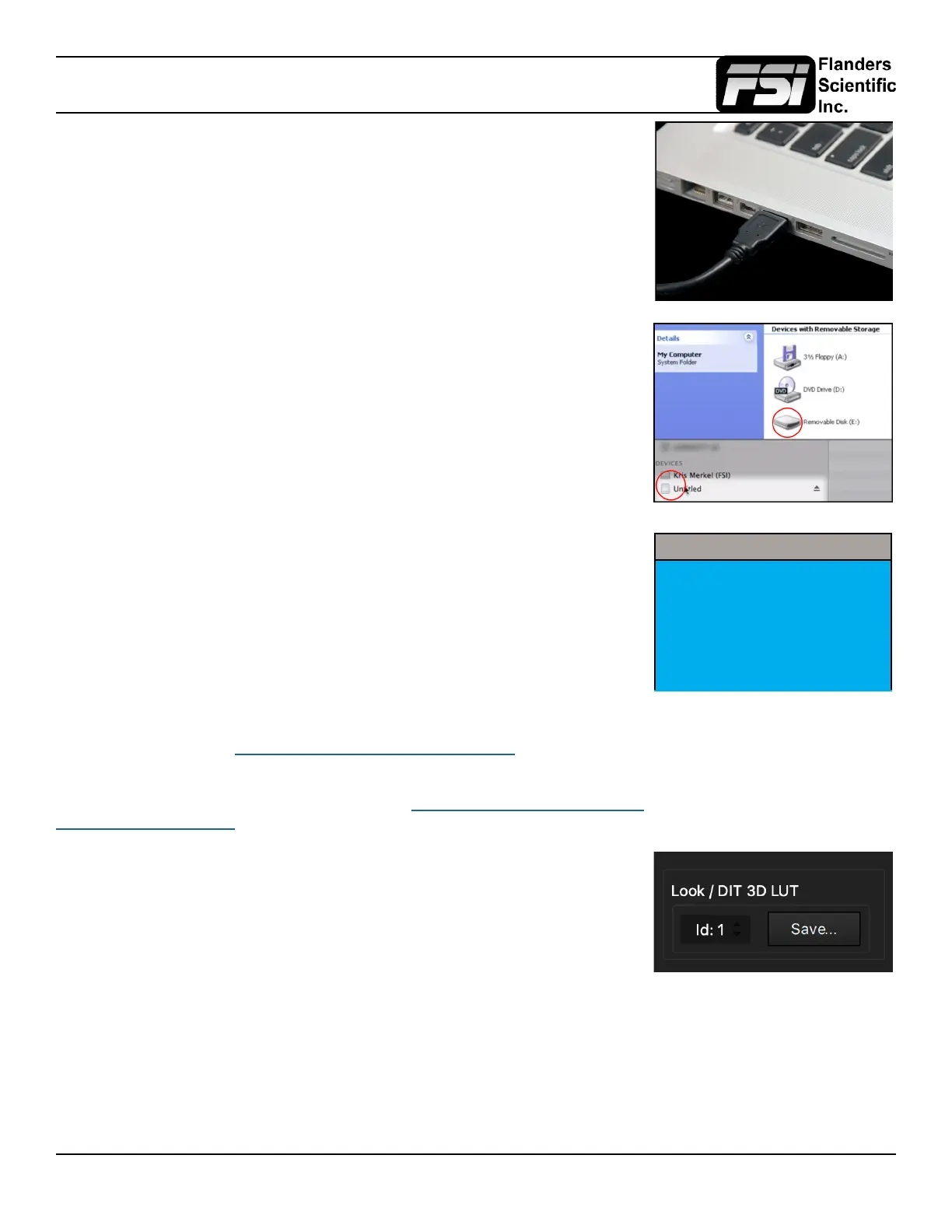

Connect the FSI update cable (USB for DM Series) that came with your monitor to an
available USB port on your computer and the back of your monitor.
After a short time, the computer should recognize the FSI monitor as a mass storage
device, viewable in Mac’s Finder or PC’s My Computer.
Drag and drop the ditXX.dat le(s) you created to the monitor.
All 16 DIT LUTs can be transfered at one time.
Appendix A - DIT / Look LUTs (DM)
Select Menu > Color Management > Update LUT to save the LUT(s).
Once saved the DIT LUTs can be turned on/off by assigning DIT 3D LUT to a function
key.
You can also simply use the up and down arrow keys while the DIT LUT function is
active to toggle between 3D DIT LUTs you have loaded to the monitor.
NOTE: When a DIT LUT is active it will impact the Scope and Measurement
feature values accordingly to reect your DIT / Look LUT’s impact on the signal.
This is in contrast to the simpler Log mode selections found on the Video menu,
which will not change scope or measurement values even when active. The one
exception is the Real Time Scopes function, this WFM/Vector feature will continue
to analyze just the incoming signal and is not impacted by LUT application.
In addition to the programs mentioned above FSI also offers a .cube to FSI.dat format
converter on our website: https://andersscientic.com/lut/mac.php
Pomfort’s LiveGrade Pro can also be used to permanently save Look / DIT LUTs to
the monitor’s memory via an ethernet connection: https://andersscientic.com/vlog/
index.php?article=021617
As of version 1.9.1, FSI’s IP Remote Utility can also be used to save Look / DIT LUTs to
DM series memory over ethernet instead of USB. Formatting must still be in FSI’s .dat
LUT format, but unlike USB based LUT loading, the LUT le can be given any name
you like as the save-to memory position on the monitor is directly selected from the
IPRU and does not rely on le name (e.g. dit01.dat) to determine the desired memory
slot position. To save a LUT to one of the 16 memory positions rst connect to the
monitor using the standard IPRU connection instructions (Appendix C). Then from the
DM series monitor tab select the ID position you want to save to in the Look / DIT LUT
prompt, then select SAVE. A dialog box will open asking you to select the desired LUT
le. Once selected your LUT will be saved to the specied ID position.
Color Management
Luminance 100
LUT Bypass None
Update LUT
Red Gain 50
Green Gain 50
Blue Gain 50
