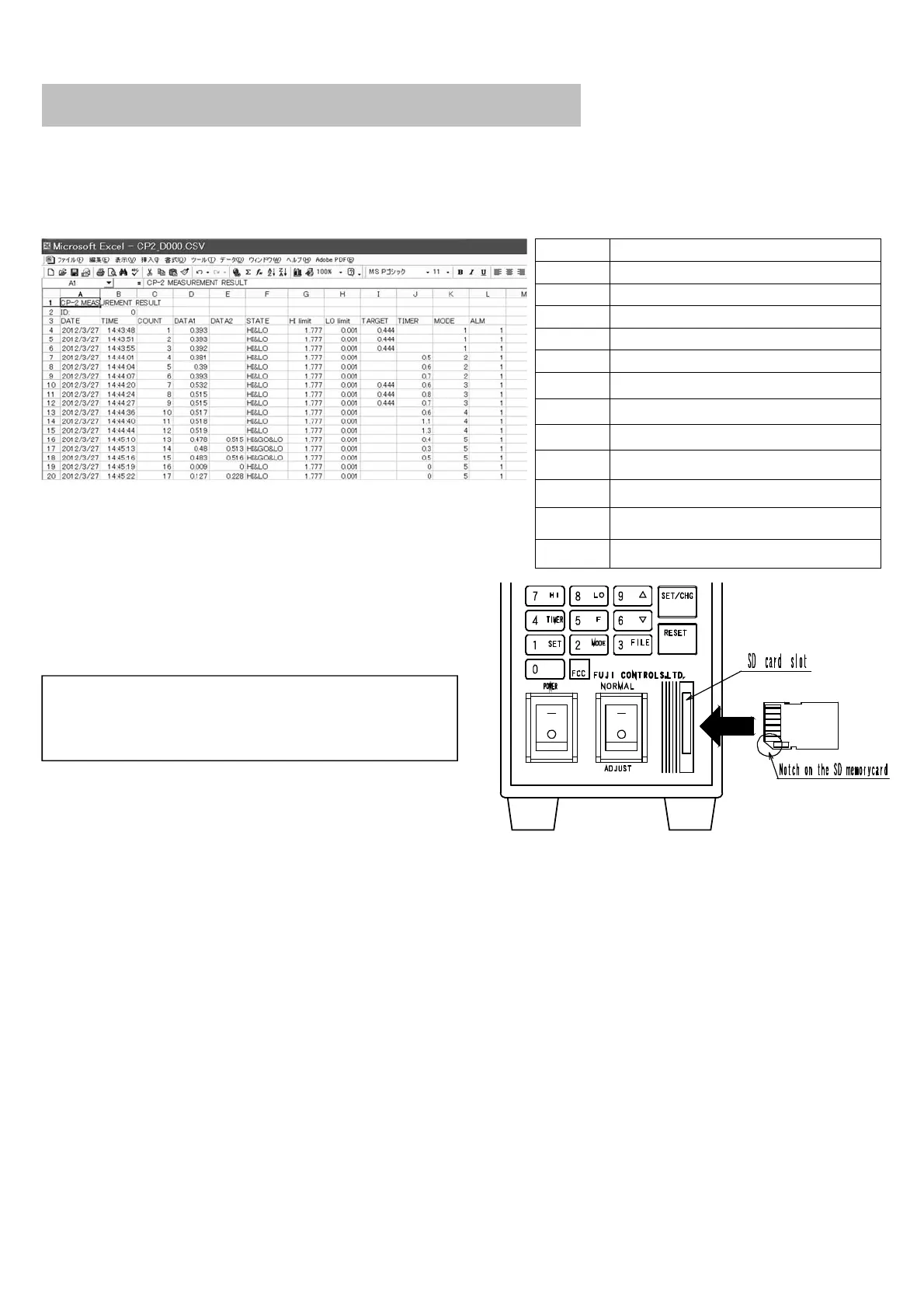

Communication Record to SD Memory Card
1.Outline
At the completion of load measurement, measured results and set value can be recorded in the SD memory card.
It generates CSV type data file.
Item Contents
Date YY/MM/DD
TIME Hr. Min. Sec.
COUNT Operated quantity
DATA1 Load value compared and judged
DATA 2 Final load value
STATE Result of compared judgment
Hi limit Compared value at upper-limit
Lo limit Compared value at lower-limit
TARGET Pressurized time
MODE Control mode
ALM Alarm indication
ID Production number (four decimal places)
2.Insertion of SD memory card
As shown at right, insert the card by paying attention for the
direction of notch provided to the SD memory card in the SD
card slot located to the main body until the click noise is heard.
3.Taking out of SD memory card
Please make sure that no lamp is turning on (If on, it is in
processing).
Push the SD memory card once to the insertion slot, and then remove your hand from the card. The SD card will come out a
bit from the slot after the clicking noise. By pinching SD memory card with fingers to this side and take the card out.
4.Data file to be generated in the SD memory card: Number of renewed measured data (Initial value: 1000 times)
Following data file will be generated in the SD memory card after the completion of the lord measurement.
CP-2D***.CSV (***: 000 to 199)
The measured results and set value are filed one after the other in this data file.
In the case that the number of filed data has exceeded 200, it forcibly save the data by overwritten on the oldest data file,
however it may have a possibility to take time for couple of seconds.
In average, the time for writing data in the card takes about 1 second. (It is depending upon the condition) Please always
maintain the measuring tact time for 1 second or more.
The measurement is possible while writing in the SD memory card though, if the writing of previous data in the card is not
completed at the end of measurement, the next measurement cannot be started till the completion of previously measured
data is written in.
SD memory card specification
Do not carry out the measurement for 5 seconds after
insertion of the card. There may be the case of error
indication.
