Equipment features:
Press controller of CP-2 type is equipped with press control circuits and load control function for the air-press. When press-fit
operation or crimping operation is carried out in the stamping process, this control device is possible to measure, compare,
judge the load, and simultaneously control the loads, which are applied to the product. Press controller is available with various
types of control modes. Please select appropriate one that matches to the operation.

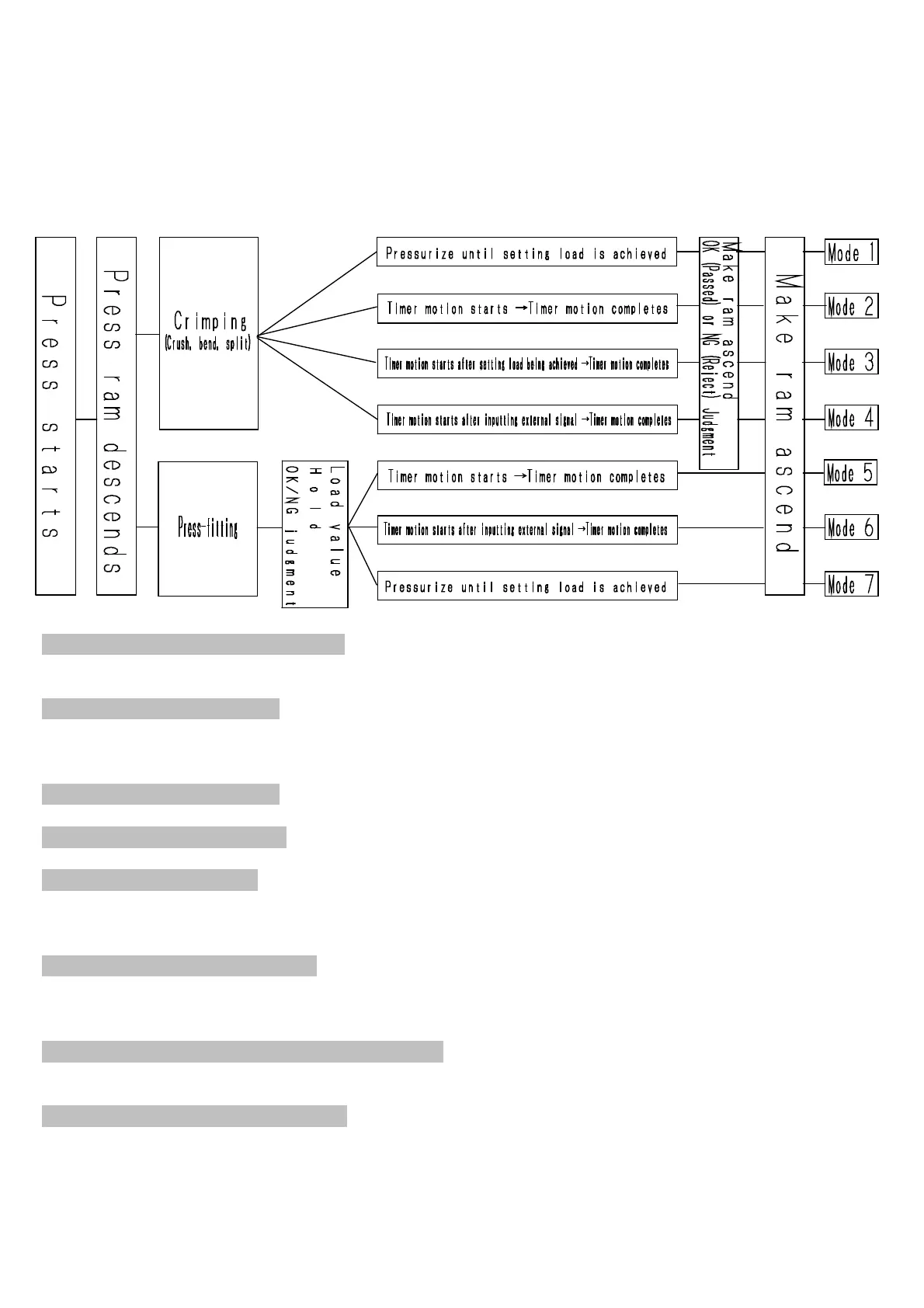

Modes and control details are as follows:
Mode 1: Constant load pressurizing control
This mode makes press ram ascend instantly after reached to the set load.
The OK/NG judgment of the applied loads is carried out on the actual load just after ascending.
Mode 2: Crimping timer control 1
This mode makes press ram ascend after the set time has past.
Timer starts the operation by the signal at the cylinder lower limit position. OK/NG judgment for the applied loads is
carried out simultaneously when press ram ascends.
Mode 3: Crimping timer control 2
This is an alternate mode of mode 2. The timer starts operation when reached to the set load.
Mode 4: Crimping external control
This is an alternate mode of mode 2. The timer starts operation when controller receives external signal as the trigger.
Mode 5: Press-fit timer control
OK/NG judgment of the press-fit loads is carried out first.
After the OK judgment with the input of measurement completion signal, the timer starts operation and the press ram
ascends after the set time has past.
Mode 6: Press-fit press external control
This is an alternate mode of mode 5.
If OK judgment is made after the press-fitting, the timer starts the operation when controller receives external signal as
the trigger.
Mode 7: Post-press-fit constant loads pressurizing control
This is an alternate mode of mode 5.
If OK is judgment is made after the press-fitting, press ram ascends immediately when reached to the set loads.
Mode 9: Press control circuit non-operation
In this mode, only measurement or comparison judgment is carried out in press-fitting or crimping operation,
but press control circuit does not operate.
